27 Inch Industrial-Grade Monitor
Fill out the form below to request a quote.
- 27” Full HD Resolution Color LCD Monitor: 1920 x 1080 (1080p/60)
- Wide Viewing Angle: 178˚ x 178˚
- Video Inputs: VGA, HDMI, and Composite (BNC)
- Dual Voltage: 24VDC and 100-220VAC
- Auto Re-Start After Power Loss
- Can Be Customized to Meet Your Needs
- 3-Year Warranty

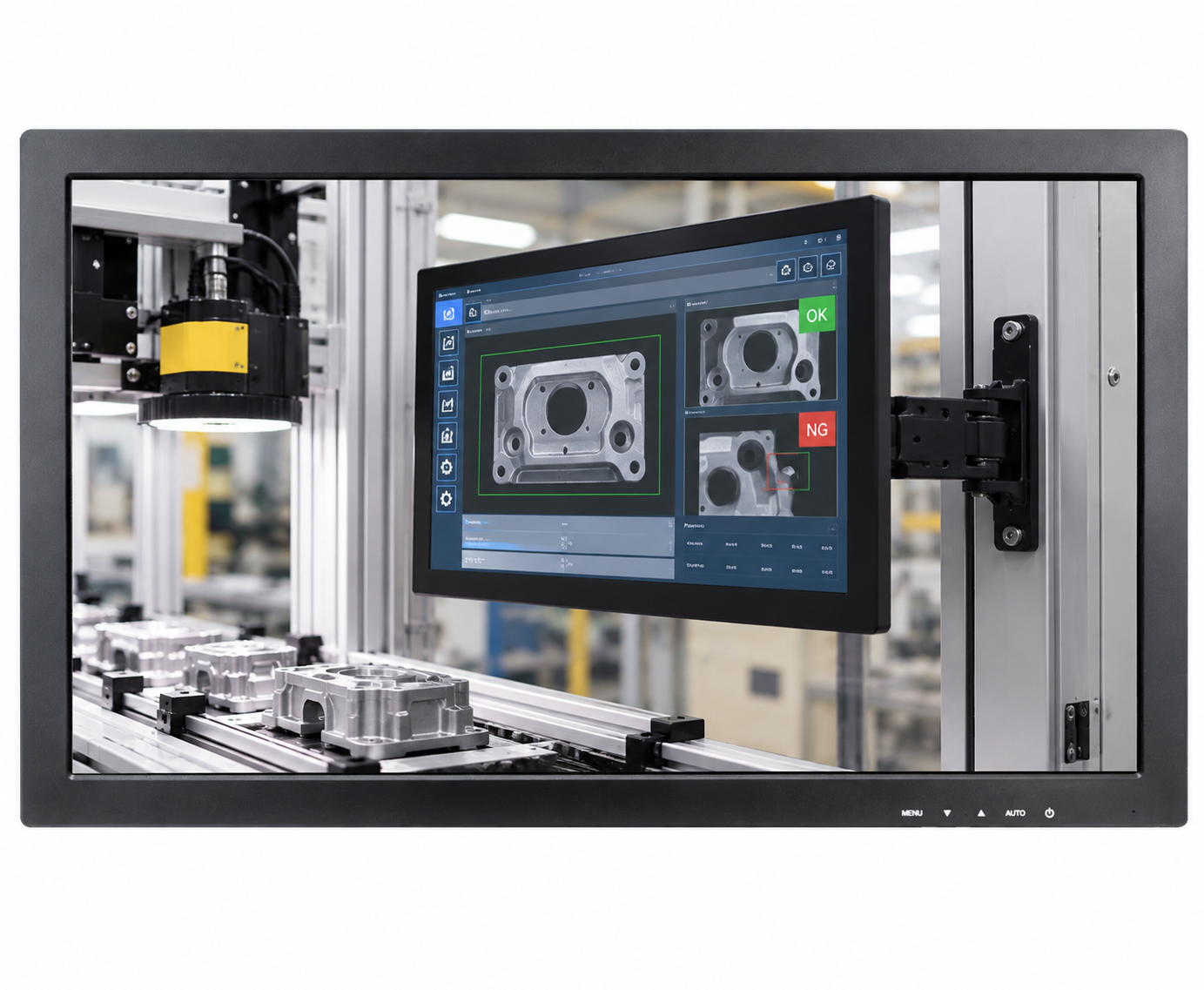

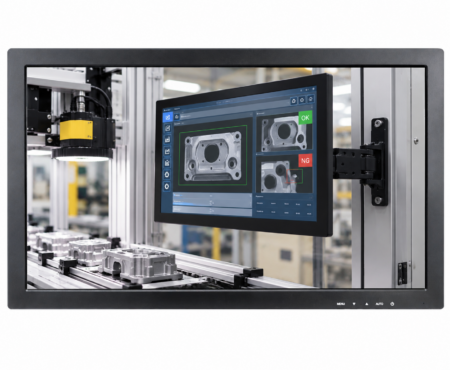

INDUSTRIAL-GRADE 27 INCH MONITOR
The VM-27 Series are 27 inch monitors. These industrial-grade LCD monitors offer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications. They offer full HD resolution: 1920 x 1080 (1080p/60). It is a 16:9 aspect ratio display series. The VM-27 Series monitors offer VGA, HDMI, and Composite (BNC) digital and analog video input capabilities. An extensive list of available OEM options enables you to customize the VM-27 Series to your specific needs.
DESIGNED FOR 24/7/365 OPERATION
The VM-27 Series are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, military, food & beverage, machine vision systems, museums, surveillance, and simulator applications. View all of our standard brightness industrial monitors for indoor operation. We also offer our 27″ monitors/ touch screens as Medical Grade Display solutions.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by features important to you. View similar sized monitors 21″+, or filter only 24VDC Monitors. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs . We will help provide crystal-clear images for your projects. Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 12′′ Waterproof Touch Panel-Mount monitor you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||27” Color LCD; LED Backlights|
|Display Resolution||1920 x 1080 (1080p/60, Full HD)|
|Viewable Area||23.53” (W) x 13.23” (H) (597.6 x 336.15 mm)|
|Pixel Pitch||0.311 mm|
|Viewing Angle||178° x 178° (V)|
|Response Time||12 msec|
|Control||OSD (On-Screen DIsplay) via Front Pushbuttons or IR Remote|
|Video Inputs||VGA, HDMI, Composite BNC Inputs;
1 Composite BNC Output
|Power Requirement||Dual Voltage 24 VDC and 100-240 VAC (2.1 mm Pigtail included)|
|Power Consumption||36W (1.5 Amps 24VDC; 0.327 Amps 110VAC)|
|VESA Mount Holes||100 x 100 and 100 x 200 VESA Hole Pattern|
|Operating Temperature||32° to +122° F (0° to +50° C)|
|Storage Temperature||-4° to +140° F (-20° to +60° C)|
|Shock||50 G (20 msec, ½ sine)|
|Vibration||1.5G RMS 10-200 HZ|

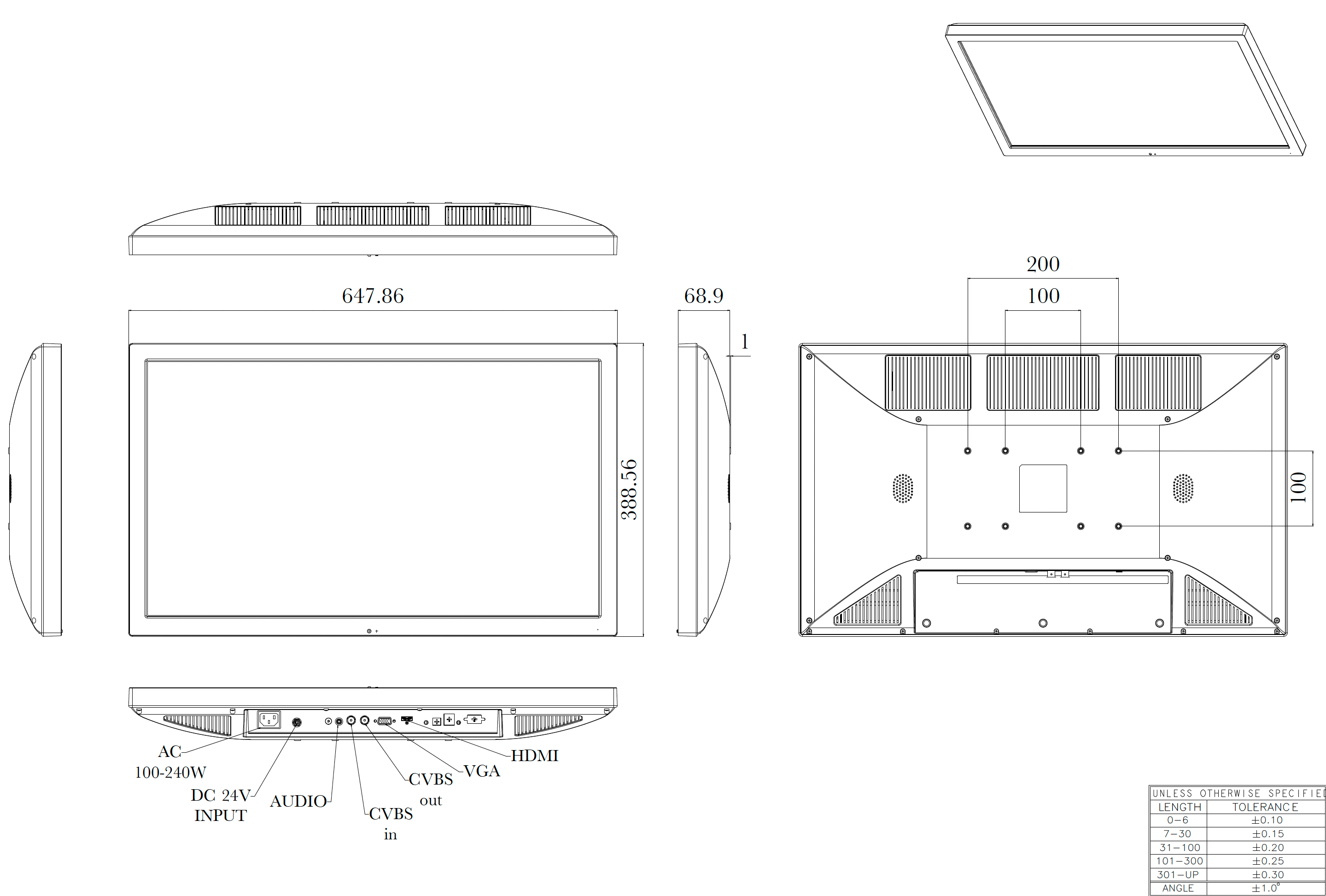

|Dimensions||25.38” (W) x 15.25” (H) x 2.63” (D)
(644.65 x 387.35 x 66.8 mm)
|Approvals||TüV, FCC, RoHS, CE|
|Weight||10.8 lbs. (4.89 Kg)|
Specifications subject to change without notice.
- 120 VAC Power Cord
- 24 VDC Power Pigtail (2.1mm Connector)
- VGA Cable
- Tabletop Base (TTB-27)
- Powder-Coated Steel Enclosure (VM-27U-M)
- Wall Mount Brackets
- Sunlight Readable, 1,000 nits Brightenss (SRM-27 Series)
- Waterproof Enclosure (VMW-27R-SS)
- Open-Frame Configuration
- Other Customer-Specific Modifications
