- 1,000 nits Brightness
- Produces Clear, Sharp Images Even in Direct Bright Sunlight
- NEMA 4X Waterproof Panel Mount Enclosure
- 1920 x 1080 (Full HD) Resolution
- Ambient Light Sensor Adjusts Screen Brightness Automatically
- Protective Anti-Reflective Glass
- Auto Re-Start After Power Loss
- Can Be Customized to Meet Your Needs
- 3-Year Warranty

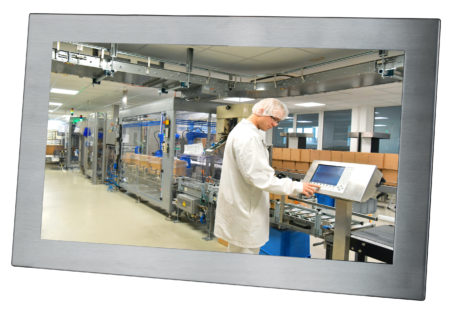

17.3″ OUTDOOR WATERPROOF SUNLIGHT READABLE MONITOR
The SRMWP-17.3R are 17.3″ outdoor panel mount monitors. They feature at least 1000 nits screen brightness and a 16:9 aspect ratio. We design this 17.3″ outdoor waterproof monitor specifically for use in direct sunlight. Because of the high brightness of the SRMWP-17.3R, they are also perfect for other high ambient-light conditions. These weather proof monitors utilize state-of-the-art LED backlights. 1,000 nits brightness is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even in direct, bright sunlight on the face of the screen.
RUGGED WEATHER PROOF LCD MONITOR
These 17.3″ 1000 nit displays are not only bright, but extremely rugged. For example, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged Stainless Steel NEMA 4X panel mount enclosure ensures maximum shock and vibration resistance for this rugged 1000 nit monitor. The enclosure is rated NEMA 4X Waterproof front, with galvanized rear clamping bracket.
WATERPROOF PANEL MOUNT MONITOR
This monitor features a rugged waterproof stainless steel panel mount enclosure. Flush mount this unit into any panel, cabinet, door or wall. It is impervious to liquids, rust and corrosion. It is rated NEMA 4X, and features protective Anti-Reflective glass over the LCD panel. There’s also a handy guide on how to install a flush mount lcd monitor. This weather proof monitor will easily withstand the elements outdoors. It is also ideal for wash-down environments. For this reason, it is widely used in industrial and food processing plants.
WIDE RANGE OPERATING TEMPERATURES FOR OUTDOOR MONITOR
We design the SRMWP-17.3R to operate in nearly any environmental conditions. This 17.3″ outdoor panel mount display performs in frigid conditions or blazing heat. These sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to 32°F (0°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 158°F (70°C). The rugged stainless steel enclosures are waterproof. We design them for panel mount or flush mount applications. The 17.3″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
MONITORS DEPLOYED OUTDOORS WORLDWIDE
Our 17.3″ outdoor panel mount monitors have been deployed in a wide range of demanding industries. For example, industries such as military, law enforcement, manufacturing and entertainment will benefit. 17.3″ outdoor waterproof monitors are also deployed in the inspection, marine, oil & gas sectors. Industrial and transportation industries also utilize this popular model. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service for your high bright outdoor display.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST OUTDOOR DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting the ideal equipment, or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own specific search requirements. See our full line-up of industrial-grade Sunlight Readable and Daylight Readable monitors and touch screens. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. Our full range of waterproof monitors and touch screens are available for any outdoor use. Shop by size 13.3″ – 19″ Monitors , see our full line of Panel Mount Monitors, or see all monitors that operate on 24VDC. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||17.3” Color LCD; LED Backlights|
|Display Resolution||1920 x 1080 (Full HD)|
|Viewable Area||15.03” (W) x 8.425” (H) (381.888 x 214.01 mm)|
|Pixel Pitch||0.1989 mm|
|Viewing Angle||160°(H) x 140°(V)|
|Response Time||25 Trf|
|Control||OSD (On-Screen Display) via Rear Pushbuttons|
|Video Inputs||VGA, HDMI|
|Power Requirement||12-24 VDC|
|Enclosure||Panel-Mount; Stainless Steel, Galvanized Rear Clamping Bracket|
|Enclosure Rating||NEMA 4X; Front: IP65|
|Operating Temperature||+32˚ to +158˚F (0˚ to +70˚C)|
|Vibration||1.5G RMS 10-200Hz|
Specifications subject to change without notice.
