15.6” Waterproof Panel Mount Monitor
Fill out the form below to request a quote.
- Painted Steel Panel-Mount Enclosure
- Waterproof NEMA 4/IP 65 Front Face
- Video Inputs: VGA, HDMI, HD-SDI, Composite BNC Loop-Thru
- Lockable On-Screen Display (OSD) Controls
- Protective Anti-Reflective Glass
- Auto Re-Start After Power Loss
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- 3-Year Warranty

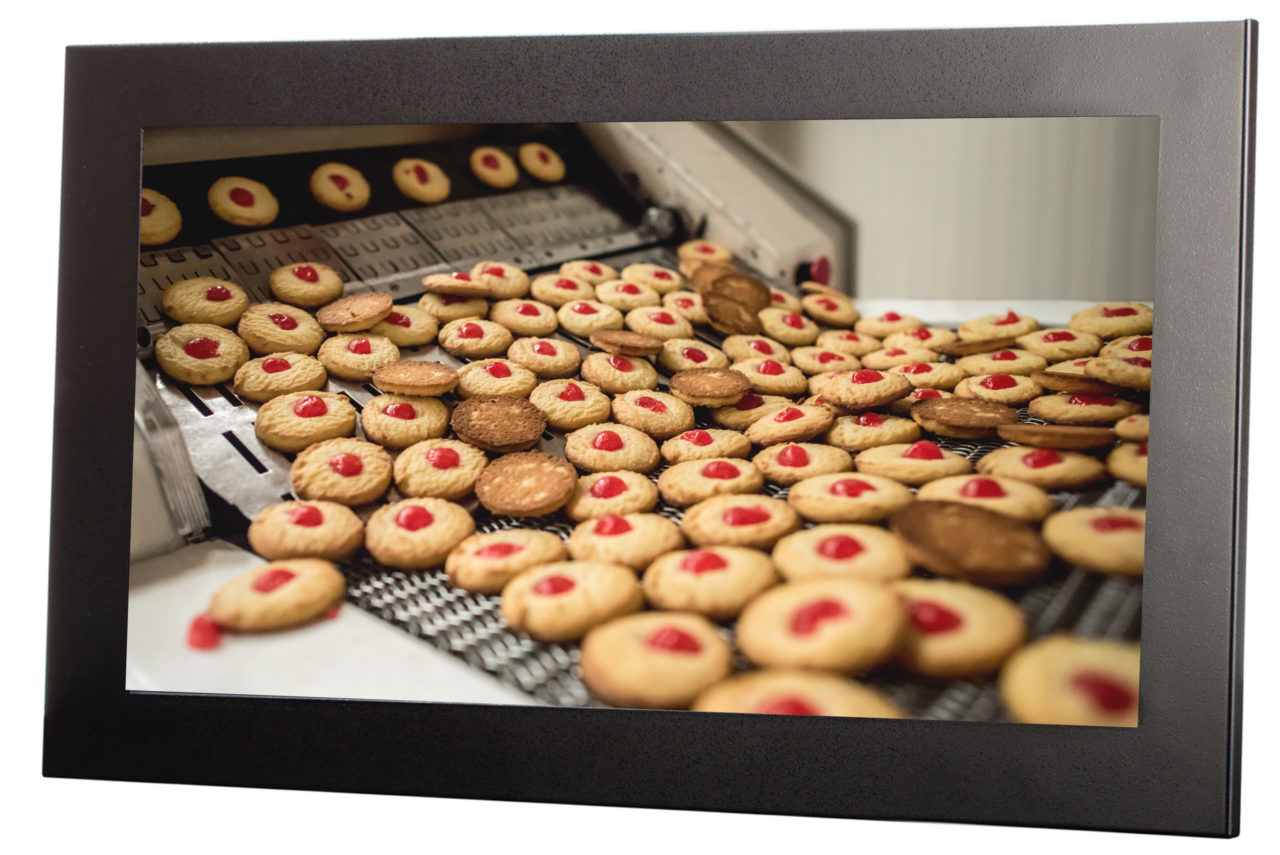

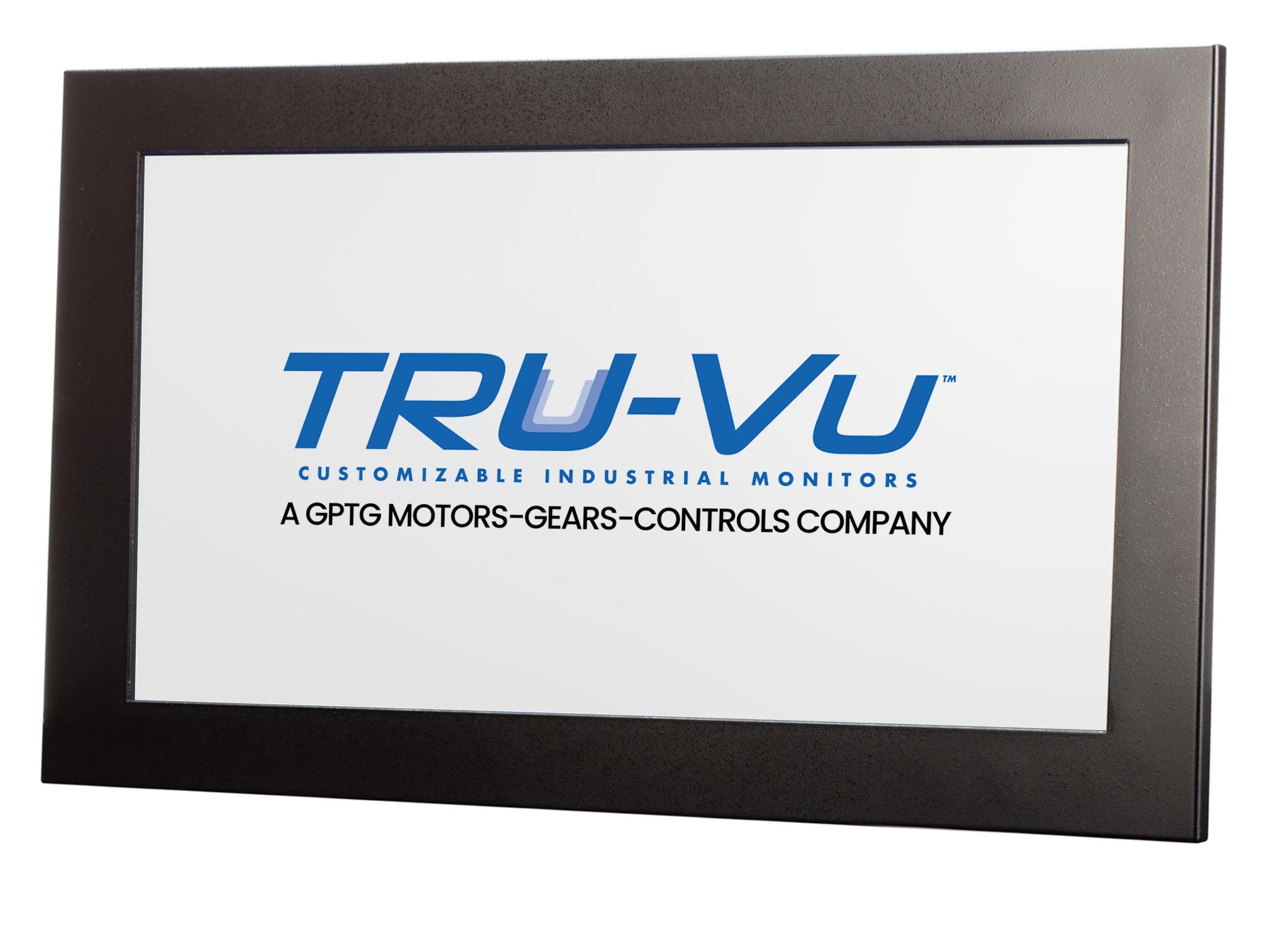

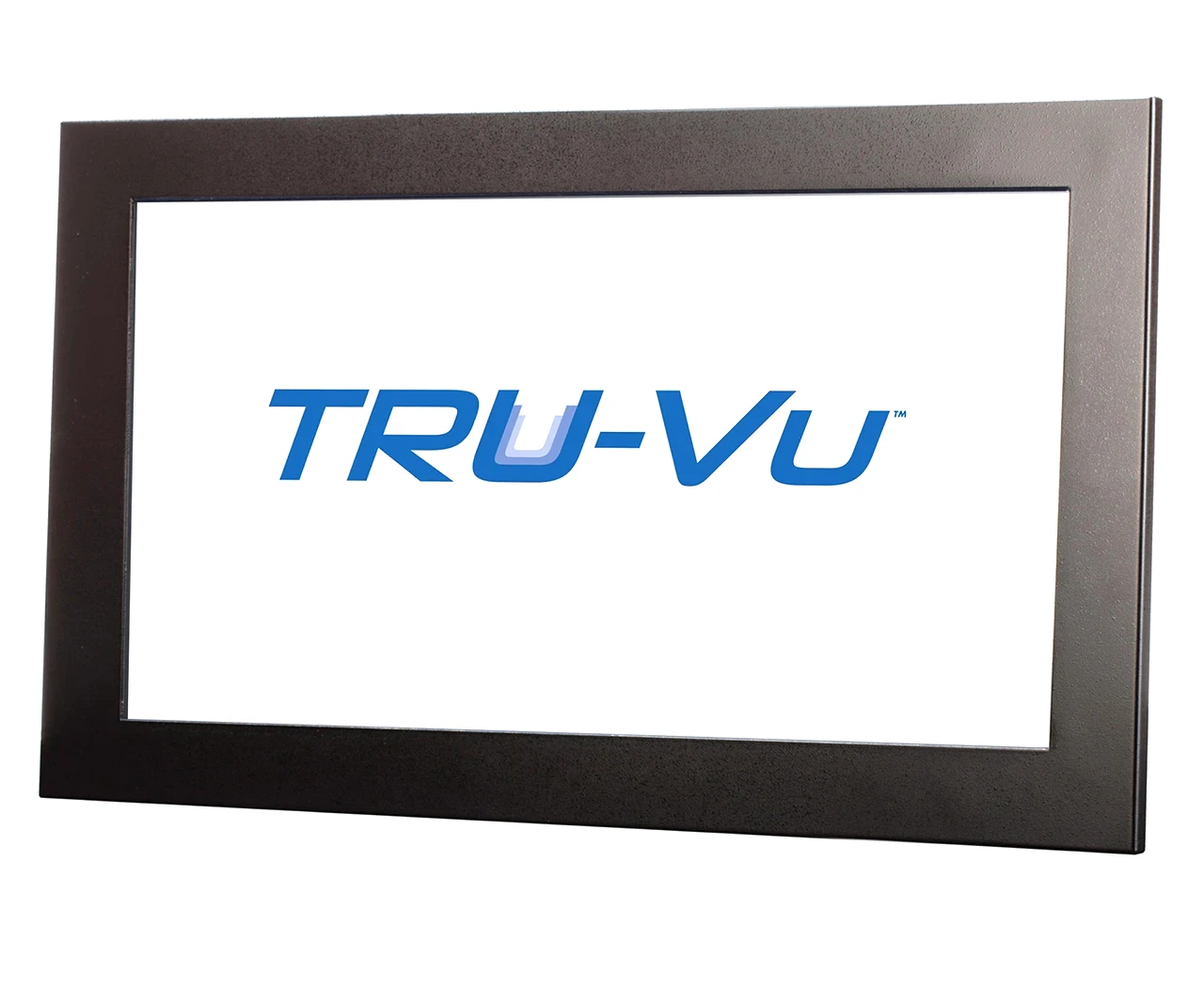

The VMXWP-15.6Z are 15.6″ waterproof panel mount monitors. Resolution is 1920 x 1080 (Full HD) . It has a 16:9 aspect ratio. This series features a NEMA 4X/IP65 (Rear Clamp) Stainless Steel waterproof panel mount enclosure. They operate on 12 VDC / 90-240VAC. Operating temperatures are 14˚ to 140˚F (-10˚ to 60˚C) For longer transmission distances, the VMXWP-15.6Z features an HD-SDI input.
INDUSTRIAL NEMA 4 WATERPROOF MONITORS
The VMXWP-15.6Z waterproof monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, we dress all wires, tie-wrap and secure them. Lastly, we apply ThreadLock to all screws. Our industrial-grade 15.6” panel mounted waterproof monitors are ideal for wet environments.
15.6″ WATER PROOF MONITOR PANEL MOUNT IP65
TRU-Vu 15.6″ water proof panel mount displays are built for demanding environments and applications. The front of the stainless steel panel-mount enclosure has a NEMA 4X/IP65 waterproof rating. The steel rear-clamp design ensures rock-solid installation. There’s also a handy guide on how to install a monitor into a door, wall or cabinet.. This series is ideal for use in wash-down environments such as food processing plants and other manufacturing facilities. For use in direct sunlight, we also offer our sunlight readable models, with 1,000 nits of brightness.
EXTREME OPERATING TEMPERATURES FOR WATER PROOF LCD
We design the VMXWP-15.6Z water proof monitors to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these displays will survive and thrive. To clarify, they will operate in temperatures down to 14°F ( -10°C). They will also withstand brutal heat. Operating temperatures go up to 140°F (60°C). The rugged stainless steel enclosure assures these 15.6″ waterproof lcd monitors will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
FLUSH MOUNT WATER PROOF MONITORS DEPLOYED WORLDWIDE
Our 15.6″ water proof panel mount monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, industrial manufacturing, oil and gas, and entertainment benefit. They are also found in inspection, kiosks, heavy equipment, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. Consequently, this ensures you of many years of reliable service.
We specialize in providing industrial-grade monitors and touch-screens for challenging environments. However demanding your application may be, we will provide the very best solution. Our vast client base shows our versatility in providing the very best LCD monitors in the industry.
OUR TECHNICAL EXPERTS WILL ASSIST IN FINDING THE BEST PANEL MOUNT MONITOR
With over 200 LCD monitors and touch screens on our site, selecting the ideal solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you to filter by your own specific search requirements. Shop by size 13.3″ – 19″ Monitors or filter by brightness to view other models with similar features. We also offer our 15.6″ monitors/ touch screens as Medical Grade Display solutions. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best. To see technical information, tips, and guides to LCD monitor technology, visit our TECH CENTER.
Scroll left & right to view full table.
|LCD Panel||15.6” Color TN LCD Panel (LED Backlights)|
|Resolution||1920 x 1080 (Full HD)|
|Viewable Area||13.55” (W) x 7.62” (H) (344.16 x 193.59 mm)|
|Pixel Pitch||0.17925 mm|
|Display Colors||16.7 M|
|Response Time||8 msec Trf|
|Viewing Angle||160° (H) x 140° (W)|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|VIdeo Inputs||VGA, HDMI, HD-SDI, Composite BNC Loop-Thru|
|Power Requirement||12 VDC / 90-240VAC|
|Power Consumption||15 Watts|
|Enclosure||Painted Steel Panel-Mount (Rear Clamp)|
|Anti Reflective Glass||Yes|
|Enclosure Rating||NEMA 4; Front: IP65|
|Operating Temperature||14˚ to 140˚F (-10˚ to 60˚C)|
|Shock||50 G (20 msec, ½ sine)|
|Vibration||1.5G RMS 10-200 HZ|
|Dimensions||17.27”(L) x 14.97”(W) x 2.33” (D) 438.70 (L) x 380.26 (W) x 59.20 (D) mm|
Specifications subject to change without notice.
- 90-240 VAC Power Supply
- HDMI Cable
- Touch Screen
- Private Label
- Other Customer – Specific Modifications
