10.1" Panel Mount Touch Screen Monitors
Fill out the form below to request a quote.
- 5-Wire Resistive Touch Screen
- Steel Panel Mount Enclosure
- Video Inputs: VGA, DVI, HDMI, DisplayPort
- Lockable On-Screen Display (OSD) Controls
- Auto Re-Start After Power Loss
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- 3-Year Warranty

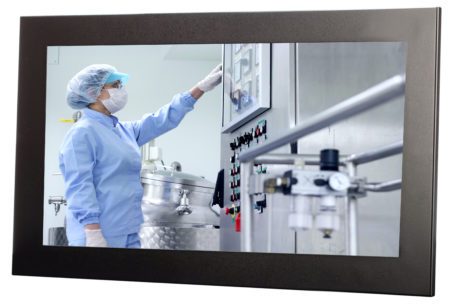

10.1″ TOUCHSCREEN WITH PANEL MOUNT ENCLOSURE
The VMTP-10.1 Series are 10.1” panel-mount touch screen monitors. It features 1280 x 800 resolution and 16:9 aspect ratio. It is available with 5-wire resistive touch screen. This panel-mounted touch screen offers 500 nits brightness and operates on 12-24VDC.
5-WIRE RESISTIVE FLUSH MOUNT TOUCH SCREEN
The VMTP-10.1 Series features a reliable 5-wire resistive touch screen. Therefore, the screen can be activated by nearly any object: exposed finger, gloved had, styles, pointer, etc. Unlike other touch technologies, the resistive touch screen surface will not be false-triggered by dirt, water or debris on the screen. This results in very robust long-term performance and reliability.

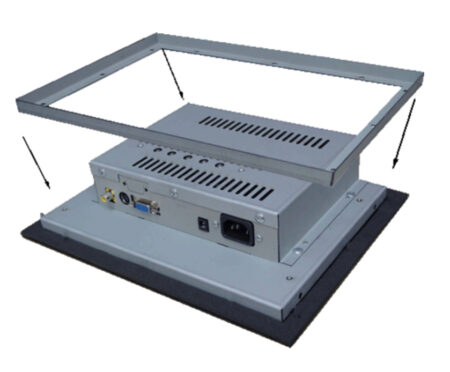

RUGGED PANEL MOUNT ENCLOSURE
The VMTP-10.1 Series 10.1” panel-mount touch screens feature a steel panel mount enclosure. Flush mount this touch screen into doors, cabinets or panels in manufacturing plants, kiosks, ships, vehicles or machines. With extended operating temperatures, these panel mounted touch screens are very versatile. The flush-mount design provides numerous advantages. A panel-mount touch screen is less likely to be damaged, saves precious floor space and has a cleaner look than a stand-alone touch screen monitor. Optional rear VESA mount holes enable you to attach other devices to the rear panel. There’s also a handy guide on how to install a panel mount monitor.
READY TO HELP YOU FIND THE BEST TOUCH SCREEN
With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you filter by your own specific important features. See all of our daylight viewable and sunlight readable monitors, or sort by size of 7-12″ monitors. View all panel-mount monitors or all touch screens. TRU-Vu Monitors also offers a wide range of LCD monitor mounts and stands. Custom OEM LCD Displays and Private Label Monitors are also an option if you have very specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs . We will help provide crystal-clear images for your projects. Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||10.1” Color LCD; LED Backlights|
|Touch Screen Type||5-Wire Resistive Touch|
|Touch Screen Interface||USB|
|Resolution||1280 x 800 (WXGA)|
|Viewable Area||9.68 (W) x 7.27 (H) (245.76 x 184.32 mm)|
|Pixel Pitch||0.1695 mm|
|Viewing Angle||170° (H) x 170° (V)|
|Response Time||25 Trf|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, DVI||VGA, HDMI, DisplayPort|
|Power Requirement||12-24 VDC|
|Enclosure||Powder Coated Steel Panel Mount|
|Operating Temperature||-4° to +158° F (-20° to +70° C)|
|Shock||50 G (20 msec, 1/2 sine)|
|Vibration||1.5 G (10-200 Hz P-P)|
|Dimensions||13.12” W x 9.44” H x 1.57” D (333.2mm W x 239.85mm H x 39.98mm D)|
|Included Accessories||VGA Cable, 2.5mm Locking Power Pigtail|
Specifications subject to change without notice.
- Locking Power Pigtail
