17" 5:4 Aspect Ratio Monitors - 17 Inch Square Monitor
Fill out the form below to request a quote.
- 17” 4:3 Aspect Ratio Monitor
- 1280 x 1024 Resolution (SXGA)
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- Video Inputs: VGA, S-Video, DVI, HDMI, Composite (BNC Loop-Thru); NTSC/PAL
- Auto Re-Start After Power Loss with Lockable On-Screen Display (OSD) Controls
- Can Be Customized to Meet Your Needs
- 3-Year Warranty
DISCOUNT AVAILABLE: VM-17ABS is on sale
17 INCH SQUARE MONITOR 5:4 ASPECT RATIO

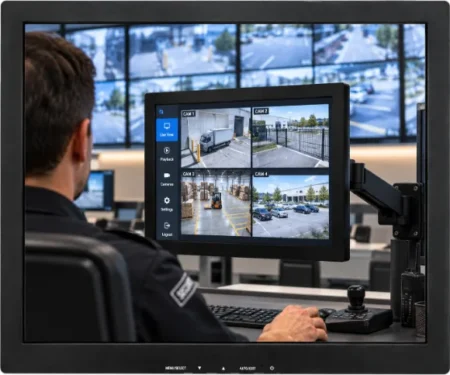

The VM-17 Series are industrial 17 inch LCD monitors. They offer 1280 x 1024 resolution and a 5:4 aspect ratio, often called square monitors. Additionally, the panels offer up to 300 nits brightness. They are ideal for use with analog cameras, and BNC cameras. Likewise, many legacy machine vision systems benefit. Furthermore, we build them with true industrial-grade components for long-term reliability. For example, they receive our exclusive TRU-Tuff treatment. Moreover, the TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws to ensure they remain secured. Most importantly, this results in a rugged, dependable monitor you can rely on. They can operate on 12 VDC or 9-36 VDC.
VIDEO MONITORS BUILT FOR DEMANDING APPLICATIONS
The VM-17 Series also provide a brighter-than-normal, with 300 nits brightness. The result is crisp, vibrant video images.TRU-Vu industrial LCD monitors are specifically designed for use in demanding industrial, commercial, and A/V applications. For instance, every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail or consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
The VM-17 Series industrial 17″ LCD monitors offer a variety of video inputs and are available in standard, open frame, rack mount, panel mount, NEMA/IP waterproof, and touch screen configurations. An extensive list of available OEM options enables you to customize a solution to your specific needs. We offer numerous other monitors in similar sizes and brightness levels from which to choose. They can also be private-labeled with your company name and/or logo on the front bezel.
17″ SQUARE MONITORS DEPLOYED WORLDWIDE
The VM-17 Series 17 inch monitor 5:4 aspect ratio are deployed in many industries and applications. This includes manufacturing plants, machine vision inspection systems, and food and beverage plants. They are also found in surveillance systems, specialty vehicles and museums.
TRU-Vu monitors are backed by our full 3-year warranty. Consequently, this ensures you of many years of reliable service.
OUR LCD EXPERTS ARE READY TO HELP YOU FIND A GREAT DISPLAY
With over 540 LCD monitors and touch screens on our site, selecting the ideal equipment, or touch screen solution may be a bit overwhelming. To help narrow down the choices, check out our Advanced Search Tool. For example, this enables you filter by your own specific search requirements. Browse all monitors and touch screens on sale.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
To see technical information, tips, tricks and guides to LCD monitors and technology, visit our TECH CENTER.
Scroll left & right to view full table.
|LCD Panel||17” Color LCD (LED Backlights)|
|Display||1280 x 1024 (SXGA)|
|Viewable Area||13.3” (W) x 10.64” (H)|
|Pixel Pitch||0.264mm x 0.264mm|
|Display Colors||16.7 Million|
|Aspect Ratio||4:3 (5:4)|
|Viewing Angle||170° (H) x 160° (V)|
|Response Time||5 msec Trf|
|Control||OSD (On-Screen Display) via Front Panel Pushbuttons|
|Video Inputs||VGA, DVI||VGA, S-Video, Composite (BNC) NTSC/PAL||VGA, Composite BNC Loop-Thru; NTSC/ PAL Auto Recognition||VGA, HDMI, Composite BNC Loop-Thru; NTSC/PAL|
|Internal Speakers||Dual Front||Optional|
|Power Requirement||9-36 VDC||12 VDC (2.1 mm Barrel Plug); 90-240 VAC via included Power Brick||12 VDC (2.1 mm Barrel Plug); 90-240 VAC via included Power Brick|
|Power Consumption||40 Watts|
|Mounting||75x75mm Rear VESA Mount Holes||Included Base or 75 x 75mm Rear VESA Mount Holes|
|Operating Temperature||14° to 122° F (-10° to 50° C)|
|Shock||50 G (20 msec, ½ sine)|
|Vibration||1.5G RMS 10-200 HZ|
|Approvals||UL/cUL, FCC, CE, TUV, RoHS|
|Dimensions||14.95” (W) x 13.54” (H) x 1.9” (D)|
(379.8 x 344 x 47.2mm)
|14.88” (W) x 15.50” (H) x 1.9” (D)
(378 x 317.5 x 48.6mm)
|Weight||6.9 lbs. (2.99kg)|
Specifications subject to change without notice.
- 90-240 VAC Power Supply
- Tabletop Stand (Except VM-17C-36)
- VGA Cable
- S-Video Cable (VM-17ABS Only)
- Audio Cable (3.5mm to RCA Stereo)
- Waterproof Enclosure
- Protective/Anti-Reflective Glass
- Touch Screen
- Rack Mount Bracket MB-Rack-17
- Open-Frame Configuration
- Private Label
- Guaranteed Defect-Free LCD Panel
- Other Customer – Specific Modifications
