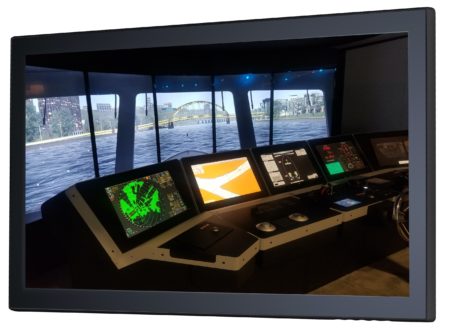

21.5” Sunlight Readable Touch Screen Monitor
Fill out the form below to request a quote.
- Produces Clear, Sharp Images Even in Bright Sunlight
- 1,000 nits Brightness
- Projected Capacitive Touch Screen
- Zero-Bezel, All Glass Front (Anti-Glare)
- Full HD Resolution: 1920 x 1080
- HDMI, DisplayPort, and DVI Video Inputs
- Internal Speakers
- Auto Re-Start After Power Loss
- Lockable On-Screen Display Controls
- Compatible with Automation Direct HMI
- 9-36 VDC Power
- 3-Year Warranty
HIGH BRIGHTNESS P-CAP TOUCH SCREEN DISPLAYS
The SRMTP-21.5G-36A are 21.5″ sunlight readable touch screen high brightness monitors. They feature at least 1000 nits brightness and a 16:9 aspect ratio. We design the SRMTP-21.5G-36A sunlight bezel less touchscreens for use in direct sunlight with full HD resolution. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This sunlight bezel less touchscreen will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen. It is also compatible with Automation Direct HMI.
RUGGED INDUSTRIAL TOUCH SCREEN MONITORS
The SRMTP-21.5G-36A 21.5″ Sunlight Readable touch screen monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged aluminum enclosure will ensure maximum shock and vibration resistance for this rugged 1000 nits brightness monitor.

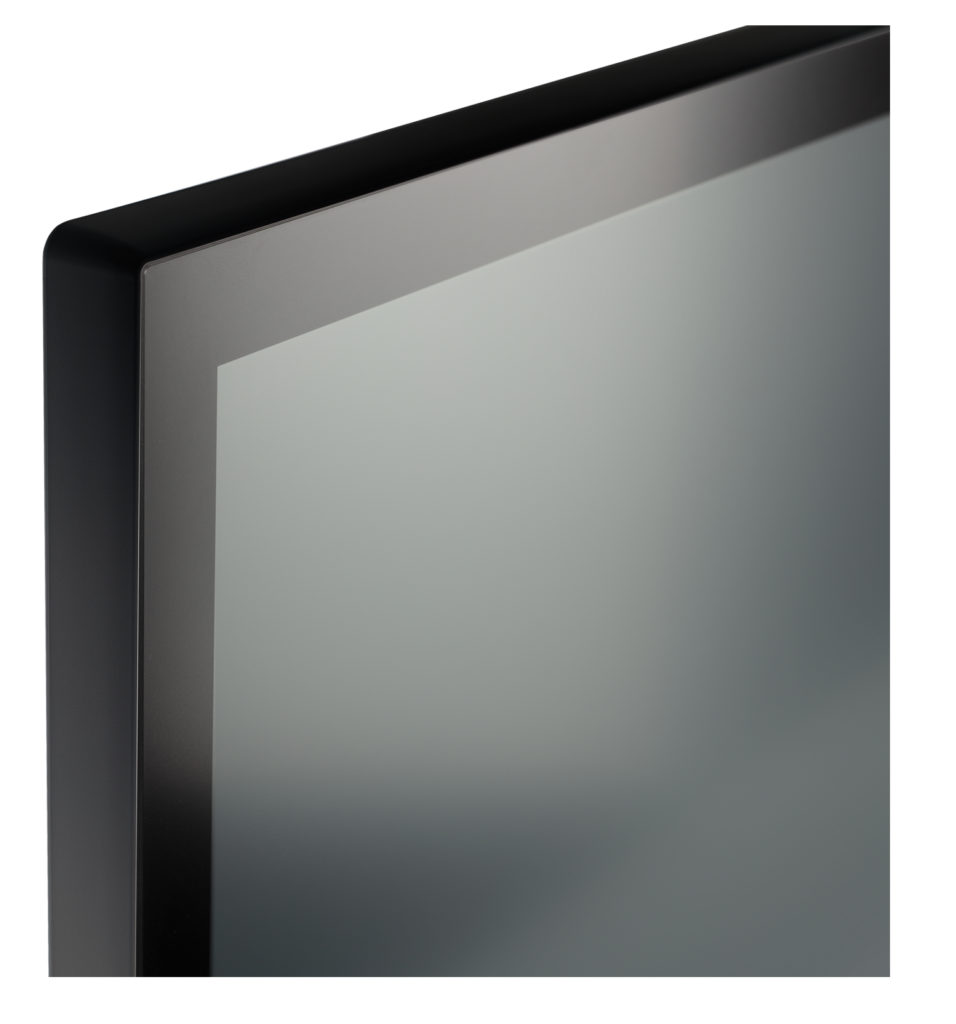

SUNLIGHT BEZEL LESS TOUCHSCREENS
We design the SRMZTP-21.5 sunlight readable touch displays to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to -4°F (-20°C). They will also withstand brutal heat, with operating temperatures up to 176°F (80°C). The Aluminum or rugged bezel-less front and Aluminum rear enclosure assures these 21.5″high brightness touch screens will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
TRU-VU TOUCH SCREENS DEPLOYED WORLDWIDE
Our 21.5″ sunlight readable touch screen monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, industrial manufacturing, aviation and entertainment benefit. They are also found in inspection, kiosks, heavy equipment, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
We specialize in providing Sunlight Readable monitors and touch-screens for challenging environments. However demanding your application may be, we will provide the very best solution. Our vast client base shows our versatility in providing the very best Sunlight Readable Monitors in the industry. What is a sunlight readable monitor? To learn even more- watch this video.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST HIGH BRIGHT TOUCH DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting frameless monitor or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by features important to you.
Shop by size 21″ – 65″ Monitors , see our full line of Touch Screen Monitors, filter by bezel less monitors, or see all monitors that can operate on 24VDC for similar models. We offer a full range of open frame monitors and LCD modules to accommodate space restrictions nearly any OEM may have. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements. Visit our wide range of LCD monitor mounts and stands to complete your installation. We also offer our 21.5″ monitors/ touch screens as Medical Grade Display solutions.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||21.5” Color TFT LCD (LED Backlights)|
|Touch Screen Type||Projected Capacitive|
|Front Glass||Anti-Glare All Glass Front|
|Resolution||1920 x 1080 (Full HD)|
|Viewable Area||18.76” (W) x 10.55” (H) (476.6 x 268.1mm)|
|Display Colors||16.7 Million|
|Aspect Ratio||16:9 Widescreen|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||18 msec|
|Control||Via OSD (On-Screen Display) Buttons|
|Video Inputs||DVI, HDMI, DisplayPort|
|Enclosure||Zero Bezel Front, Aluminum Rear|
|Enclosure IP Rating||Front: IP65 Rear: IP30|
|Mounting||100 x 100mm Rear VESA Mount Holes (M4 x 6mm Screws)|
|Operating Temperature||-4° to 176°F (-20° to 80°C)|
|Shock||50 G Half-sine|
|Vibration||1.5 G RMS 10-200 Hz|

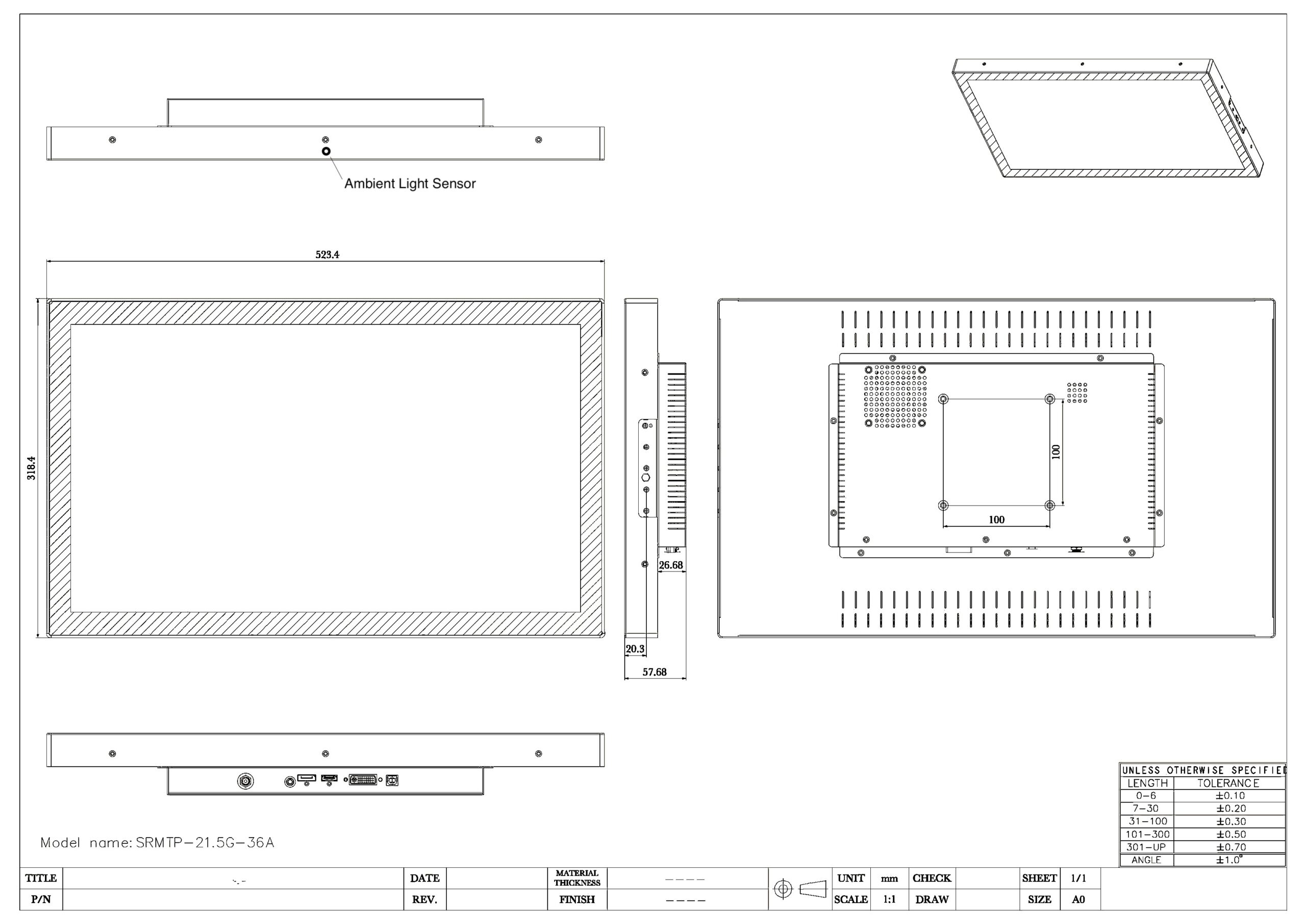

|Dimensions||20.61" (W) x 12.54" (H) x 2.28" D ( 523.4 x 318.4 x 57.9 mm)|
|Weight||8.14 lbs / 3.69 kg|
Specifications subject to change without notice.
- USB Cable
- HDMI Cable
- Audio Cable
- 2.5mm Locking Power Pigtail
- Private Label
- Wall Mount Bracket or Tabletop Base
- Other Customer- Specific Modifications
