24” Sunlight Readable Waterproof Monitor
Fill out the form below to request a quote.
- True Sunlight-Readable Outdoor Monitor
- 1,000 Nits Brightness
- Waterproof NEMA 4X Stainless Steel Enclosure
- Full HD Resolution: 1920 x 1080 (1080p/60)
- LED Backlights
- Auto Re-Start After Power Loss
- Protective Anti-Reflective Glass
- Can Be Customized To Meet Your Needs
- 3-Year Warranty

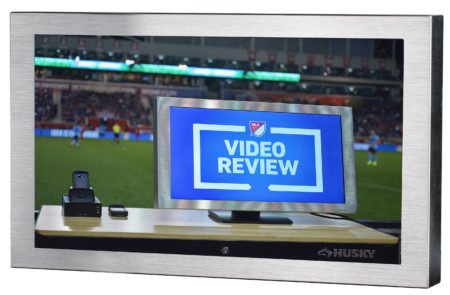

24″ SUNLIGHT READABLE OUTDOOR MONITOR
The SRMW-24 Series are 24″ sunlight outdoor monitors. They feature at least 1000 nits brightness. Additionally, this particular series has a 16:9 aspect ratio. It is full HD resolution. You have a choice of landscape or portrait modes. We design this 24″ 1,000 nits display for use in direct bright sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. This display produces at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even with bright sunlight on the face of the screen.

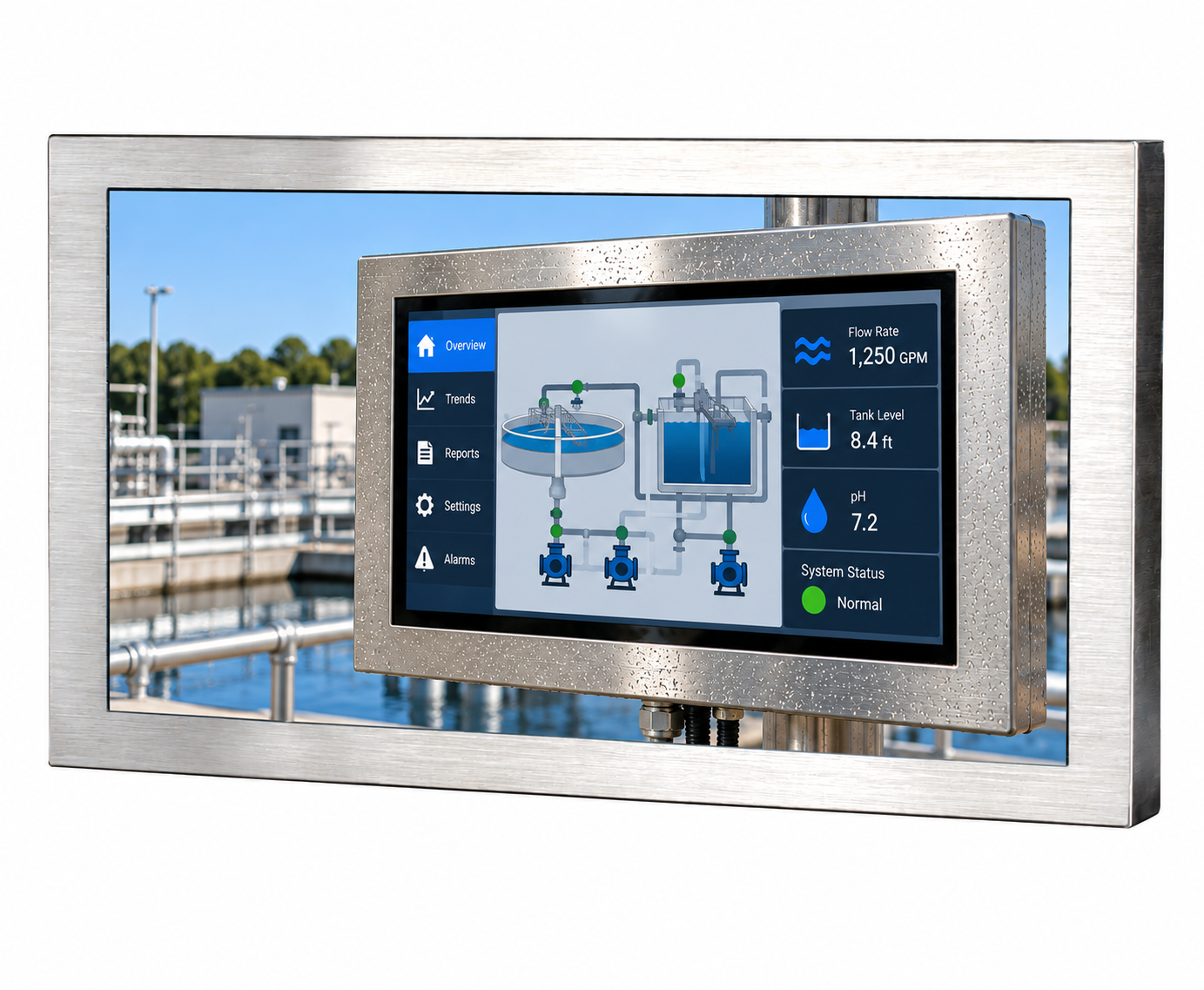

For nighttime use, the Dim-To-Black function will enable users to dim the brightness of the monitor as needed via front OSD buttons. For longer transmission distances, the SRMW-24Z-SS features an HD-SDI input.
RUGGED INDUSTRIAL MONITORS
These 24″ sunlight readable waterproof displays are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Furthermore, we apply ThreadLock to all screws. Lastly, the rugged NEMA 4X Waterproof stainless steel enclosure ensures maximum shock and vibration resistance.

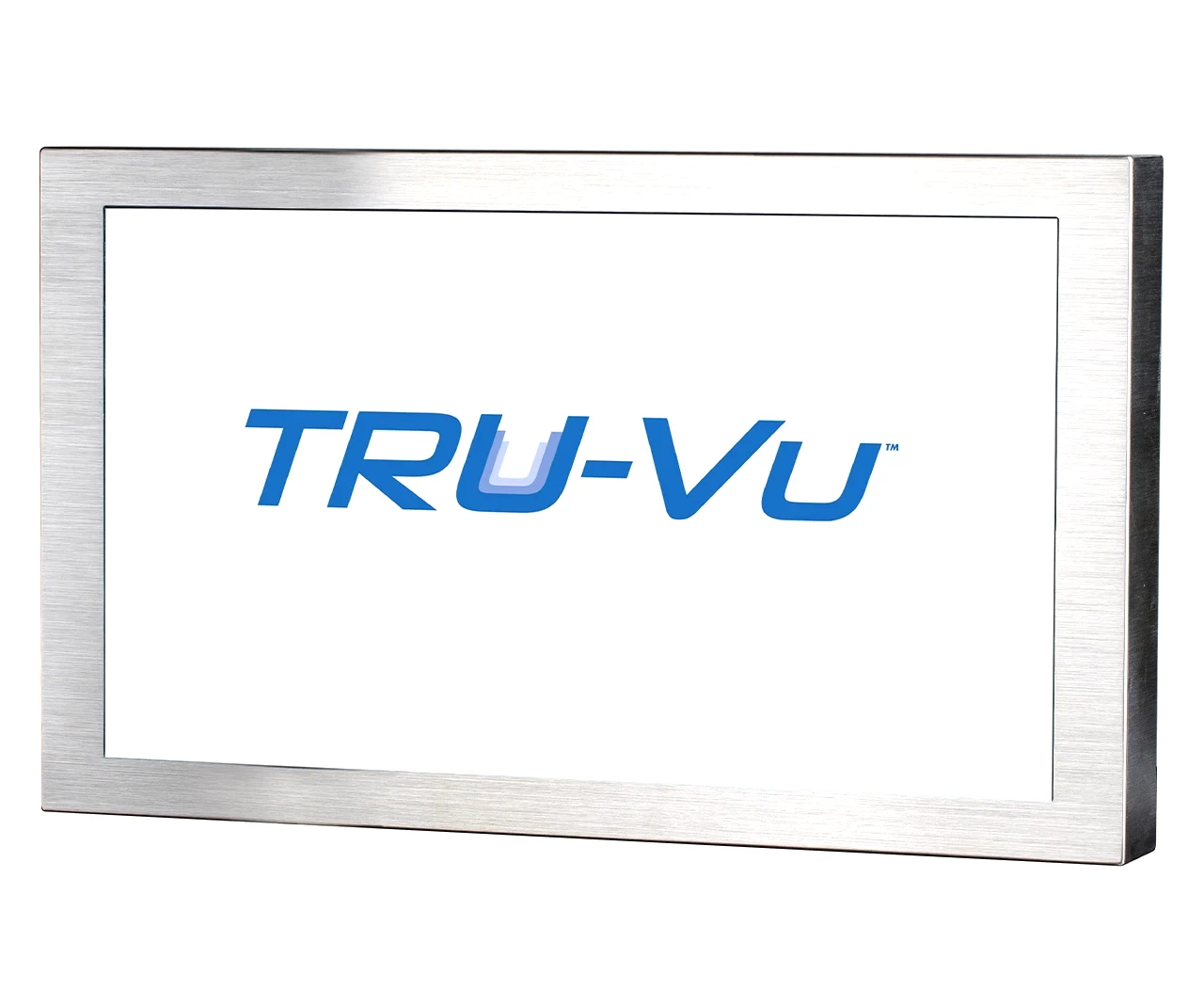

water proof monitor NEMA 4X
These monitors feature a rugged waterproof NEMA 4X stainless steel enclosure. It is impervious to liquids, rust or corrosion. It is rated NEMA 4X, and features protective Anti-Reflective glass over the LCD panel. The 24″ outdoor monitors will withstand the elements outdoors. It will also endure wash-downs in industrial and food processing plants.
EXTENDED OPERATING TEMPERATURES FOR OUTDOOR MONITORS
We design the SRMW-24 Series high brightness display to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, some of these monitors will operate in temperatures down to -4°F (-20°C). They will also withstand brutal heat. Moreover, operating temperatures go up to +158°F (+70°C). The rugged stainless steel NEMA 4X waterproof enclosure assures years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
1000 NITS BRIGHTNESS MONITORS DEPLOYED WORLDWIDE
Our 24″ outdoor monitors with 1,000 nit screen brightness are found in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit. You will also find them in the inspection, marine, oil & gas, industrial and transportation industries. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
We specifically design all TRU-Vu industrial LCD monitors for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components . We provide high-end LCD panels with 1000 nots brightness not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty guarantees you of reliable worry-free operation and service to back it up.
BEST OUTDOOR WATERPROOF MONITOR FOR YOUR APPLICATION
With over 540 LCD monitors and touch screens on our site, selecting the 1000 nits monitor may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you filter by features important to you. See our full line-up of industrial-grade Sunlight Readable and Daylight Readable Monitors. This filters all of our monitors by high brightness features. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. All waterproof monitors can be displayed and viewed on one page. Shop by size 21.5″ to 65″ monitors, or view only monitors that run on 24VDC. TRU-Vu Monitors also offers a wide range of LCD monitor mounts and stands. Custom OEM LCD Displays and Private Label Monitors are also an option if you have very specific requirements.
Our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Finally, our professional advisors will ensure the 1000 nits monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||24” Color; LED Backlights|
|Display Resolution||1920 x 1080|
|Viewable Area||20.92” (W) x 11.76” (H) (531.4 x 298.9 mm)|
|Display Colors||16:7 M|
|Ambient Light Sensor||Standard||Optional|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||25 msec|
|Control||OSD (On-Screen Display) via Rear Pushbuttons|
|Video Inputs||VGA, HDMI, HD-SDI (Loop-|
Thru), BNC (loop-Thru)
|VGA, HDMI, Display Port|
|Power Requirement||12-24 VDC or 90-240 VAC|
|Enclosure Rating||NEMA 4X|
|Mounting||100 x 100mm Rear VESA Mount Holes|
|Operating Temperature||-4° to 158° F (-20˚ to +70° C)|
|Vibration||1.5G RMS 10-200Hz|
|Approvals||UL, FCC, CE, RoHS||RoHS|
|Dimensions||24.01” (W) x 14.31” (H) x 3.11” (D) (610 x 363.6 x 79mm)|
|Weight||23.44 lbs. (10.63 kg)|
Specifications subject to change without notice.
- VGA Cable
- HDMI Cable
- AC Power Cord and Power Pigtail Cable
- Automated Ambient Light Sensor (for SRMW-24R-SS)
- DVI Video Input
- DisplayPort Video Input
- Private Label
- Waterproof Outdoor Wall Mount Bracket (MBX-670)
- Other Customer – Specific Modifications
