19” Sunlight Readable Panel-Mount Touch Screen
Fill out the form below to request a quote.
- 5-Wire Resistive Touch Screen, Sunlight Readable
- Produces Clear, Sharp Images Even in Direct, Bright Sunlight
- 1,500 nits Brightness
- Waterproof Stainless Steel Panel-Mount Enclosure
- Auto Re-Start After Power Loss
- Ambient Light Sensor
- High Temperature Operation: Up to +185°F
- Compatible with Automation Direct HMI
- 3-Year Warranty

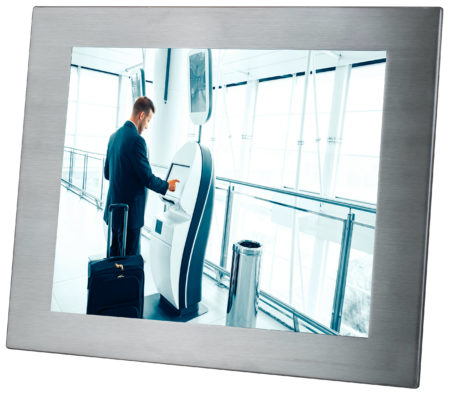

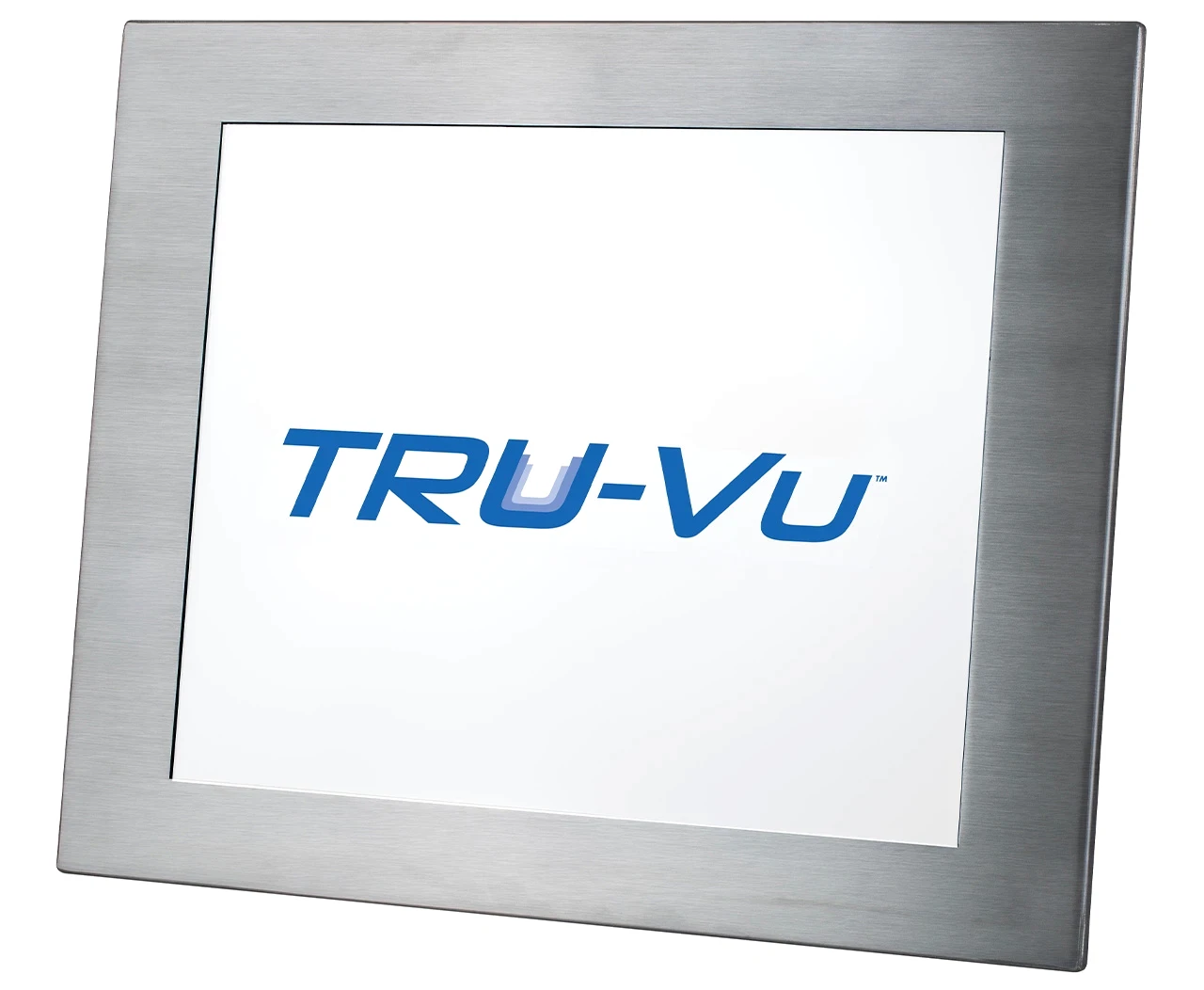

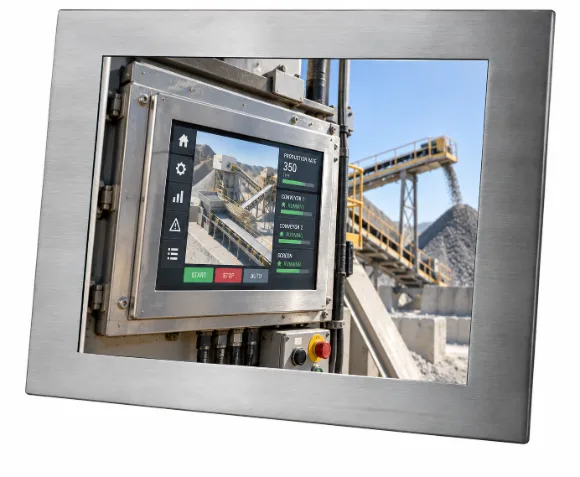

19″ SUNLIGHT READABLE PANEL-MOUNT WATERPROOF TOUCHSCREEN
The SRMHTRWPM-19C-S are 19″ sunlight readable panel mount touch screens. Additionally, they feature a 5-wire resistive touch screen in a waterproof panel mount enclosure, 1,500 nits brightness and a 4:3 (5:4) aspect ratio are also featured. With an operating temperature of -22˚ to +185˚F, this touch screen suitable for use outdoors and in nearly any type of weather conditions. It is also compatible with Automation Direct HMI.
SUNLIGHT READABLE TOUCH SCREEN WITH 1200 NITS BRIGHTNESS
The SRMHTRWPM-19C-S are 19″ sunlight readable panel mounted waterproof touch screen monitors. It features 1,500 nits screen brightness and a 4:3 aspect ratio. We design this 19 bright touchscreen for outdoor use. Additionally, the weatherproof touch screen specifically designed for use in direct sunlight. Consequently, because of the high 1,500 nits brightness of the SRMHTRWPM-19C-S panel mount monitors, they are perfect for any high ambient-light conditions. These weather proof touch screens utilize state-of-the-art LED backlights. 1,500 nits brightness is over 5 times brighter than standard brightness monitors. For example, Standard LCD monitors offer only 200-300 nits brightness. Lastly, this will provide you with crystal-clear images, even in direct, bright sunlight on the face of the screen.
RUGGED 19″ OUTDOOR WATERPROOF TOUCHSCREEN
These 19″ high brightness touch screen displays are not only bright, but extremely rugged. We design them with true industrial-grade components. Additionally, these outdoor panel mount touchscreens receive our exclusive TRU-Tuff treatment. The TRU-Tuff process will include RTV silicone on all connections and critical components. We dress all wires, and they are tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. Additionally, the durable stainless steel panel mount enclosure ensures maximum shock and vibration resistance. This weather proof touchscreen will easily withstand the elements outdoors. Furthermore, It is also ideal for wash-down environments and widely used in industrial and food processing plants.
With the front face of this weatherproof touchscreen rated NEMA 4X Waterproof, it is impervious to liquids, rust and corrosion. The panel mount feature enables you to flush-mount this touch screen into a panel, door, wall, cabinet or enclosure. Panel mount touchscreens offer added protection since only the front of the monitor is exposed. Furthermore, View how to install a panel-mount touchscreen.
5-WIRE RESISTIVE TOUCH SCREEN WITH HIGH OPERATING TEMPERATURES
We design the SRMHTRWPM-19C-S to operate in nearly any environmental conditions. This 19 bright touchscreen will perform in frigid conditions or blazing heat. These monitors will operate in temperatures down to -22°F (-30°C). Additionally, they will also withstand brutal heat, with operating temperatures up to 185°F (85°C). The 19″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
A resistive touch screen monitor is composed of a glass panel and a film screen, each covered with a thin metallic layer, separated by a narrow gap. When a user touches the screen, the two metallic layers make contact, resulting in electrical flow. The point of contact is detected by this change in voltage, and registers the X & Y coordinates from a touch. It is one of the 5 most popular types of touch screens available.
WHERE ARE PANEL MOUNT TOUCHSCREENS USED?
TRU-Vu 19″ weatherproof outdoor touch screens have been deployed in a wide range of demanding installations. For example, industries such as military, law enforcement, manufacturing and entertainment will benefit. 19” bright touchscreens are also deployed in the inspection, marine, oil & gas sectors. Industrial and transportation industries also utilize this popular model. Most importantly, TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service for your high bright outdoor display.
OUR TECHNICAL EXPERS ARE READY TO HELP YOU FIND THE BEST OUTDOOR TOUCH SCREEN
TRU-Vu has over 200 LCD monitors and touch screens on our site. Selecting the ideal equipment or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own specific search requirements. See our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. Browse waterproof monitors and touch screens, see similar sized monitors, or view all touchscreens. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements. We have a full line of Panel Mount Monitors and Touch Screens from which to choose.
TELL US ABOUT YOUR PANEL MOUNT DISPLAY NEEDS. WE ACTUALLY LISTEN!
Certainly, our team members are ready to help! We can determine the exact solution that will meet your specific needs . TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. In conclusion, our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements. We will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||19” Color LCD; LED Backlights|
|Touch Screen Type||5-Wire Resistive|
|Resolution||1280 x 1024 (SXGA)|
|Viewing Area||14.81” (W) x 11.85” (H) (376.17 mm x 300.98 mm)|
|Display Colors||16.7 M|
|Aspect Ratio||4:3 (5:4)|
|Ambient Light Sensor||Standard|
|Viewing Angle||170° (H) x 160° (V)|
|Response Time||5 msec (Trf)|
|Video Input||VGA & DVI|
|Power Requirement||9-36VDC (2.5 mm Locking Pigtail)|
|Enclosure Rating||NEMA 4X; Front: IP65|
|Operating Temperature||-22˚ to +185˚F (-30˚ to +85˚C)|
|Dimensions||18.33" (W) x 15.18" (H) x 1.67" (D) (465.8 x 385.8 x 42.5 mm)|
Specifications subject to change without notice.
- 2.5 Locking Pigtail
- VGA Cable
- DVI Cable
- USB Cable
- Powder-Coated Steel with Non-Waterproof front Face
- Private Label
- Direct 90-240 VAC Power
