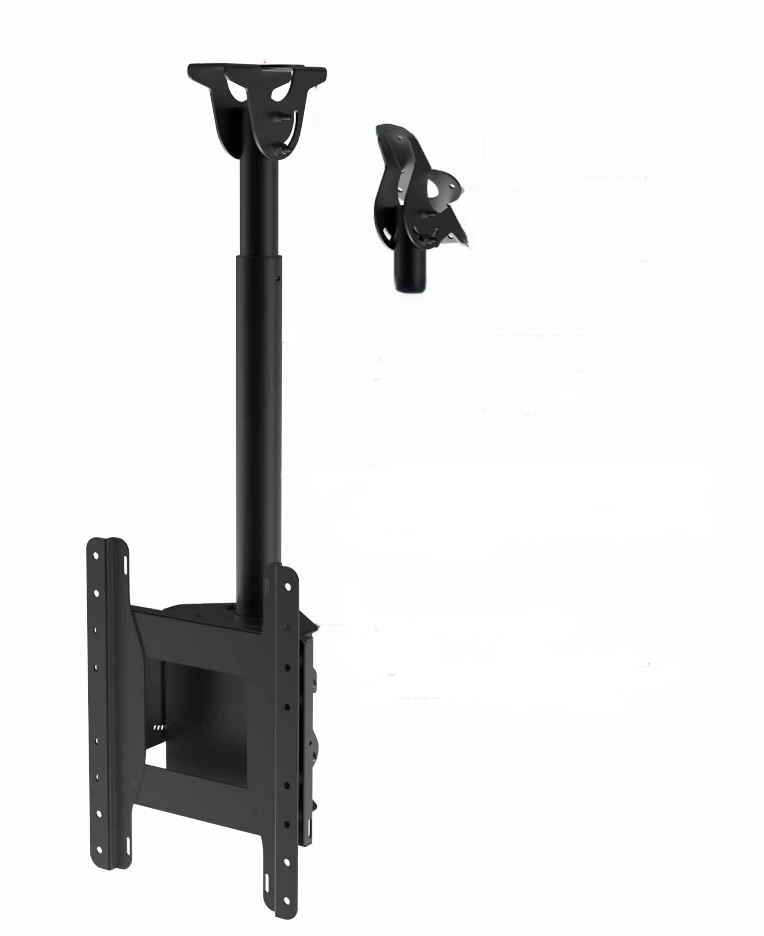

MB-ECMUA

Outdoor Ceiling Mount for 43" to 75" Displays

  • Mounts to wood stud or concrete offering versatile placement options
  • Cathedral ceiling plate can attach to 0° to 95° angled ceiling structures
  • Adjustable extension column provides 32.5″ to 54.5″ (826 to 1384 mm) of vertical adjustment
  • Easily route all cabling through the extension column for a clean and neat installation
  • Maximum viewing possibilities with 360º of side-to-side swivel creates endless viewing possibilities
  • Corrosion resistant design and stainless steel hardware included
  •  Tilt of -5°, 0°, 5°, 10°, 15° or 20° ensures the ideal viewing area
  • Dedicated mounting pattern accommodates 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300 and 400 x 400mm VESA® mounting patterns (Optional bracket up to 600 x 400mm VESA® pattern, sold separately)
  • Compatible with Outdoor Tilting Wall Mount  to Accommodate VESA® Patterns up to 600 x 400mm

TRU-Vu Outdoor Ceiling Mount for 43″ to 75″ Displays are Corrosion resistant ceiling mount is the perfect solution for wind protected, outdoor applications. The outdoor powder coated paint and stainless steel hardware provide a proper mounting solution for areas that need corrosion protection. Furthermore, The cathedral ceiling plate provides flexible mounting options and the adjustable extension columns allow all cabling to be ran out of sight, through the center of the column. 1 Year Warranty.

Product Specifications for Outdoor Ceiling Mount for Large Monitors and TV’s

  • Dimensions (W x H x D)

    13.04″ x 32.50″-54.50″ x 8.29″ (331 x 826-1384 x 210mm)

  • Product Weight

    32.2lb (14.6kg)

  • Load Capacity

    175lb (79.4kg)

  • Finish

    Outdoor Powder Coated

  • Available Colors

    Black

Monitor Mounts – Tabletop Stands & Wall Mount Brackets – Power Supplies

TRU-Vu Monitors offers  several power supplies to power your monitors via 90-240VAC.  Please be sure to check for correct amperage and voltage for your specific monitor. Contact us for assistance if needed.

TRU-Vu Monitors also offers a wide range of LCD monitor accessories for its industrial-grade monitors and touch screens. For example, monitor mounts include  waterproof  VESA mounts, monitor stand, monitor arm mount, and wall mount monitor arms.  Additionally, we provide monitor wall mount brackets, outdoor monitor mounts, and waterproof monitor mounting brackets. Furthermore, some are corrosion resistant for outdoor use. We even have portrait mode brackets for you.  For more information on VESA wall mounts (Video Electronics Standards Association) – visit www.vesa.org  Learn more about products for screen cleaning, or even adapters.

Additionally, TRU-Vu also provides a wide range of monitor stands, monitor bases and tabletop stands. These accommodate monitors from 8.4″ to 32″.

Our 17″ and 19″ Rack Mount brackets enable you to easily convert a standard 17″ or 19″ LCD monitor into a rack mount monitor, at a fraction of the cost.

outdoor mount for large tv display

Dimensions (mm):

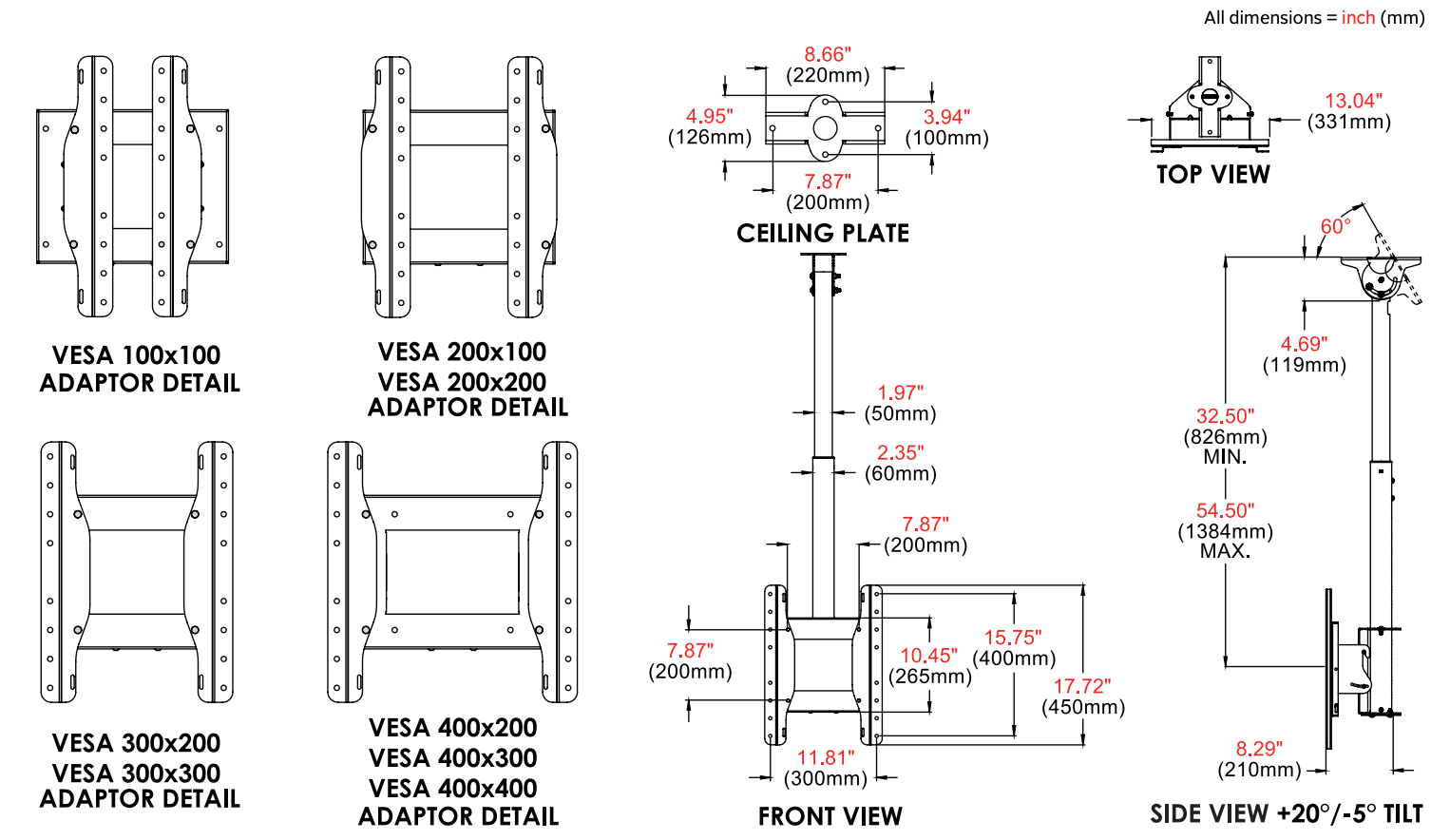

Technical Drawing of MB-ECMUA
