Cable Length Guide
TRU-Vu Monitor Cable Length Guide will help you to understand the recommended lengths for various video monitor cable types.
Cable | Max. Cable Length | Max. Resolution |
|---|---|---|
VGA  | Up to 800 x 600 resolution- 100 feet 1280 x 1024/1024 x 768 resolution - 50-100 feet 1600 x 1200/1920 x 1200 resolution - 25 feet Will not support 4k resolution | 1920 x 1200 |

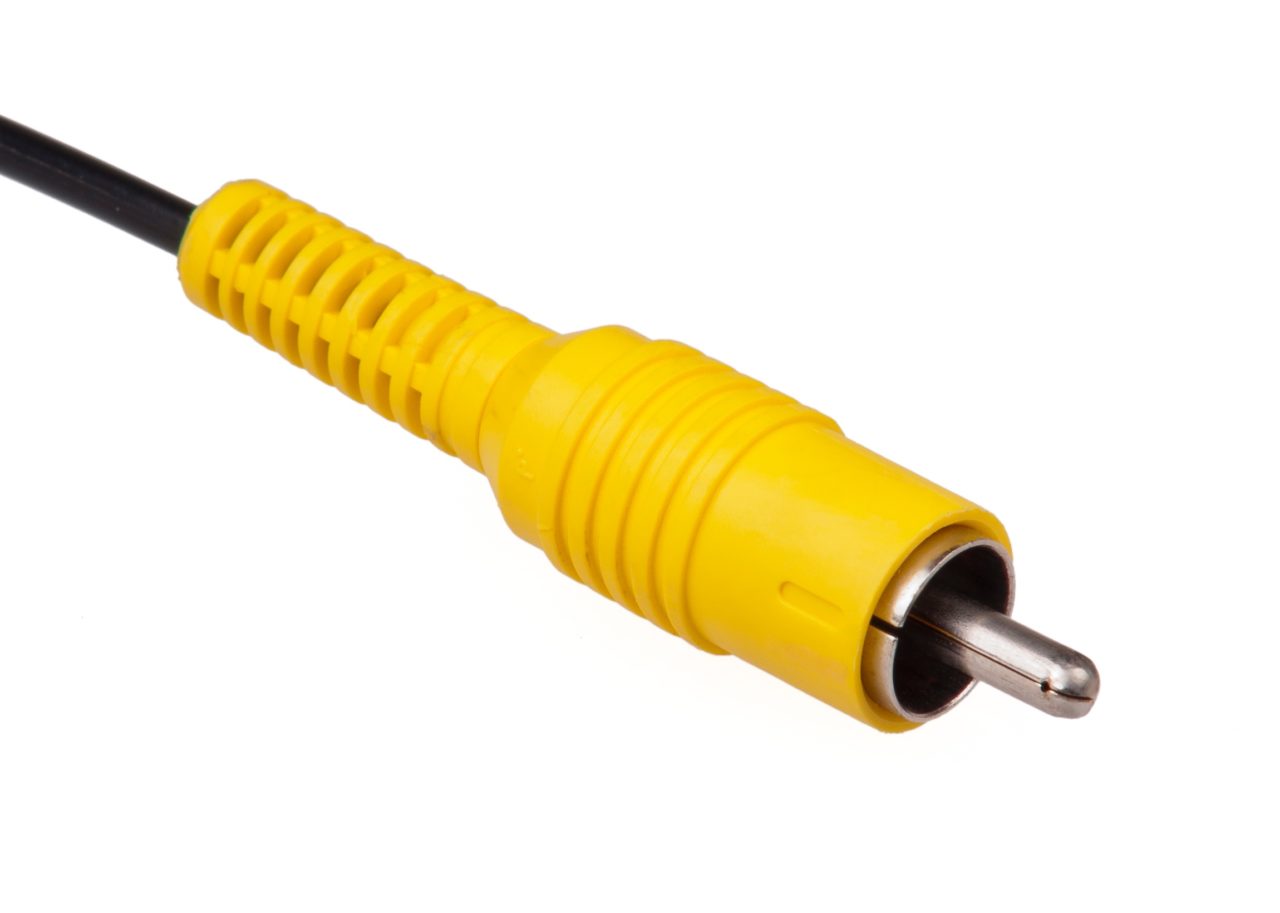

Composite (BNC or RCA)  | 100 feet with standard cable 300 feet with high quality cable Will not support 4k resolution | 1280 x 1024 |

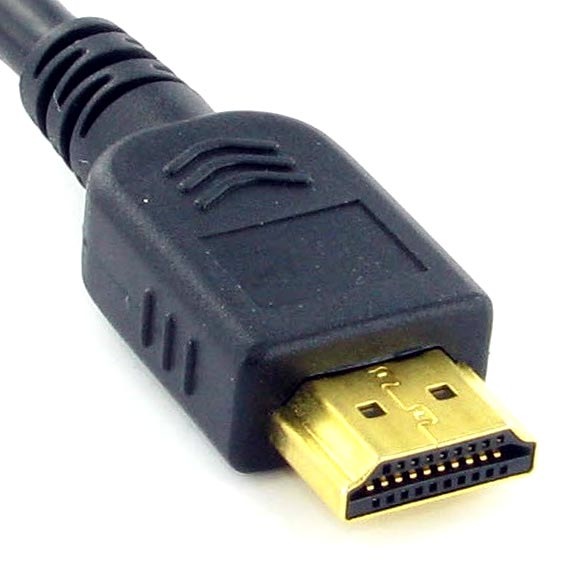

HDMI  | Up to 1920 x 1080p - 16 feet with standard cable Up to 1920 x 1080p - 50 feet with high quality cable Will support 4K up to 25 feet with high quality cable | 3840 x 2160 |

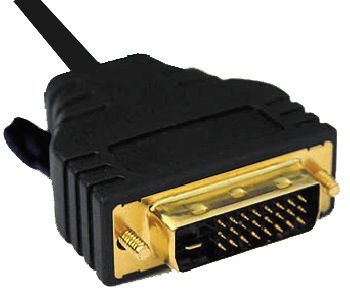

DVI-D / DVI-I  | Up to 1280 x 1024 resolution & 19” monitors (or smaller) - 50 feet Larger monitors - 15 feet Will not support 4k resolution | 1920 x 1080 |
HD-SDI  | Up to 1920 x 1080 resolution - 250 feet Up to 1920 x 1080 resolution with fiber optic cable - 660 feet Will not support 4k resolution | 1920 x 1080 |

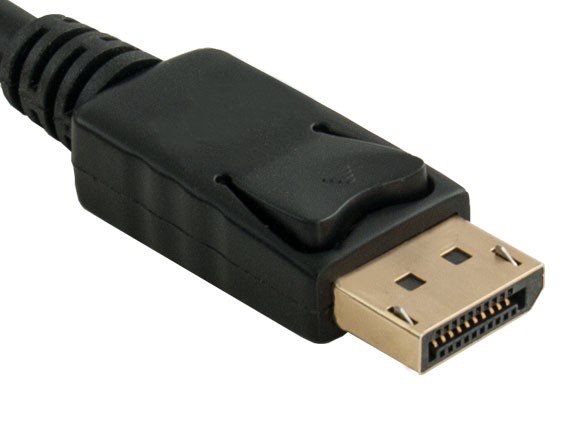

DisplayPort  | Up to 1920 x 1080 resolution - 50 feet Will support 4K up to 6.5 feet with standard cable | 3840 x 2160 |
| Please note, not all video cables are manufactured to the same level of quality and the information above may not pertain to every video cable on the market. It is best to contact the cable manufacturer directly and ask them to provide you with the maximum length their specific video cable will transmit your desired video resolution before committing to a purchase. |
OUR TECHNICAL EXPERTS WILL HELP YOU FIND THE RIGHT VIDEO CABLE TYPE & VIDEO CABLE LENGTH
Our cable length guide will assist you in selecting the best monitor cable types and video cable lengths for your application. Whether determining the maximum HDMI cable length, or HD-SDI cable length, this chart should help.
