43” Industrial-Grade Monitor
Fill out the form below to request a quote.
- Full HD Resolution: 1920 x 1080, (1080p/60)
- Wide Viewing Angle (178º)
- Video Inputs: VGA, HDMI, Composite BNC, HD-SDI
- Auto Re-Start After Power Loss
- Lockable On-Screen Display Controls
- Rugged Steel Housing
- Can Be Customized to Meet Your Needs
- 3-Year Warranty

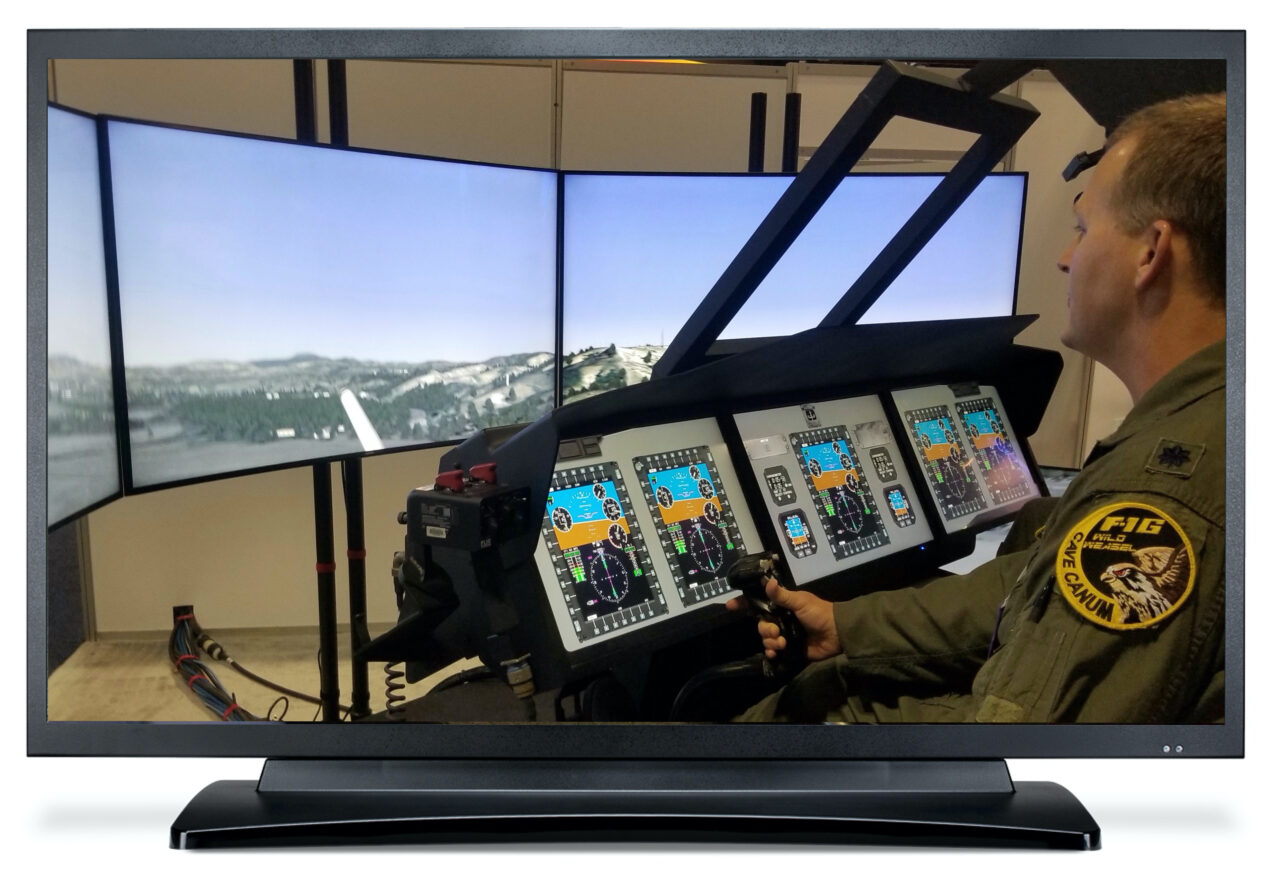

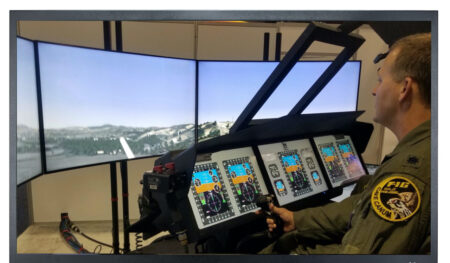

INDUSTRIAL-GRADE 43″ HDMI MONITOR
The VM-43Z are 43 inch monitors. These industrial-grade LCD monitors offer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications. They offer full HD resolution: 1920 x 1080 (1080p/60). It is a 16:9 aspect ratio display series. The VM-43Z monitors offer VGA, HDMI, HD-SDI Loop-Thru, Composite (BNC) Loop-Thru input connections. An extensive list of available OEM options enables you to customize the VM-43Z to your specific needs. It is available in a standard enclosure, open frame or touch screen configurations.
LARGE MONITOR WITH MAXIMUM RESISTANCE TO SHOCK AND VIBRATION
The VM-43Z 43 inch monitor also features TRU-Vu’s exclusive TRU-Tuff treatment, which ensures maximum resistance to shock and vibration. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures the VM-15.6 Series will provide years of reliable service. Every TRU-Vu monitor utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. View our entire line of large industrial monitors.
43″ INDUSTRIAL LCD DESIGNED FOR 24/7/365 OPERATION
The VM-43Z displays are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, military, food & beverage, machine vision systems, museums, surveillance, and simulator applications. View all of our standard brightness industrial monitors for indoor operation.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST 43 INCH DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you filter by your own specific search attributes important to you. You may search by resolution, aspect ratio, size, touch screens, 24VDC monitors, or even by type of enclosure. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs . We will help provide crystal-clear images for your projects. Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 12′′ Waterproof Touch Panel-Mount monitor you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||43” Color TFT LCD; LED Backlights|
|Display Resolution||1920 x 1080 (Full HD) 1080p/60|
|Viewing Area||37.04” (W) x 20.84” (H) (940.89 X 529.25 mm)|
|Display Colors||16.7 M|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||8 msec (gray to gray)|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons or Remote Control|
|Video Inputs||VGA, HDMI, HD-SDI, Composite (BNC)|
|Video Outputs||HD-SDI, Composite BNC|
|Power Requirement||24 VDC (4-pin mini-Din Connector) or 100-240 VAC (via Included Power Cord)|
|Power Consumption||70 Watts Max|
|Power Output||12VDC (1A)|
|Mounting||Included Tabletop Base
or via 200x200mm and 200x400mm VESA Hole Pattern
|Operating Temperature||32° to 122° F (0º to 50º C)|
|Shock||50 G (11 msec, 1/2 sine)|
|Vibration||1.5G RMS 10-300Hz|

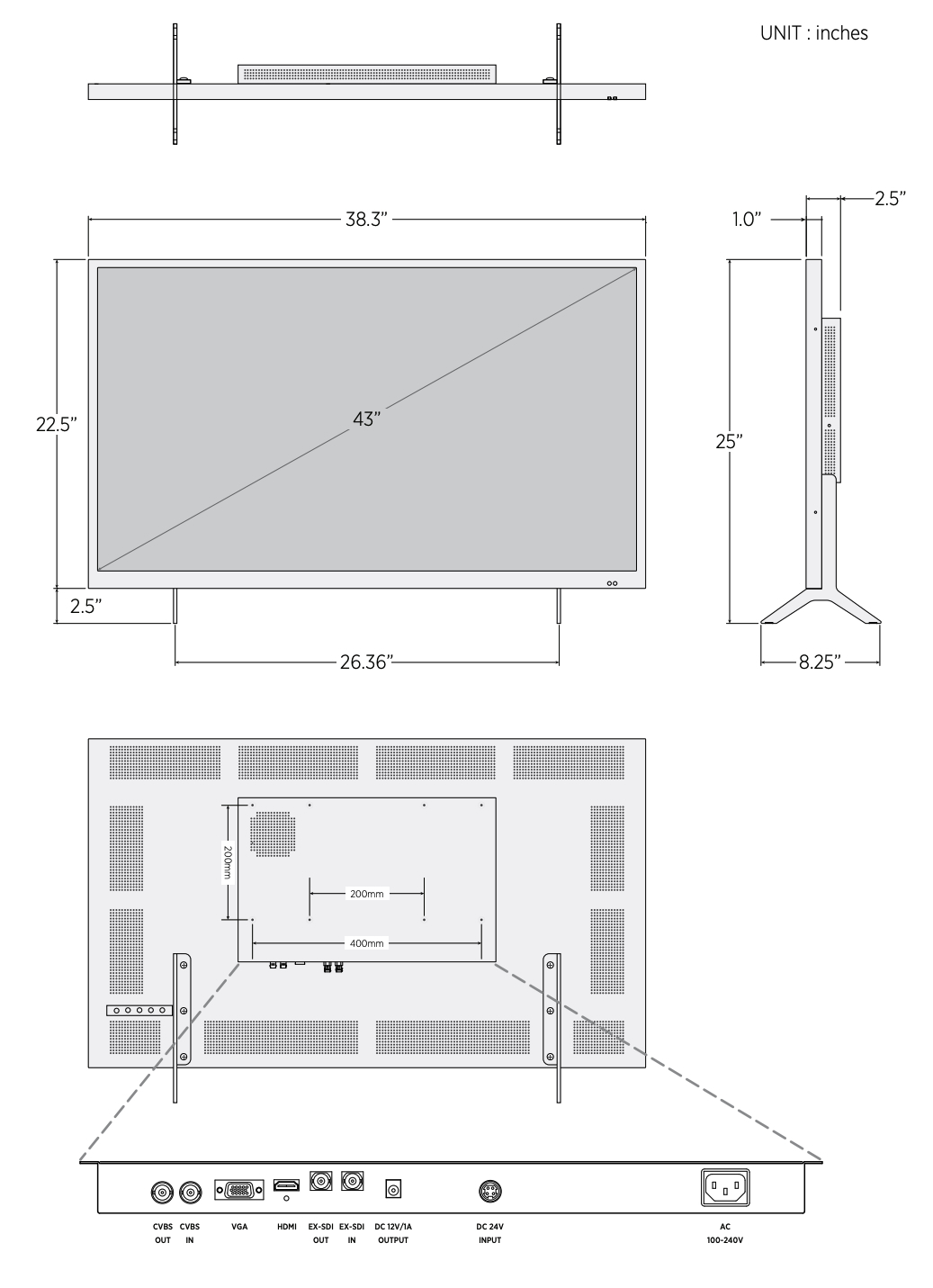

|Dimensions||38.25” (W) x 22.5” (H) x 2.5” (D) (971.55mm x 565.15mm x 63.5mm)|
|Approvals||UL, CE, FCC, RoHS|
Specifications subject to change without notice.
- VGA Cable
- HDMI Cable
- Remote Control
- Tabletop Base
- Pigtail for 24VDC Power
- Power Cord for 120VAC Power
- DVI Input (via optional DVI-to-HDMI adapter)
- Protective/Anti-Glare Glass
- Private Label
- Other Customer – Specific Modifications
