21.5 Inch Monitor
Fill out the form below to request a quote.
- Industrial-Grade 21.5″ Monitor
- Full HD Resolution: 1920 x 1080 (1080p/60)
- Video Inputs: VGA, HDMI, DVI, HD-SDI, Composite BNC Loop-Thru, DisplayPort
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- Auto Re-Start After Power Loss
- Lockable On-Screen Display Controls
- Can Be Customized to Meet Your Needs
- 3-Year Warranty

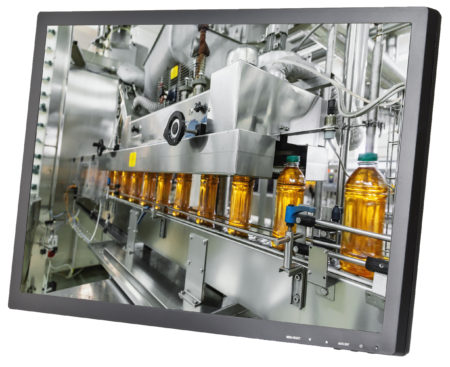

INDUSTRIAL-GRADE 21.5 INCH MONITOR
The VM-21.5 Series are 21.5 inch monitors. These industrial-grade LCD monitors offer brilliant color and superb image quality while providing the reliability and rugged performance required by demanding applications. They offer full HD resolution: 1920 x 1080 (1080p/60). It is a 16:9 aspect ratio display series. Video input connectors come in a variety of options depending on the model.
MONITORS WITH MAXIMUM RESISTANCE TO SHOCK AND VIBRATION
The VM-21.5 Series also features TRU-Vu’s exclusive TRU-Tuff treatment, which ensures maximum resistance to shock and vibration. The TRU-Tuff process includes RTV silicone on all connections and critical components; all wires are dressed, tie-wrapped and secured; and ThreadLock on all screws. This, plus the rugged powder-coated steel enclosure, ensures the VM-21.5 Series will provide years of reliable service.
21 INCH MONITORS DESIGNED FOR 24/7/365 OPERATION
The VM-21.5 Series are designed to operate 24/7/365 and are backed by our full 3-Year Warranty. This series of monitors are ideal for industrial, military, food & beverage, machine vision systems, museums, surveillance, applications. View all of our standard brightness industrial monitors for indoor operation.
BEST INDUSTRIAL LCD DISPLAY – WE ARE READY TO HELP YOU WITH YOUR SELECTION
With over 200 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. This enables you filter by your own specific search requirements. View our full line of 21.5-65″ monitors or filter monitors by standard brightness models only. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements. We also offer our 21.5″ monitors/ touch screens as Medical Grade Display solutions.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs. We will help provide crystal-clear images for your projects. Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the 21.5′′ industrial grade monitor you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||21.5" Color LCD (MVA Type); LED Backlights|
|Display Resolution||1920 x 1080 (1080p/60 Full HD)|
|Viewable Area||18.76" x 10.55" (476.6 x 268.1 mm)|
|Display Colors||16.7 M|
|Brightness||250 nits||200 nits||250 nits|
|Viewing Angle||178° (H) x 178° (V)||90° (H) x 65° (V)||178° (H) x 178° (V)|
|Response Time||5 ms Trf||5 ms Trf|
|Control||OSD (On-Screen Display) via Pushbuttons|
|Video Inputs||VGA, HDMI|
|VGA & HDMI||VGA, HDMI Composite BNC Loop-Thru|
|Audio||Rear Speakers||Optional||Rear Speakers|
|Power Requirements||12 VDC (2.1 mm Barrel Plug)/ 90-240 VAC via Included Power Supply||12VDC/100-240VAC||24VDC/100-240VAC||12 VDC (2.1 mm Barrel Plug)/ 90-240 VAC via Included Power Supply||12-24VDC|
|Mounting||Via Included Tabletop Base or 100x100mm Rear VESA Mount Holes||100x100mm Rear VESA Mount Holes (Base optional)|
|Operating Temp./Humidity||32° to 122°F (0° to +50°C); 5-90% Non-Condensing|
|Storage Temperature||-4° to +140°F (-20° to +60°C)|
|Shock||50G, Half-sine Wave, 20ms, X/Y/Z|
|Vibration||Acceleration: 1.5 G RMS; Random Wave; 10-200Hz; 30 mins Per Axis (X, Y, Z)|

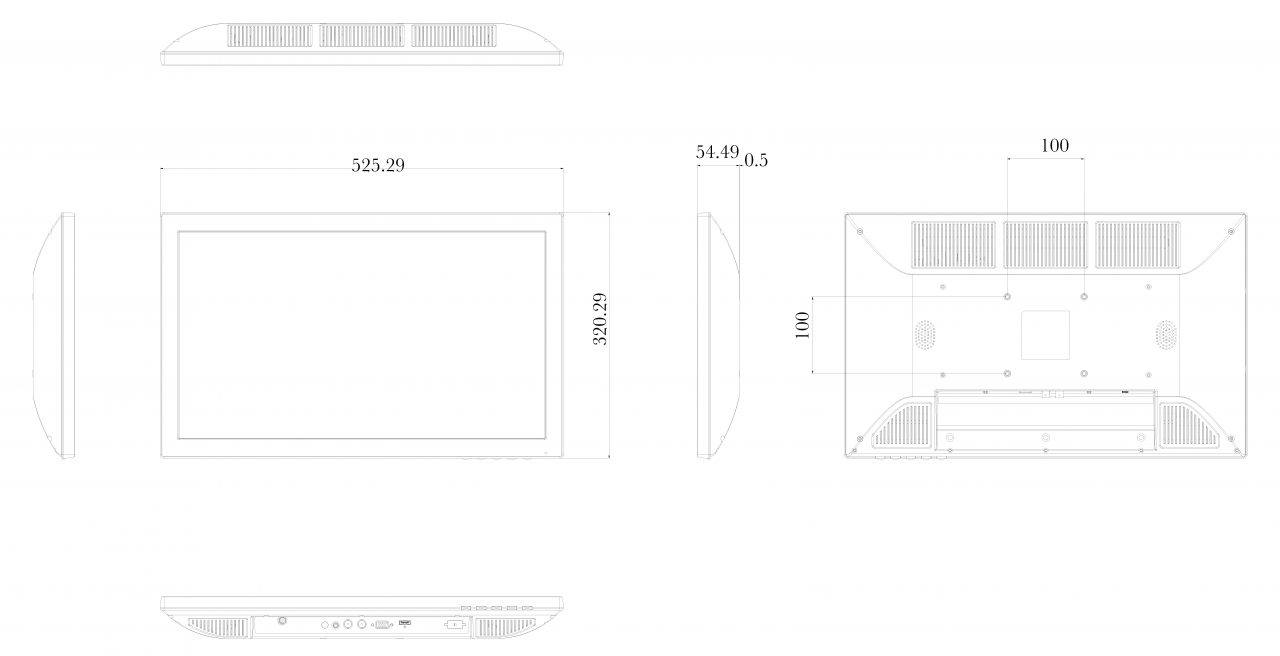

|Dimensions||20.68" W x 12.60" H x 2.18" D (525.3 x 320 x 55.4mm)|
|Weight||7.4 lbs. (3.4 Kg)|
Specifications subject to change without notice.
- 90-240VAC External Power Brick (Except VM-21.5U-NBS24)
- VGA Cable (Except VM-21.5H)
- HDMI Cable (Except VM-21.5H )
- Tabletop Base (Except VM-21.5U-NBS24, VM-21.5U-NBS)
- Audio Cable (VM-21.5R, VM-21.5U-NBS, VM-21.5U-NBS24 )
- Locking Power Pigtail (VM-21.5U-24, VM-21.5U-NBS24)
