21.5" SUNLIGHT READABLE OPEN FRAME TOUCHSCREEN
Fill out the form below to request a quote.
- Projected Capacitive Touch Screen
- Produces Clear, Sharp Images Even in Direct, Bright Sunlight
- 1,000 nits Brightness
- IP65 Edge-to-Edge All-Glass Front Surface
- Anti-Glare Tempered Glass
- Waterproof Touch Sensor Allows Wet Finger Operation
- Automated Ambient Light Sensor

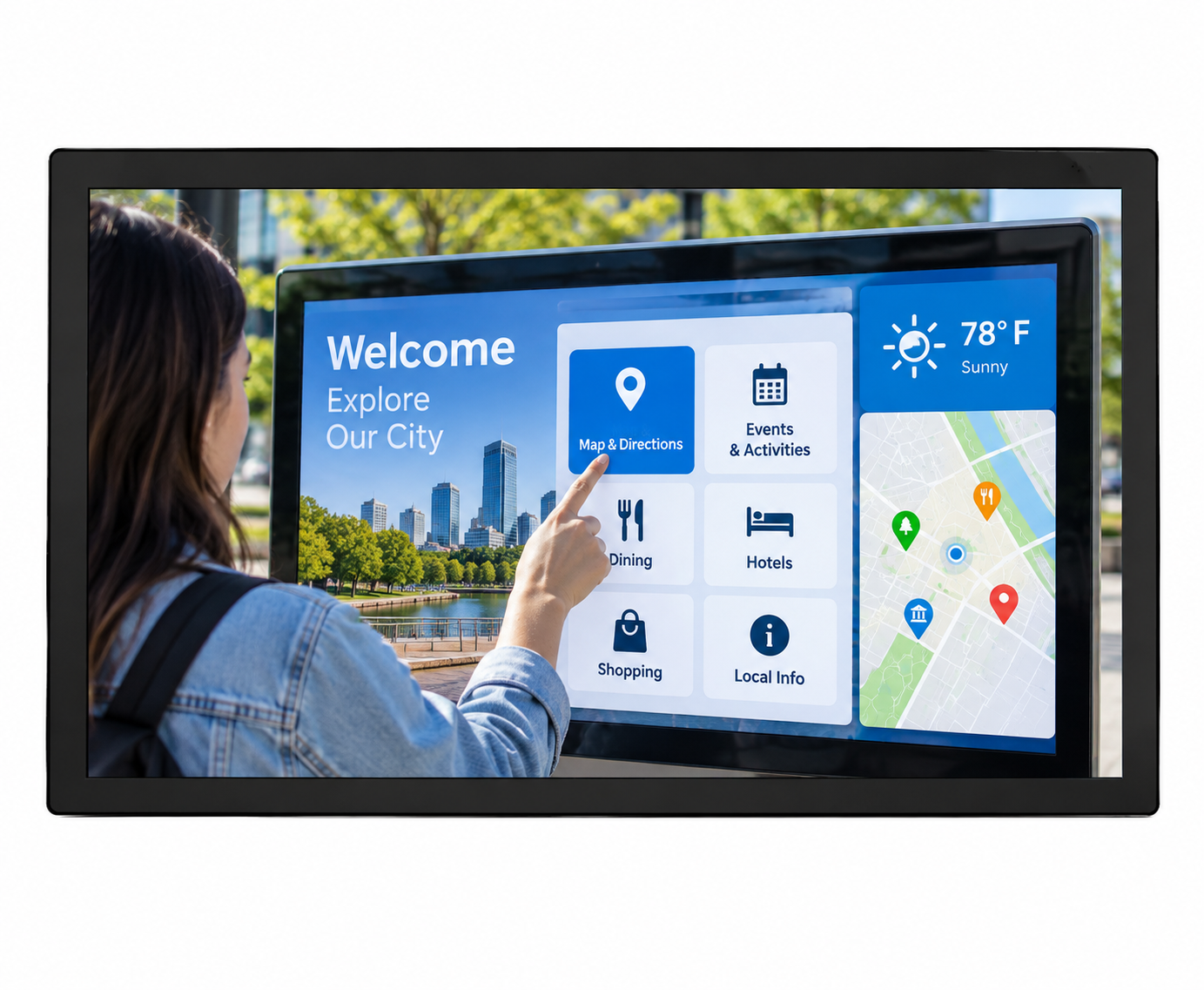

21.5″ SUNLIGHT READABLE OPEN FRAME TOUCH SCREEN
The VL-SRMTP-21.5C-OF is a 21.5″ sunlight readable touch screen. This rugged 21.5″ touch screen features 1,500 nits brightness, anti-glare glass and a 16:9 aspect ratio.
SUNLIGHT READABLE TOUCH SCREEN WITH 1000 NITS BRIGHTNESS
The VL-SRMTP-21.5C-OF is a 21.5″ sunlight readable touch screen monitor. We feature 1000 nits screen brightness and a 16:9 aspect ratio on this model. We design this 21.5″ bright touchscreen for indoor and outdoor use. Because of the high 1,000 nits brightness of the VL-SRMTP-21.5C-OF monitors, they are perfect for any high ambient-light conditions. These weather proof touch screens utilize state-of-the-art LED backlights. 1,000 nits brightness is over 3 to 5 times brighter than standard brightness monitors. Standard LCD monitors offer only 200-300 nits brightness. We feature a protective Anti-Reflective glass over the LCD panel on this model.
RUGGED 21.5″ TOUCHSCREENs
These 21.5″ 1,000 nit touch screen displays are not only bright, but extremely rugged. Built with true industrial-grade components, these outdoor panel mount touchscreens receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. We then dress all wires , tie-wrap and secure them.
Lastly, we apply ThreadLock to all screws. The durable steel enclosure will ensure maximum shock and vibration resistance. This IP65 touchscreen will easily withstand the elements outdoors.
The front face of this weatherproof touchscreen has a rating of IP65 Waterproof. It is impervious to liquids, rust and corrosion. Additionally, our VL-SRMTP-21.5C-OF has a Zero Bezel / Bezel-Less enclosure, which has no raised bezel, frame, or edges on the front face. The enclosure design feature will enable you to flush-mount this touch screen into a panel, door, wall, cabinet or enclosure.
Projected Capacitive (P-CAP) touch is similar to Surface Capacitive, but it offers two primary advantages: in addition to a dry bare finger, the VL-SRMTP-27H-OF can also be activated with wet fingers. A Projected Capacitive touch screen also enables multi-touch activation. For instance, this will allow up to 10 simultaneous touch points. It is one of the 5 most popular types of touch screens available.
OUR TECHNICAL EXPERTS ARE READY YOU HELP YOU FIND THE BEST OUTDOOR DISPLAY
See our full line-up of industrial-grade Sunlight Readable and Daylight Readable monitors. This highlights all of our high brightness monitors. You’ll find the sunlight readable touch screens in all the sizes and configurations available. Our full range of waterproof monitors and touch screens are available for any outdoor use. With over 200 LCD monitors and touch screens on our site, selecting the ideal weatherproof touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own important features. For instance, you may view only 4:3 aspect ratio monitors, 13 – 19 inch monitors, or only panel mount monitors. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||21.5” Color LCD; LED Backlights|
|Touch Screen Type||Projected Capacitive|
|Resolution||1920 x 1080p|
|Viewing Area||18.74” (W) x 10.56” (H) (476.1 x 268.1 mm)|
|Display Colors||16.7 M|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||5 msec (Trf)|
|Video Input||VGA & DVI|
|Power Requirement||24VDC / 90-240VAC via Included AC Adapter|
|Enclosure Rating||IP65 Front|
|Mounting||Rear VESA 75x75mm & 100 x 100mm Mounting Holes (optional L-Brackets available for flush-mounting)|
|Operating Temperature||-4˚ to 158˚F (-20˚ to +70˚C)|

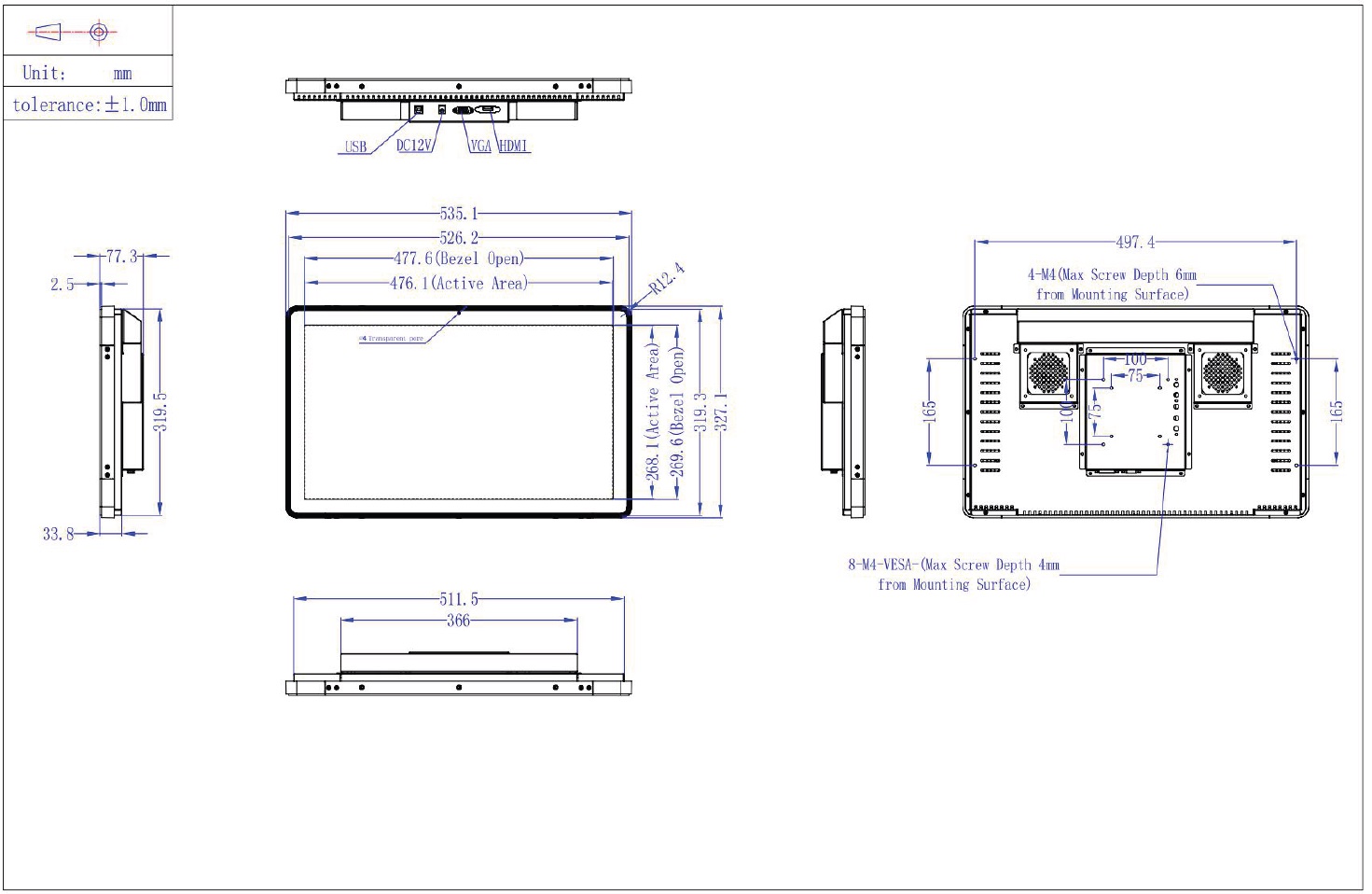

|Dimensions||23.07" W x 12.88" W x 3.04" D (535.1 W x 327.1 H 77.3 D mm)|
Specifications subject to change without notice.
- 100-240 VAC Power Supply
- VGA Cable
- USB Cable
- Private Label
