32” Sunlight Readable Outdoor Monitor
Fill out the form below to request a quote.
- Sunlight-Readable Outdoor Monitor
- 1,000 nits Brightness
- Full HD Resolution: 1920 x 1080 (1080p/60)
- NEMA 4X Water Resistant Stainless Steel Enclosure (Except Bottom)
- Video Inputs: VGA, HDMI, DisplayPort
- Anti-Reflective Glass
- Auto Re-Start After Power Loss
- Can Be Customized To Meet Your Needs
- 3-Year Warranty

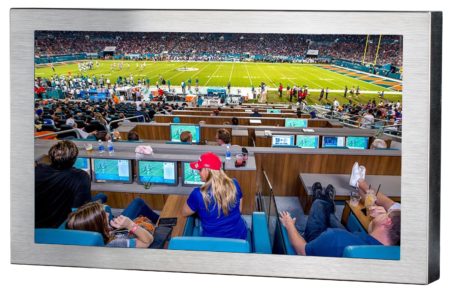

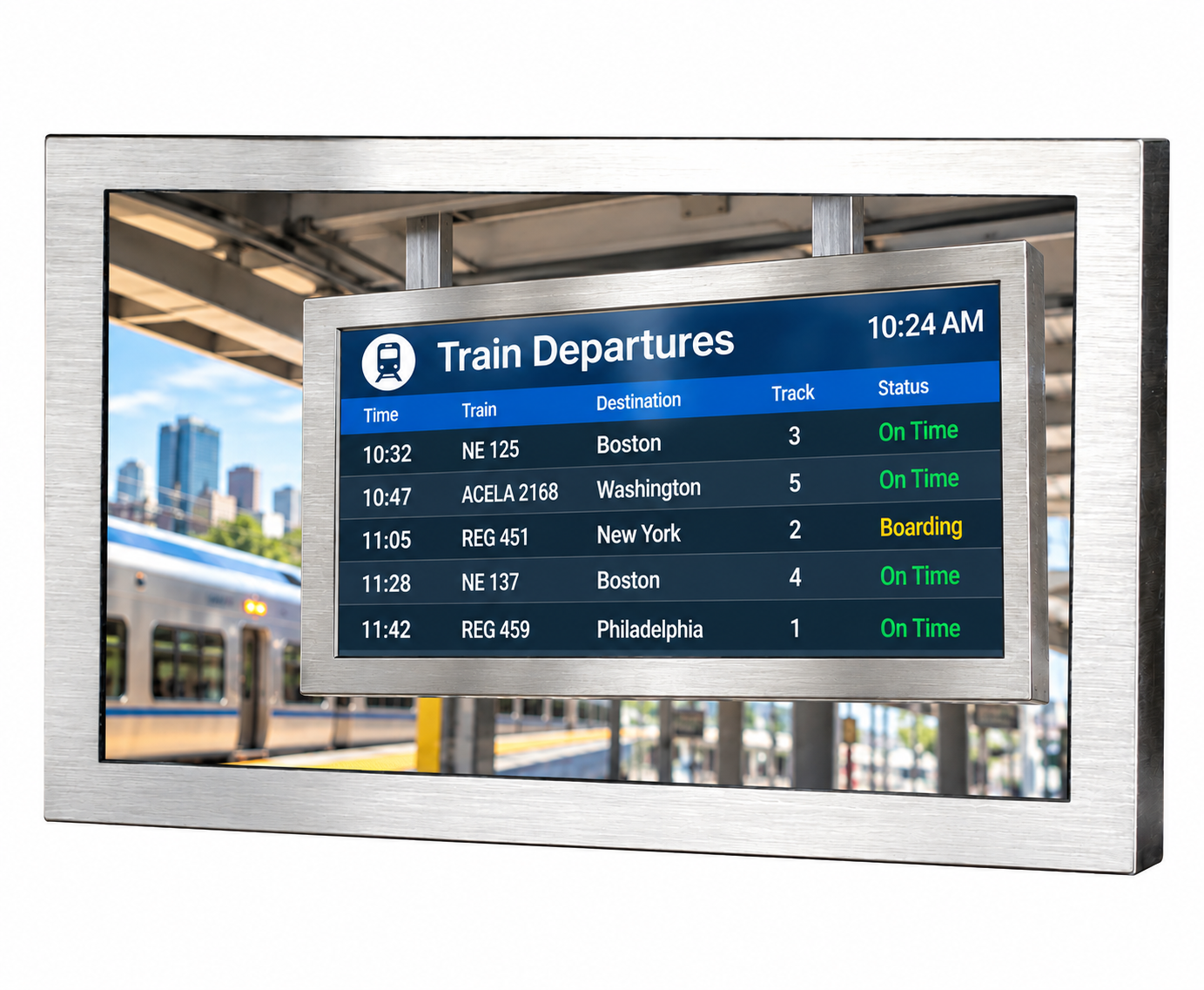

32″ SUNLIGHT OUTDOOR MONITOR
The SRMW-32 Series are 32″ sunlight outdoor monitor displays. They feature at least 1000 nits brightness. They are full HD Resolution. Additionally, this waterproof monitor has a 16:9 aspect ratio. We design this 32″ 1,000 nits display for use in direct bright sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. This display produces at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even with bright sunlight on the face of the screen. The SRMW-32R-P model is available in portrait orientation.
RUGGED INDUSTRIAL 32″ waterproof LCD MONITORS
These 32″ sunlight readable, waterproof, outdoor displays are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Furthermore, we apply ThreadLock to all screws. Lastly, the rugged NEMA 4X weatherproof stainless steel enclosure ensures maximum shock and vibration resistance. (vent holes are on the bottom)
32″ WATERPROOF NEMA 4X OUTDOOR MONITOR
These monitors feature a rugged waterproof NEMA 4X stainless steel enclosure (except bottom) . It is impervious to liquids, rust or corrosion. It is rated NEMA 4X, and features protective Anti-Reflective glass over the LCD panel. The 32″ outdoor monitors will withstand the elements outdoors. It will also endure wash-downs in industrial and food processing plants. For instructions on maintaining water tight integrity, follow these procedures: Cable Entry for TRU-Vu Waterproof Monitors (PDF)
32″ WATERPROOF MONITORS WITH HIGH OPERATING TEMPERATURES
We design the SRMW-32 Series of high brightness displays to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, some of these monitors will operate in temperatures down to +32°F (0°C). They will also withstand brutal heat. Moreover, operating temperatures go up to +158°F (+70°C). The rugged stainless steel NEMA 4X waterproof enclosure assures years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
WATERPROOF OUTDOOR MONITORS DEPLOYED WORLDWIDE
Our 32″ outdoor monitors with 1,000 nit screen brightness are found in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment have benefitted. They are also deployed in the inspection, marine, oil & gas, industrial and transportation industries. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
We specifically design all TRU-Vu industrial LCD monitors for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components . We provide high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Our 3-Year Warranty guarantees you of reliable worry-free operation and service to back it up.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST OUTDOOR LCD DISPLAY
With over 200 LCD monitors and touch screens on our site, selecting the ideal equipment, or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by features important to you. See our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This filters all of our monitors by high brightness features. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. All waterproof monitors and touch screens can be found here. View by size 21.5″ to 65″ monitors or visit our wide range of LCD monitor mounts and stands to complete your installation. Custom OEM LCD Displays and Private Label Monitors are also an option if you have very specific requirements.
Finally, our team members are ready to help! We can determine the exact waterproof LCD display that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the waterproof LCD monitor or touch screen you receive will be and do everything you had hoped it would!
Lastly, If you prefer, fill out a quick form with your requirements, and we will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||32” Color MVA Panel; LED Backlights|
|Display||1920 x 1080 (1080p/60 Full HD)|
|Viewable Area||27.48” (W) x 15.46” (H) (698.4 x 392.85 mm)|
|Pixel Pitch||0.364mm x 0.364mm|
|Orientation||Landscape Mode||Portrait Mode|
|Display Colors||16.7 M|
|Brightness||1,500 nits||1,000 nits|
|Ambient Light Sensor||Standard||Optional
|Viewing Angle||178° (H) x 178° (W)|
|Response Time||8 msec (gray to gray)|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|VIdeo Inputs||VGA, HDMI, DisplayPort|
|Power Requirement||24VDC via included 4 PDIN Pigtail/ 90-240VAC||90-240 VAC|
|Power Consumption||100 Watts|
|Enclosure||Stainless Steel (Vent Holes On Bottom)|
|Enclosure Rating||NEMA 4X (Except Bottom)|
|Mounting||200 x 200 mm Rear VESA Mount Holes (M4 x 6mm Screws)|
|Operating Temperature||32° to 158° F (0 to +70° C)|
|Shock||50 G (11 msec, ½ sine)|
|Vibration||1.5 G RMS 10-300Hz|

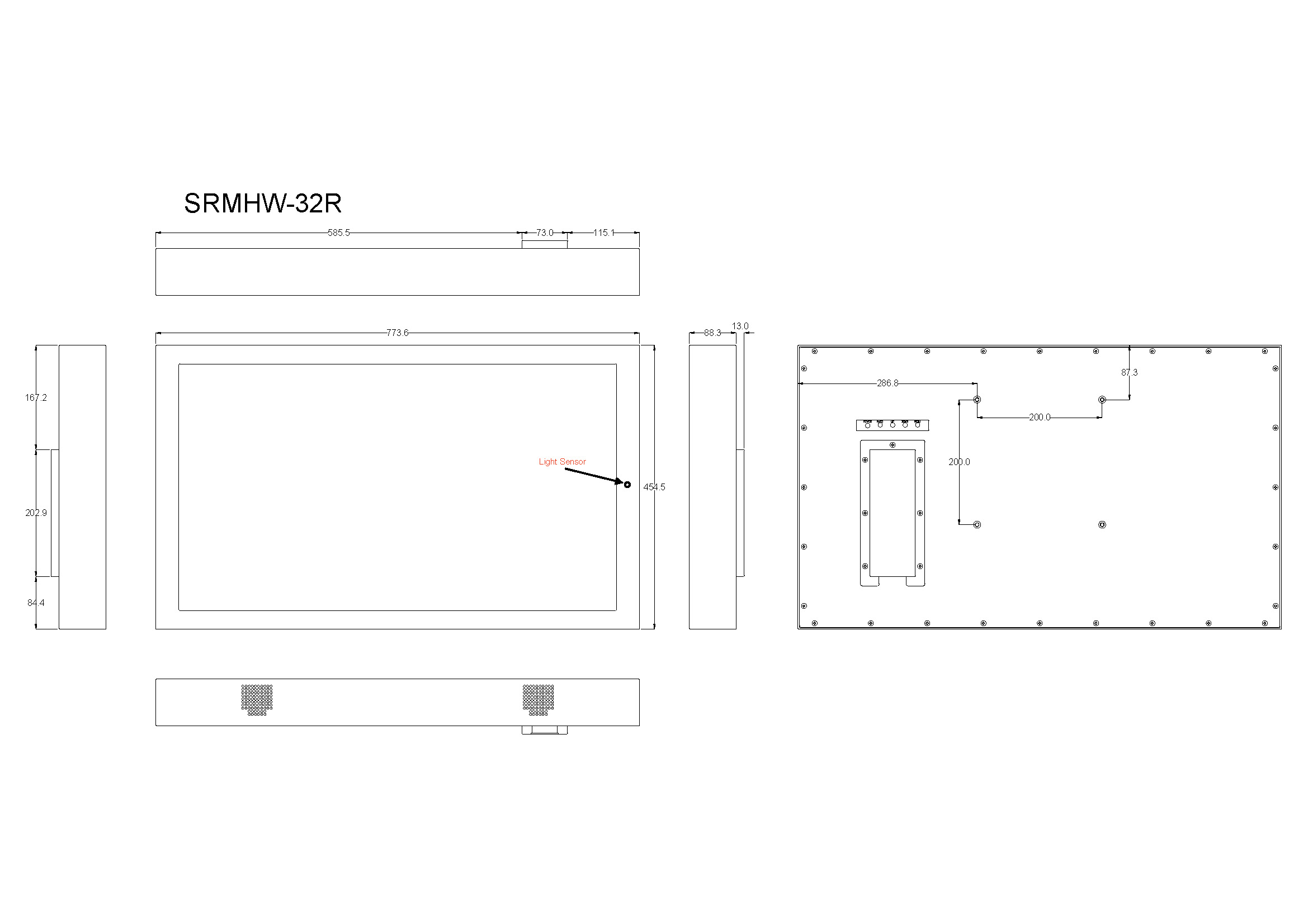

|Dimensions||30.45” (W) x 17.89” (H) x 3.46” (D) (773.6 x 454.5 x 79.4 x 88 mm)|
|Weight||39.2 lbs (17.78 kg)|
Specifications subject to change without notice.
- AC Power Cord
- VGA Cable
- HDMI Cable
- 4 Pin DIN Power Pigtail Cable (SRMW-32R-SS only)
- DVI Input
- Composite (BNC) Input
- Wall Mount Brackets
- Private Label
- Other Customer-Specific Modifications
