19" Sunlight Readable LCD Optically Bonded
Fill out the form below to request a quote.
- 1,000 to 1,200 nits Brightness Produces Clear, Sharp Images Even in Direct Bright Sunlight
- Optical Bonding Improves Contrast Ratio
- LED Backlights and Protective Anti-Reflective Glass
- Lockable OSD Controls
- TRU-Tuff Treatment for Maximum Shock/Vibration Resistance
- 3-Year Warranty

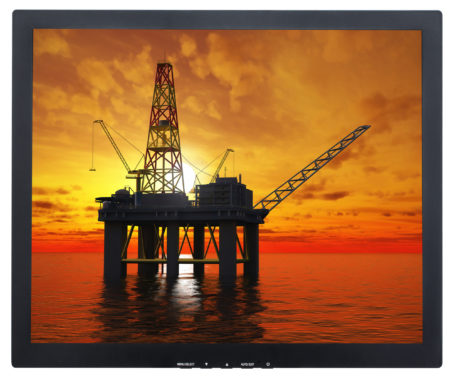

19″ SUNLIGHT READABLE LCD WITH HIGH BRIGHTNESS
The SRMOB-19 Series are 19″ sunlight readable LCD displays with the addition of Optical Bonding. They feature at least 1000 nits brightness and go up to 1,200 nits brightness! They are 4:3 aspect ratio. We design the SRMOB-19 Series 19″ 1000 to 1200 nits displays for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
MONITORS WITH OPTICAL BONDING
The SRMOB-19 Series 19″ sunlight readable LCD feature Anti-Reflective glass to protect the LCD panel. The glass also reduces unwanted surface reflections. However, the glass also introduces internal reflections. Therefore, TRU-Vu daylight readable monitors include Optical Bonding. This process injects an optical-grade resin into the air gap between the LCD panel and the glass, and completely fills the gap. The Optical Bonding eliminates the internal reflections and increases the contrast ratio, thereby greatly improving image quality. Optical Bonding also eliminates moisture and condensation beneath the glass.
RUGGED INDUSTRIAL MONITORS
These 19″ sunlight readable LCD are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged powder-coated steel enclosure ensures maximum shock and vibration resistance for this rugged 1000 nit monitor. This series also has options for ABS and Stainless Steel enclosures.
EXTREME OPERATING TEMPERATURE MONITOR
We design the SRMOB-19″ High Brightness Display Series to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to -22°F (-30°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 185°F (85°C). The rugged powder coated steel, ABS or Stainless steel enclosures assures these 19″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
OUR TECHNICAL EXPERTS ARE READY TO ASSIST YOU IN FINDING THE BEST MONITOR

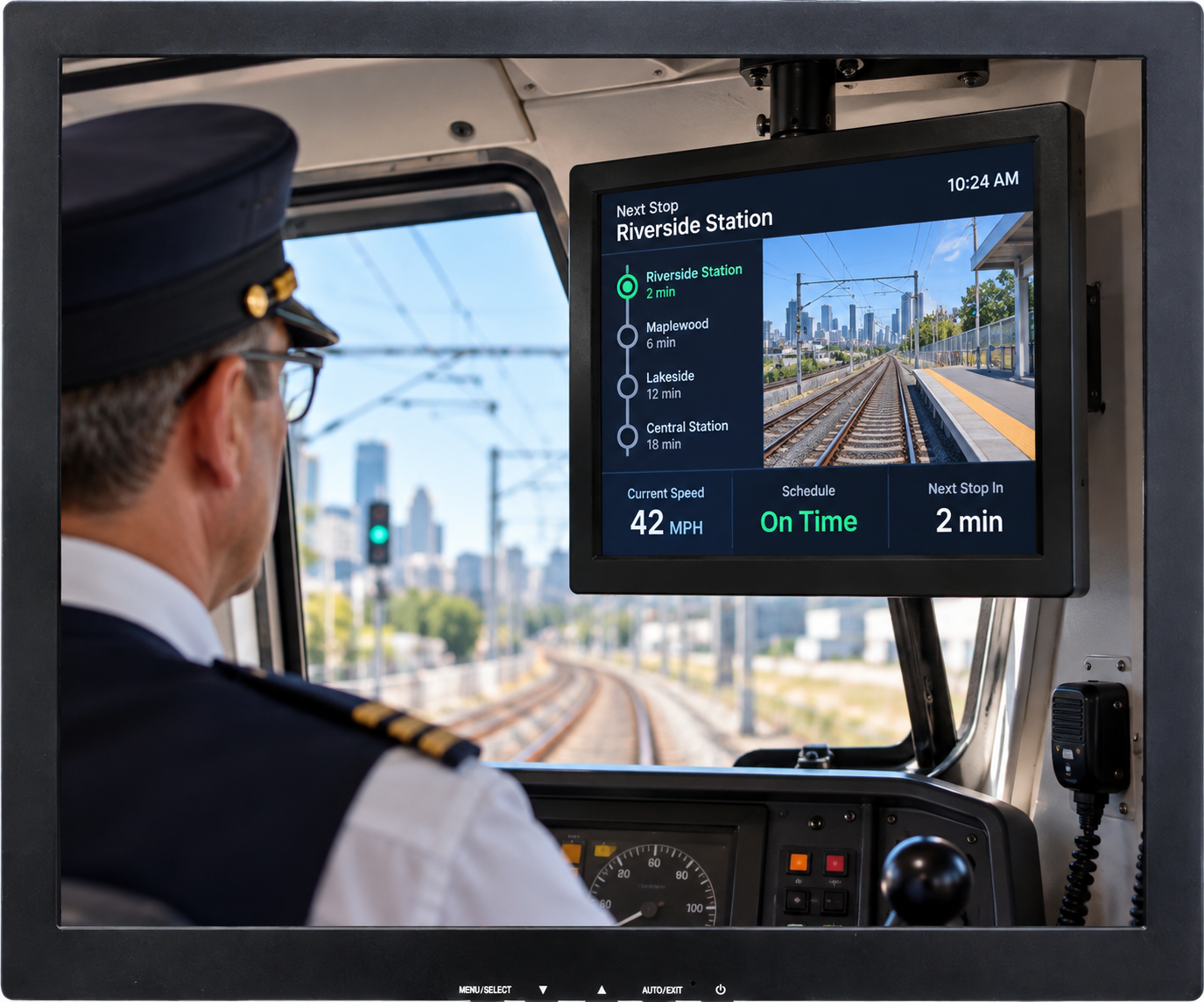

Our 19″ sunlight readable LCD 1000 nit monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit. They are also deployed in inspection, marine cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
See our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. We offer over 540 models of touch screens and monitors. Use our Advanced Search Tool to help you hone down the choices. You may filter by features important to you. See all mid-sized monitors, or view only those monitors that operate on 24VDC. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Feel free to give us a call to discuss. We are here to listen and understand your application so that we may provide the best possible solution. We want your selection to be everything you hoped it would be.
Scroll left & right to view full table.
|LCD Panel||19” Color TFT LCD Monitor|
|Resolution||1280 x 1024 (SXGA)|
|Image Size (mm)||14.81” (W) x 11.85” (H) (376.17 x 300.98 mm)|
|Pixel Pitch||0.294mm x 0.294mm|
|Display Colors||16.7 Million|
|Aspect Ratio||4:3 (5:4)|
|Brightness||1,000 nits||1,200 nits|
|Viewing Angle||170˚ (H) x 160˚ (V)|
|Response Time||5 msec Trf||10 msec Trf||5 msec Trf|
|Control||OSD (On-Screen Display) via Front Panel Push buttons|
|Video Inputs||VGA, Composite BNC Loop-Thru (1 BNC Input, 1 BNC Output) NTSC/PAL Auto-Recognition||VGA, HDMI, BNC Loop-thru, NTSC/PAL Auto-Recognition||VGA, Composite BNC Loop-Thru (1 BNC Input, 1 BNC Output) NTSC/PAL Auto-Recognition|
|In / Output Impedance||75Ω / Auto Terminating Output|
|Audio||Dual Front Speakers||Optional|
|Power Requirement||12 VDC (90-240 VAC with|
Included Power Brick
|12-24 VDC||90-240 VAC|
|Power Consumption||48 Watts|
|Enclosure||ABS||Powder-Coated Steel||Stainless Steel|
|Mounting||Included Tabletop Base or 75 x 75 mm VESA Hole Pattern|
on Rear Panel
|75 x 75mm VESA Hole Pattern on Rear Panel|
|Operating Temperature||32˚ to 122˚F / (0˚ to +50˚C)||-22˚ to +185˚F / (-30˚ to +85˚C)|
|Shock||50 G (20 msec, 1/2 sine)|
|Vibration||1.5G RMS 10-200 Hz|

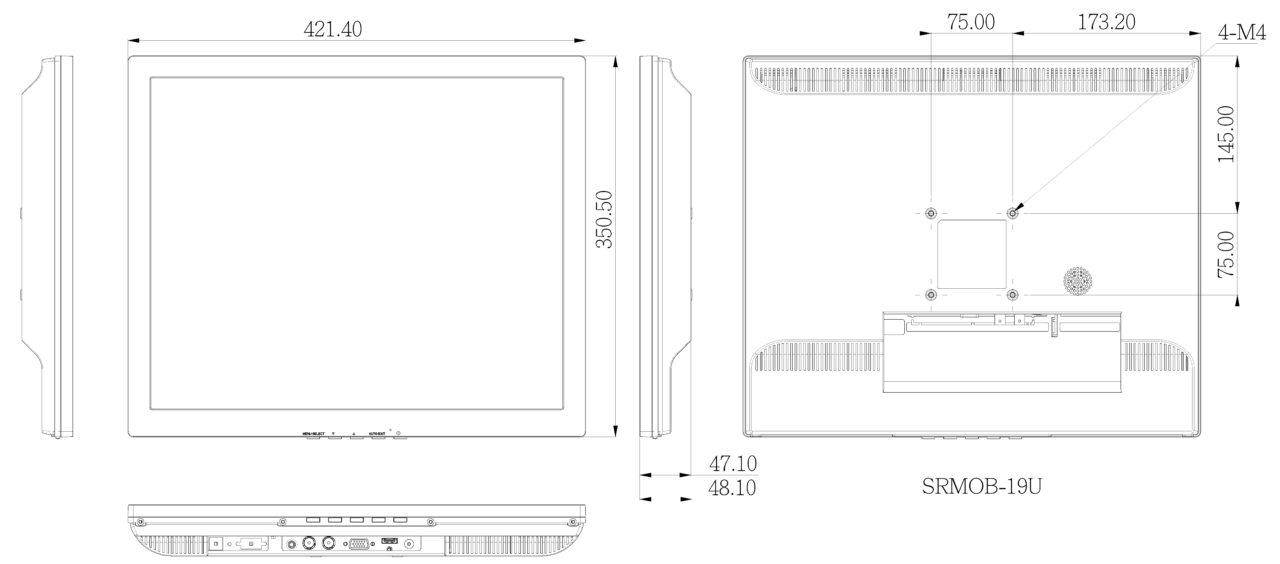

|Dimensions||16.5” (W) x 14.83” (H) x 1.95”|
(D) (419.09 (W) x 376.6 (H) x 49.52 (D) mm)
|Weight||11 lb / 5 kg||TBD|
Specifications subject to change without notice.
- 90-240 VAC Power Brick
- VGA Cable
- Audio Cable (SRMOB-19B Model Only)
- Tabletop Base (SRMOB-19B Model Only)
- S-Video, HDMI, or DVI Video Inputs
- Panel Mount
- Rack Mount Bracket MB-Rack-19
- Open-Frame Configuration
- Private Label
- Other Customer – Specific Modifications
