13.3” Waterproof Sunlight Readable Touch Screen
Fill out the form below to request a quote.
- 1,500 nits Brightness
- Projective Capacitive Touch
- Produces Clear, Sharp Images Even in Direct Bright Sunlight
- Waterproof NEMA 4X Stainless Steel Enclosure
- Lockable On-Screen Display (OSD) Controls
- Auto Re-Start After Power Loss
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- Ambient Light Sensor Adjusts Brightness Automatically
- 3-Year Warranty

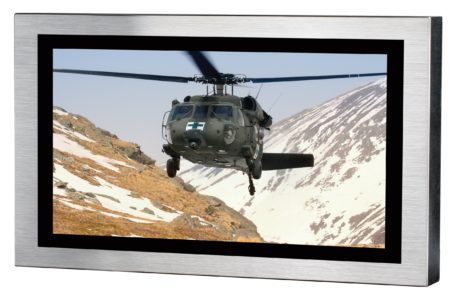

SUNLIGHT READABLE OUTDOOR WATER PROOF TOUCH SCREEN
The SRMHTPW-13.3U are 13″ waterproof touch screen monitors. These touchscreen monitors feature 1500 nits brightness . These outdoor waterproof touch screens have a 16:9 aspect ratio. We design this 13″ outdoor touch display for use in direct bright sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The 1500 nits brightness is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This full HD resolution will provide you with crystal-clear images, even with direct sunlight on the face of the screen.
PROJECTED CAPACITIVE TOUCH TECHNOLOGY
They are Projected Capacitive touch technology. Consequently, they can be activated via an exposed finger, and also when using thin latex or cotton gloves. The multi-touch capability allows up to 10 simultaneous finger operations to select zoom, flick, and other functions. It is also unaffected by dirt, grease or moisture on the glass surface.
RUGGED TOUCH SCREEN DISPLAY
These 13″ waterproof touch screen with high brightness are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged Waterproof aluminum enclosure ensures maximum shock and vibration resistance.
WATERPROOF OUTDOOR TOUCH SCREEN
These touchscreen monitors feature a rugged waterproof enclosure. It is a waterproof NEMA 4X Stainless Steel enclosure. It is impervious to liquids, rust or corrosion. These 13″ outdoor touch screen monitors will withstand the elements outdoors. They are also ideal for and wash-down environments. Industrial plants and food processing plants utilize this type of waterproof touch-screen for their challenging environments. For instructions on maintaining water tight integrity, follow these procedures: Cable Entry for TRU-Vu Waterproof Monitors (PDF)
13″ OUTDOOR TOUCHSCREEN – EXTREME OPERATING TEMPERATURES
We design the SRMHTPW-13.3U 13″ waterproof touch screen to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to -4°F (-20°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 158°F (+70°C). Additionally, the rugged stainless steel enclosure assures these 13″ outdoor touch screens will provide years of reliable performance. Specifically, typical MTBF for these monitors is 50,000 hours.
OUTDOOR TOUCH SCREENS DEPLOYED WORLDWIDE
Our 13″ outdoor touch screens have been deployed in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit from our large touchscreen monitors. They are also deployed in the inspection, marine, energy, and industrial, as well as transportation industries. Furthermore, TRU-Vu monitors are backed by our full 3-Year Warranty. This will ensure you of many years of reliable service.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE BEST OUTDOOR TOUCH SCREEN SOLUTION
TRU-Vu has over 200 LCD monitors and touch screens on our site. Selecting the ideal equipment or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own specific search requirements. For further information, view Sunlight Readable and Daylight Readable to see our full line-up of industrial-grade. This specifically highlights all of our high brightness monitors and sunlight readable touch screens. You may view them in all the sizes and configurations available. For instance, view all waterproof monitors and touch screens, or see only touch screen monitors. Sort by size 13-19″ monitors and complete your installation with our Brackets, stands and mounts. Custom OEM LCD Displays and Private Label Monitors are also an option if you have very specific requirements.
We design all TRU-Vu industrial LCD monitors for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components. We also provide high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements. We will guide you to the proper models that will work best.
Scroll left & right to view full table.
|LCD Panel||13.3” AHVA LCD; LED Backlights|
|Touch Screen Type||Projected Capacitive Touch|
|Resolution||1920 x 1080 (1080P/60 Full HD)|
|Viewable Area||11.55” (W) x 6.50” (H) (293.472 x 165.078 mm)|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||25msec Trf|
|Control||OSD (On-Screen Display) via Rear Pushbuttons|
|Video Inputs||VGA, HDMI, Composite (BNC Loop-Thru)|
|Power Consumption||10.4 W (866mA @ 12 VDC)|
|Enclosure Rating||NEMA 4X|
|Mounting||100 x 100 mm Rear VESA Mount Holes|
|Operating Temperature||-4° to +158° F (-20° to +70° C)|
|Shock||50 G (20 msec, Half-sine Wave)|
|Vibration||1.5GRMS 10-200 HZ|
Specifications subject to change without notice.
- HDMI Cable
- 2.5mm Locking Power Pigtail
- Optical Bonding
- Lightweight Aluminum Enclosure
- Waterproof Outdoor Wall Mount Bracket (MBX-670)
