15” Sunlight Readable Optically Bonded Monitors
Fill out the form below to request a quote.
- Produces Clear, Sharp Images Even in Direct Bright Sunlight
- 1,500 nits Brightness
- Optical Bonding For Increased Contrast Ratio
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- Protective Anti-Glare Glass
- Auto Re-Start After Power Loss
- 3-Year Warranty
DISCOUNT AVAILABLE: SRMHOB-15B is on Sale

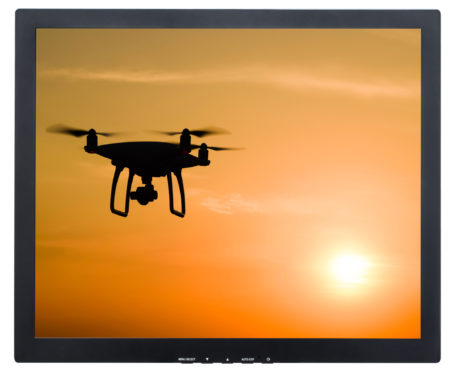

15″ HIGH BRIGHTNESS LCD
The SRMHOB-15 Series are 15″ high brightness LCD with the addition of Optical Bonding. They feature at least 1500 nits brightness and a 4:3 aspect ratio. We design the SRMHOB-15 Series 15″ for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,500 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. The result is an amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
OPTICALLY BONDED DISPLAY
The SRMHOB-15 Series 15″ high brightness LCD feature Anti-Reflective glass to protect the LCD panel. The glass also reduces unwanted surface reflections. However, the glass also introduces internal reflections. Therefore, TRU-Vu daylight readable monitors include Optical Bonding. This process injects an optical-grade resin into the air gap between the LCD panel and the glass. This completely fills the gap. The Optical Bonding eliminates the internal reflections. It also increases the contrast ratio, thereby greatly improving image quality. Optical Bonding also eliminates moisture and condensation beneath the glass.
RUGGED INDUSTRIAL MONITORS
These 15″ 1500 nit displays are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged powder-coated steel or ABS enclosure ensures maximum shock and vibration resistance for this rugged 1500 nit monitor.
EXTREME OPERATING TEMPERATURE DISPLAYS
We design the SRMHOB-15″ High Brightness Display Series to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to 32°F (0°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 150°F (60°C). The rugged powder coated steel enclosure assures these 15″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
OUR EXPERTS WILL HELP YOU FIND THE BEST 15″ MONITOR FOR YOUR APPLICATION

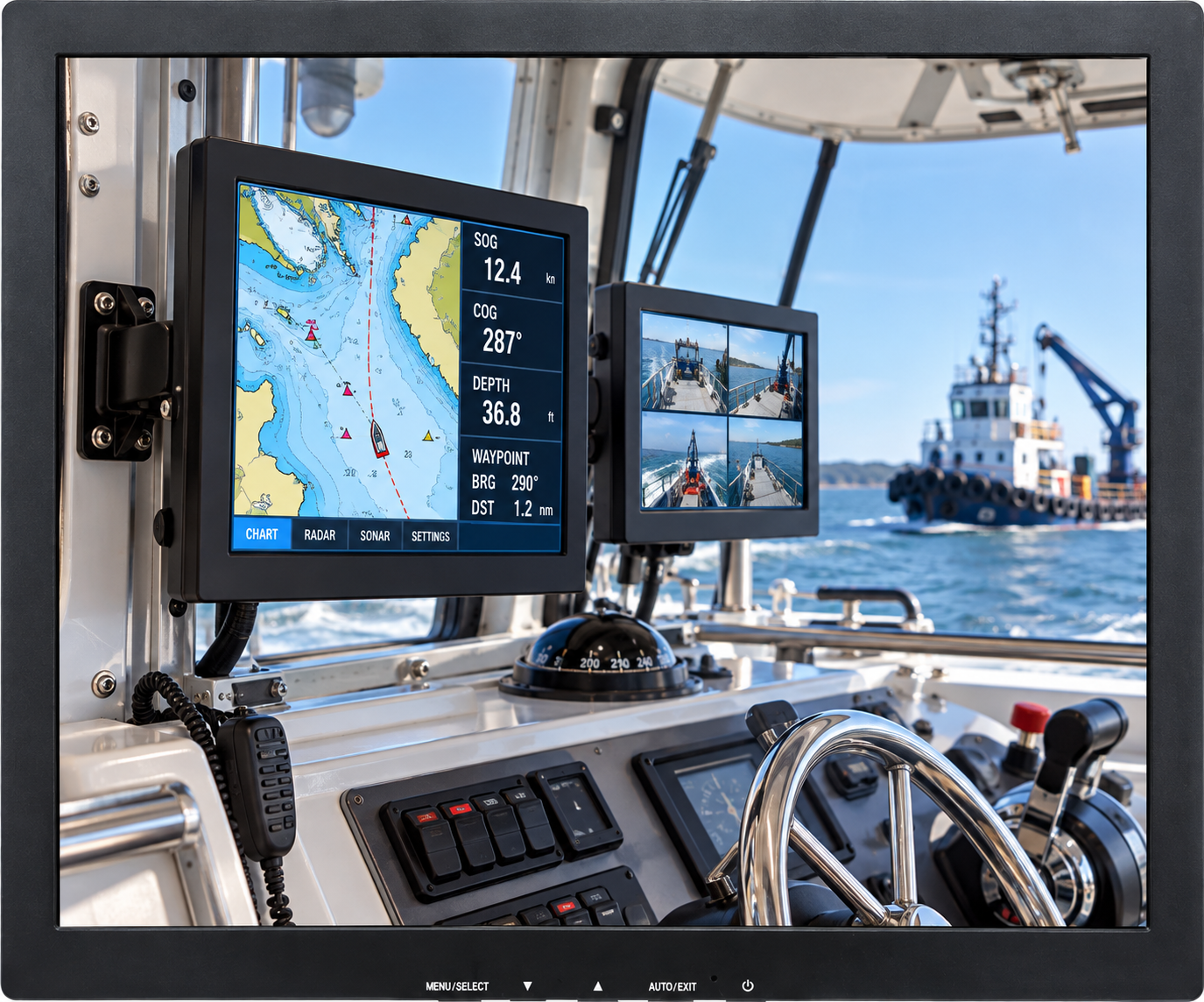

Our 15″ high brightness LCD 1500 nit monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit. They are also deployed in inspection, marine cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
See our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. Shop by size 13″ – 19″ Monitors. TRU-Vu can provide modified or Custom OEM LCD Displays. Private Label Monitors are also an option if you have very specific requirements.
Scroll left & right to view full table.
|LCD Panel||15” Color LCD; LED Backlights|
|Resolution||1024 x 768 (XGA)|
|Viewable Area||11.97” (W) x 8.98” (H) (304.12 x 228.09 mm)|
|Display Colors||16.2 M|
|Viewing Angle||160° (H) x 150° (V)||170° (H) x 160° (V)|
|Response Time||8 msec Trf|
|Control||OSD (On-Screen Display) via Front Panel Pushbuttons|
|VIdeo Inputs||VGA, Composite (BNC Loop-Thru), NTSC/PAL Auto-Recognition||VGA, S-Video, Composite (BNC) NTSC/PAL Auto|
|In/Output Impedance||75Ω / Auto Terminating Output|
|Audio||Optional Front Speaker|
|Power Requirement||3-36 VDC||12 VDC (2.1mm Barrel Plug); 90-240 VAC via Included Power Brick|
|Power Consumption||40 Watts Peak, 30 Watts Continuous|
|Mounting||Rear 75x75 VESA Mount Holes||Included Tabletop Base or Via 75x75mm Rear VESA Mount Holes||Rear 75x75VESA Mount Holes|
|Operating Temperature||+32º to +149º F (0º to +65º C)||+32º to +140º F (0º to +60º C)|
|Shock||50 G (20 msec, ½ sine)|
|Vibration||1.5G RMS 10-200 HZ|
|Dimensions||13.66” (W) x 10.87” (H) x 1.78” (D) (347 x 276 x 45.2 mm)||TBD|
|Weight||6.35 lbs. (2.88 kg)||TBD|
Specifications subject to change without notice.
- 90-240 VAC Power Brick (SRMHOB-15B, SRMHOB-15S, SRMHOB-15U-M Only)
- VGA Cable
- Tabletop Base (SRMHOB-15B, SRMHOB-15S Only)
- Automated Ambient Light Sensor
- DVI Video Input
- Tabletop Base (Optional on SRMHOB-15B-36, SRMHOB-15U-M)
- Dim-to-Black Hotkeys
- Panel Mount
- Open-Frame Configuration
- Private Label
- Other Customer – Specific Modifications
