10.4” Daylight Readable Outdoor LCD Displays
Fill out the form below to request a quote.
- Optical Bonding Produces Clear, Bright Images Even in Bright Daylight Conditions
- Anti-Glare Protective Outer Glass
- TRU-Tuff Ensures Maximum Shock & Vibration Resistance
- Auto Re-Start After Power Loss
- Rugged Steel Enclosure
- Can Be Customized To Meet Your Needs
- 3-Year Warranty

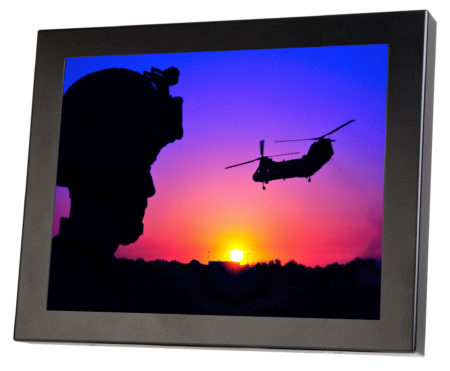

10.4″ OUTDOOR MONITOR
The VMOB-10.4 Series is an optically-bonded 10.4″ outdoor monitor which is a daylight viewable display. We design it for use as an outdoor screen in indirect sunlight. It is recommended for indoors where high ambient light decreased the view-ability of standard LCD monitors. The VMOB-10.4 Series features a 4:3 aspect ratio. Additionally, this 10.4″ outdoor monitor display features an extremely wide operating temperature range. It has rear VESA mount holes, and our 3 year warranty.
What is Optical Bonding?
Some monitors have a sheet of glass over the LCD panel. This protects the panel from accidental or intentional damage. However, the glass also produces unwanted glare and reflections. Internal reflections in the air gap between the glass and the LCD panel diminish image quality even further. In order to combat this, monitors are optically bonded.
Optical bonding is the process of laminating protective glass or a touch screen panel to the LCD panel. An optical-grade resin is inserted between the glass and LCD. This completely fills the air gap. It will not only eliminate the internal reflections, but increase the contrast ratio. This makes the screen much more viewable in bright light conditions. Optical bonding will also eliminate internal moisture and condensation. Moreover, it will make the monitor more rugged and durable. Lastly, an Anti-Reflective coating is applied to the outside of the glass. Consequently, this will drastically reduce glare and surface reflections.
Optical bonding ensures monitors will be highly viewable in bright, indirect sunlight. If sunlight is falling directly onto the face of the monitor, our SRM or SX Series of Sunlight Readable monitors would be most advantageous. Our Sunlight Readable monitors provide 1,000 nits to 2,500 nits brightness. They are for use in direct sunlight.
EXTREME OPERATING TEMPERATURES
We design these daylight viewable screens to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these daylight monitors will survive and thrive. To clarify, some of these monitors will operate in temperatures down to -22°F (-30°C). They will also withstand brutal heat. Moreover, operating temperatures go up to +176°F (+80°C). Additionally, the rugged powder coated steel enclosure will assure years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours. These daylight readable lcd displays are also available with an optional waterproof enclosure.

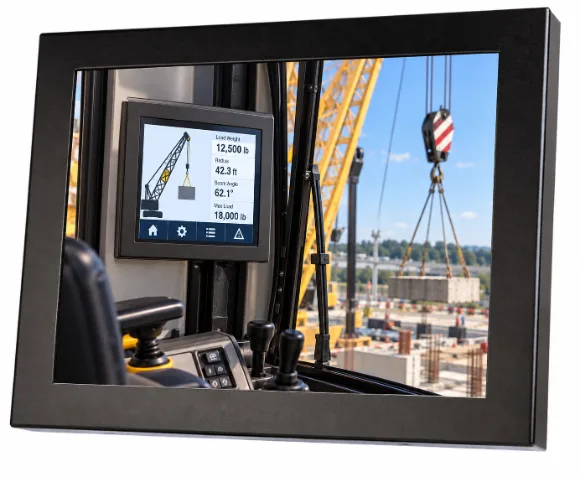

Our 10.4″ outdoor lcd display are deployed in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit. You will also find them in the inspection, marine, oil & gas, industrial and transportation industries. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service. See all of our small monitors between 7 and 12 inches for further selections.
View our full line-up of industrial-grade Sunlight Readable and Daylight Readable monitors and touch screens. This filters all of our monitors by high brightness features. Additionally, you’ll find the sunlight readable monitors in all the sizes and configurations available. All waterproof monitors can be displayed and viewed on one page.
We specifically design all TRU-Vu industrial LCD monitors for use in demanding applications. Consequently, every TRU-Vu monitor utilizes industrial-grade components . We provide high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Lastly, our 3-Year Warranty guarantees you of reliable worry-free operation. We also have the service to back it up.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE RIGHT DISPLAY
We offer over 540 LCD monitors and touch screens on our site. Selecting the ideal equipment or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you filter by your own specific search requirements.
Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call (847) 259-2344 today to speak with one of our specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!
If you prefer, fill out a quick form with your requirements. We will be happy to guide you to the proper models that will perform best.
Scroll left & right to view full table.
|LCD Panel||10.4” Color LCD; LED Backlights|
|Resolution||800 x 600 (SVGA)||1024 x 768 (XGA)|
|Viewable Area||8.31” (W) x 6.24” (H) (211.2 x 158.4 mm)|
|Pixel Pitch||0.264 mm|
|Brightness||400 nits||470 nits|
|Viewing Angle||160º (H) x 130º (V)||178º (H) x 178º (V)|
|Response Time||15 msec||30 msec|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, DVI||VGA, S-Video & Composite (BNC) NTSC/PAL Auto-Detect||VGA, Composite BNC Loop-Thru, NTSC/PAL Auto-Detect|
|Power Requirement||12-24 VDC|
(2.5 mm Barrel Plug)
|12-24 VDC / 90-240 VAC with included AC adaptor||12-36 VDC
(2.1 mm Barrel Plug)
|Power Consumption||10.4W (866 mA @ 12 VDC)|

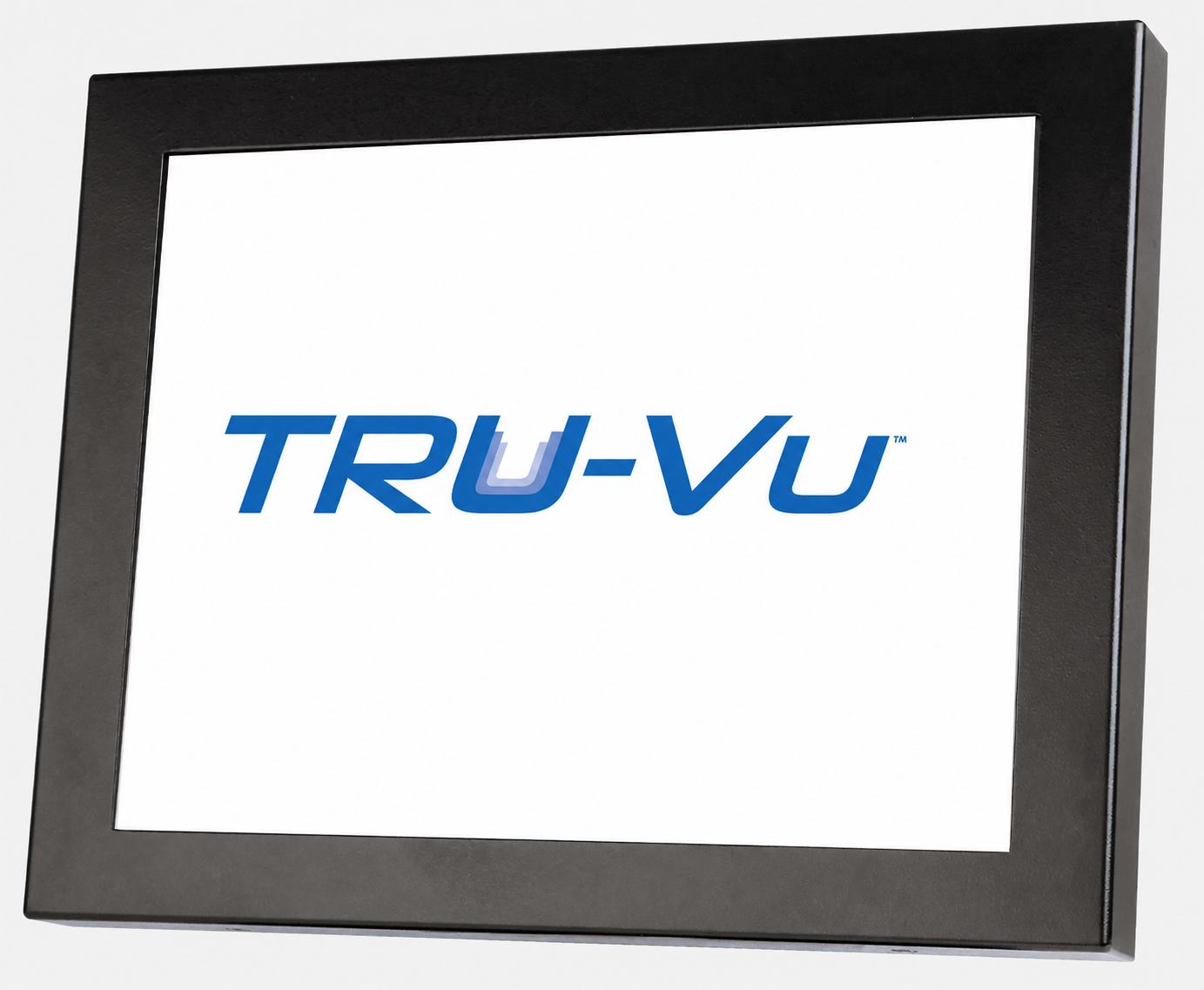

|Mounting||75 x 75 mm Rear VESA Mount Holes|
|Operating Temperature||-22° to +176°F (-30° to +80°C)|
|Humidity||5 - 90% RH|
|Shock||50G, 20ms, Half-sine wave|
|Vibration||1.5G (10-200 Hz, P-P) 30 mins./axis (X,YZ)|
|Dimensions||10.13” (W) x 7.96” (H) x 1.73” (D) (257.4 x 202.2 x 44 mm)|
|Weight||3.90 lbs. (1.77 kg)|
Specifications subject to change without notice.
- 90-240 VAC Power Adapter and Pigtail (VMOB-10.4S-24 and VMOB-10.4B-24)
- Pigtail For 12-28 VDC or 12-36 VDC Operation
- 90-240 VAC Locking Power Adapter (VMOB-10.4C-24)
- ove OSD Control Buttons onto Front Bezel
- Dual BNC Inputs
- Open-Frame Configuration
- Private Label
- Waterproof Enclosure
- Panel Mount
- Other Customer – Specific Modifications
