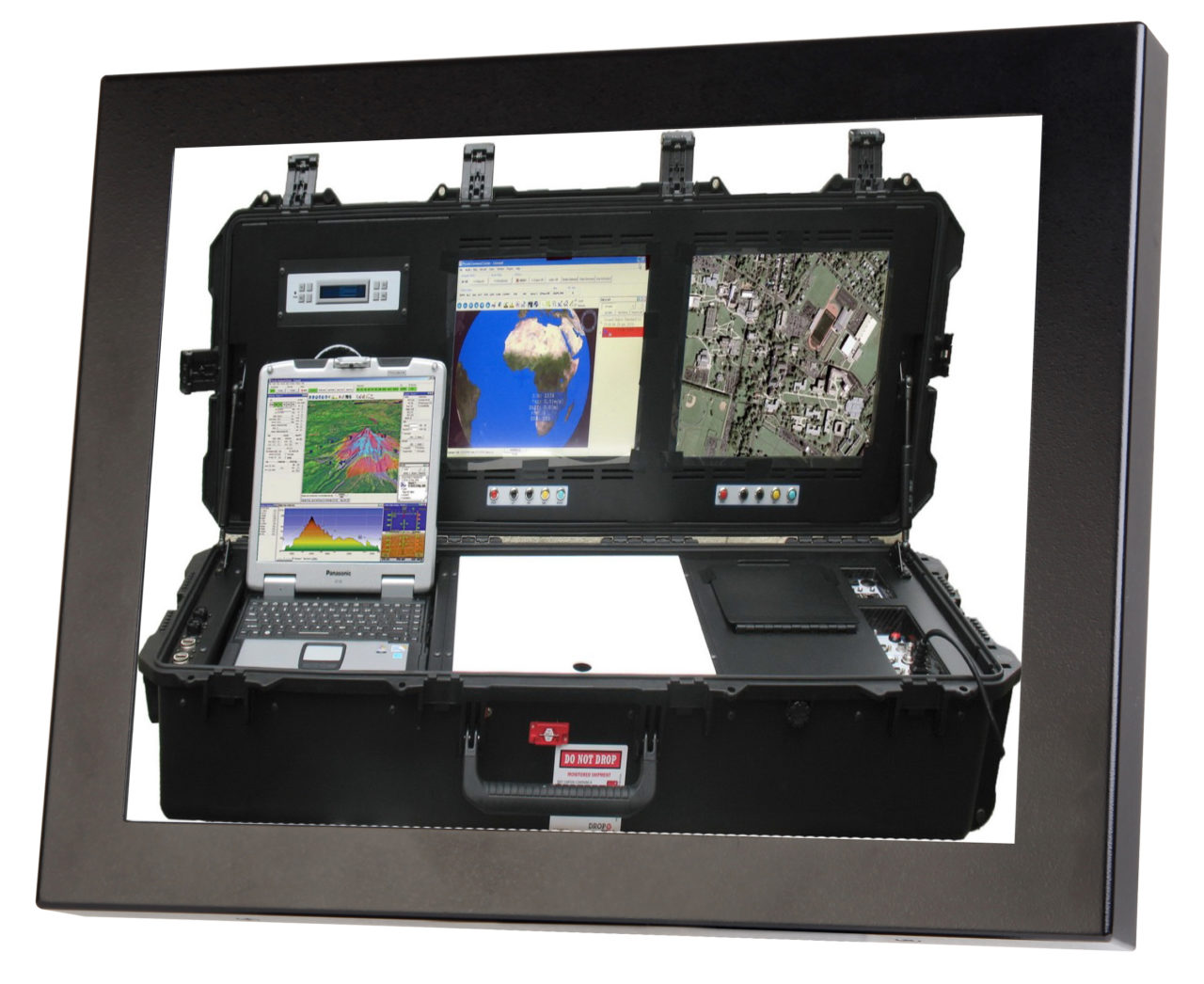

10.4” Sunlight Readable Optically Bonded Monitors
Fill out the form below to request a quote.
- Produces Clear, Sharp Images Even in Direct, Bright Sunlight
- 1,000 or 1,500 nits Brightness
- Optical Bonding Improves Image Quality
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- Lockable OSD (On-Screen Display) Controls
- Auto Re-Start After Power Loss
DISCOUNT AVAILABLE: SRMOB-10.4B and SRMOB-10.4S are on sale
1000 Nits Displays and 1500 Nits Displays
The SRMOB-10.4 Series are 10.4″ high brightness display with the addition of Optical Bonding. They feature at least 1000 nits brightness and a 4:3 aspect ratio. We design the SRMOB-10.4 Series 10.4″ 1000 nits display for use in direct sunlight. 2 of the models in this Series have a brightness of 1,500 nits! Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is an amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
The SRMOB-10.4 Series 10.4″ high brightness displays feature Anti-Reflective glass to protect the LCD panel. The glass also reduces unwanted surface reflections. However, the glass also introduces internal reflections. Therefore, TRU-Vu daylight readable monitors include Optical Bonding. This process injects an optical-grade resin into the air gap between the LCD panel and the glass, and completely fills the gap. The Optical Bonding eliminates the internal reflections and increases the contrast ratio, thereby greatly improving image quality. Optical Bonding also eliminates moisture and condensation beneath the glass.
RUGGED INDUSTRIAL MONITORS
These 10.4″ high brightness display are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged powder-coated steel enclosure ensures maximum shock and vibration resistance for this rugged 1000 nit or 1500 nit monitor.
EXTREME OPERATING TEMPERATURES
We design the SRMOB-10.4″ High Brightness Display Series to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to -22°F (-30°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 176°F (+80°C). The rugged powder coated steel enclosure assures these 10.4″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
Our 10.4″ Sunlight Readable LCD 1000 nit (or 1,500 nit) monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, aviation and entertainment benefit. They are also deployed in inspection, marine cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
In conclusion, see our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available.
Scroll left & right to view full table.
|LCD Panel||10.4” Color LCD; LED Backlights|
|Resolution||1024 x 768 (XGA)||800 x 600 (SVGA)|
|Viewable Area||8.31” (W) x 6.24” (H) (211.2 x 158.4 mm)|
|Brightness||1,500 nits||1,000 nits|
|Viewing Angle||178° (H) x 178° (V)||160° (H) x 130° (V)|
|Response Time||15 msec|
|Control||OSD (On-Screen Display) via Front Panel Pushbuttons||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, HDMI, Composite BNC Loop-Thru||VGA, Composite (BNC Loop-Thru); NTSC/PAL Auto-Recognition||VGA, S-Video, Composite BNC, NTSC/ PAL, Auto Recognition|
|Power Requirement||12-24 VDC|
(2.5 mm Locking Barrel Plug)
|12 VDC (2.1mm Barrel Plug);
90-240 VAC (via Included Power Brick)
|Mounting||75 x 75 mm Rear VESA Hole Mounts|
|Operating Temp.||-22° to +176° F (-30° to +80° C)|
|Humidity||5 - 90% RH|
|Shock||50G, 20ms, Half-sine wave|
|Vibration||1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)|
|Dimensions||10.13” (W) x 7.96” (H) x 1.73” (D)
(257.4 x 202.2 x 44 mm)
|Weight||3.86 lbs. (1.75 kg)|
Specifications subject to change without notice.
- 90-240 VAC Power Brick – (SRMOB-10.4S and SRMOB-10.4B)
- DC Power Pigtail with Locking 2.5mm Connector (SRMHXOB-10.4U and SRMOB-10.4N2-36 only)
- Automated Ambient Light Sensor
- NEMA 4 Waterproof Enclosure
- Move OSD Control Buttons onto Front Bezel
- DVI Video Input
- Dual BNC Inputs
- 11-36 VDC Operation
- Panel Mount
- Private Label
- Other Customer – Specific Modifications
