13.3" 1,500 nits Brightness Monitor
Fill out the form below to request a quote.
- 1,500 nits Brightness – Clear, Sharp Images Even in Direct Bright Sunlight
- Full HD Resolution: 1920 x 1080 (1080p/60)
- AC, DC or Battery-Powered
- Ambient Light Sensor Adjusts Screen Brightness Automatically
- Lockable On-Screen Display (OSD) Controls with Auto Re-Start After Power Loss
- TRU-Tuff Ensures Maximum Shock and Vibration Resistance
- Can Be Customized to Meet Your Needs
- 3-Year Warranty
13″ SUNLIGHT READABLE DISPLAYS
The SRMH-13.3 Series are 13.3″ 1500 nit monitors. They feature at least 1500 nits brightness and a 16:9 aspect ratio. We design the SRMH-13.3 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,500 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
RUGGED INDUSTRIAL MONITORS 1920 x 1080 (1080P/60 Full HD)
The SRMH-13.3 Series 13.3″ 1500 nit monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The powder-coated steel enclosure will ensure maximum shock and vibration resistance for this rugged 1500 nit monitor.
13″ MONITOR WITH EXTREME OPERATING TEMPERATURES
We design the SRMH-13.3″ 1500 nit monitors to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to 32°F (0°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 158°F (70°C). The rugged powder coated steel enclosure assures these 13.3″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
13″ MONITORS DEPLOYED WORLDWIDE
Our 13.3″ 1500 nit monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, Aviation and entertainment benefit. They are also found in inspection, surveying, cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
OUR TECHNICAL EXPERTS CAN GUIDE YOU TO THE BEST HIGH BRIGHTNESS 13″ MONITOR
See our full line-up of industrial-grade Sunlight Readable and Daylight Readable monitors and touchscreens. This highlights all of our high brightness monitors. With over 540 LCD monitors and touch screens on our site, selecting the ideal equipment, or touch screen solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you filter by your own important features. Shop by size 13 to 19″ Monitors or view only 24VDC monitors. Custom OEM LCD Displays and Private Label Monitors are also an option if you have very specific requirements. Visit our wide range of LCD monitor mounts and stands to complete your installation.
Scroll left & right to view full table.
|LCD Panel||13.3” AHVA LCD; LED Backlights|
|Display Resolution||1920 x 1080 (1080P/60 Full HD)|
|Viewable Area||11.55” (W) x 6.50” (H) (293.472 x 165.078 mm)|
|Display Colors||16.2 M|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||25msec Trf|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, HDMI, Composite (BNC Loop-Thru)||VGA, HDMI, DisplayPort|
|Power Requirement||12 VDC 2.1 mm Plug (90-240 VAC via Included Power Brick)||12 VDC, 90-240 VAC or via Li-On
|Mounting||100 x 100mm Rear VESA Mount Holes|
|Operating||32° to 158° F / 0° to +70° C|
|Shock||50 G (20 msec, 1/2 sine)|
|Vibration||1.5G RMS 10-200 HZ|

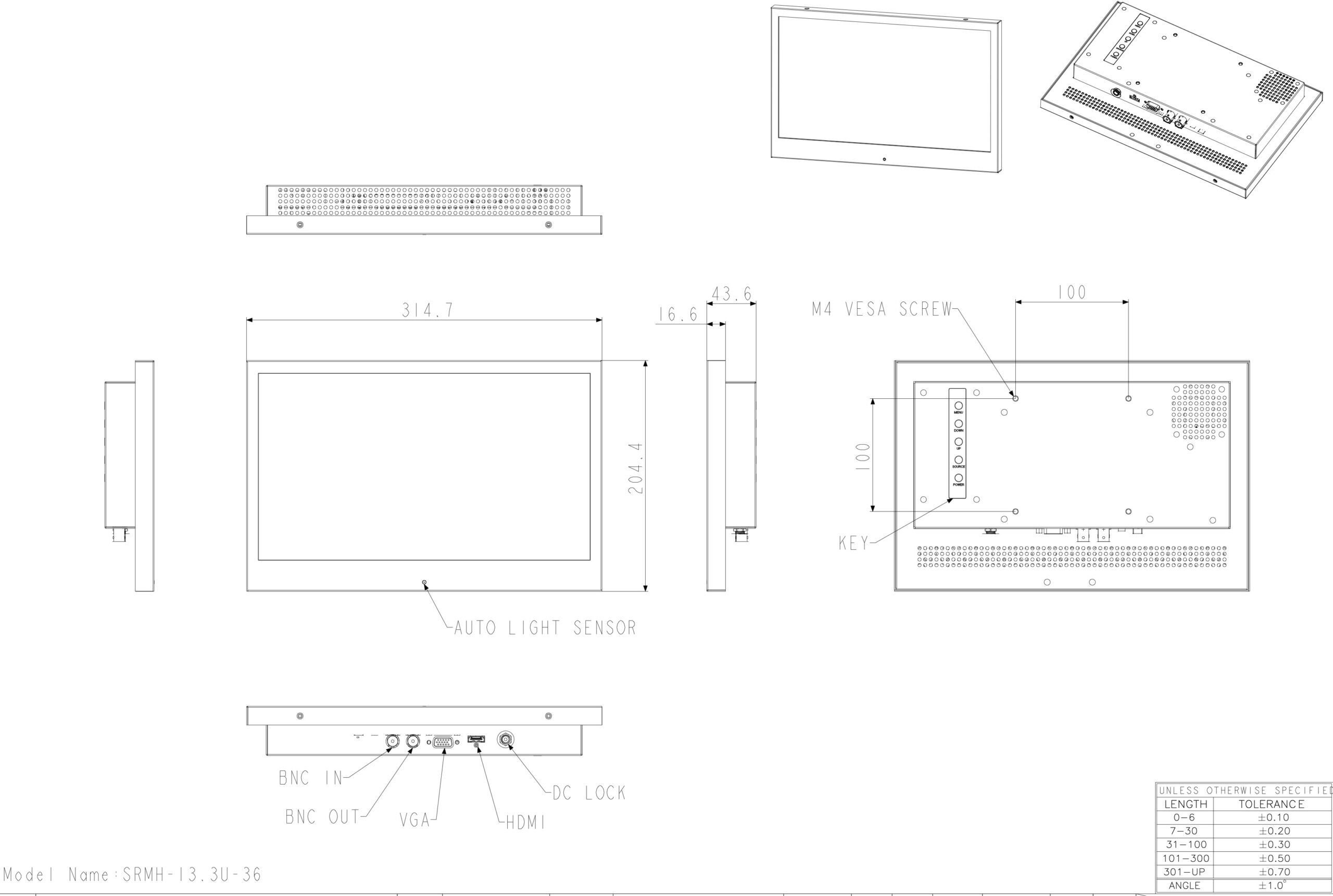

|Dimensions||12.39” (W) x 7.98” (H) x 1.46” (D) (314.7 x 202.6 x 37 mm)||TBD|
|Weight||4 lbs (1.81 kg)||TBD|
Specifications subject to change without notice.
- 90-240 VAC Power Brick (SRMH-13.3U Only)
- HDMI Cable
- VGA Cable
- Li-On Battery (SRMH-13.3R-B Only)
- Battery Charger (SRMH-13.3R-B Only)
- DisplayPort Input
- DVI Input
- 24 VDC Operations
- Stainless Steel NEMA 4X Waterproof Enclosure
- Protective Anti-Reflective Glass
- Tabletop Base
- Wall Mount Bracket
- Panel Mount
- Other Customer – Specific Modifications
