8.4" High Brightness Display
Fill out the form below to request a quote.
- Produces Clear, Sharp Images Even in Direct, Bright Sunlight
- 1,000 or 1,500 nits Brightness
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- Lockable OSD (On-Screen Display) Controls
- Available NEMA 4 Waterproof Enclosure (Front Face)
- Auto Re-Start After Power Loss
DISCOUNT AVAILABLE: SRM-8.4B is on sale
HIGH BRIGHTNESS DISPLAYS

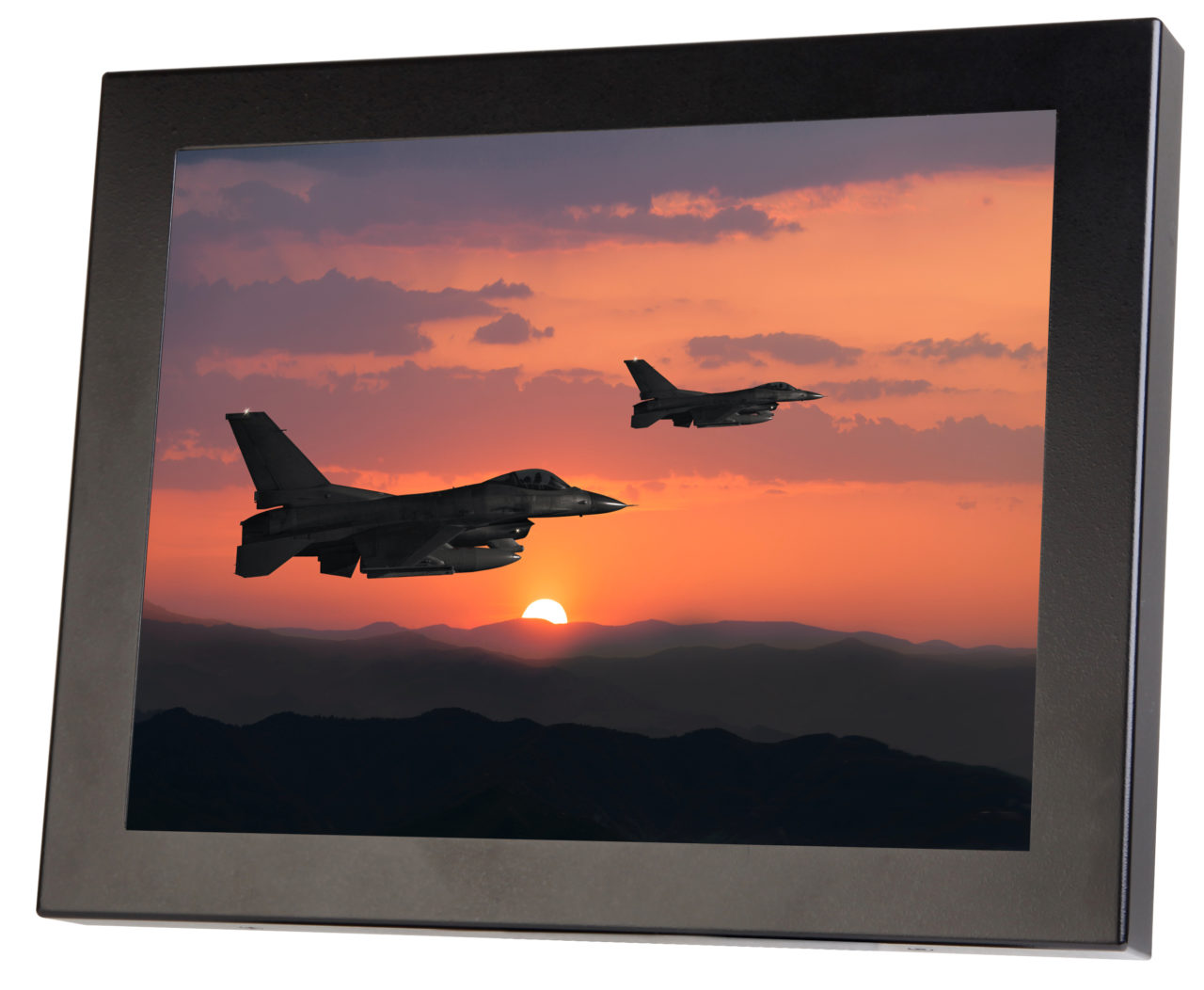

The SRM-8.4 Series are 8.4″ High Brightness Displays. They feature at least 1000 nits brightness and a 4:3 aspect ratio. We design the SRM-8.4 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. The SRMH-8.4B-24 8.4″ LCD high brightness model has 1,500 nits brightness! Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen. This 1000 nit monitor has a 4:3 aspect ratio monitor.
RUGGED 8.4″ LCD MONITORS
The SRM-8.4 Series Sunlight Readable monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The powder-coated steel enclosure will ensure maximum shock and vibration resistance for this rugged 1000 nit monitor.
8.4″ SUNLIGHT READABLE MONITORS WITH EXTREME OPERATING TEMPERATURES
We design the SRM-8.4″ High Brightness Display Series to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, some of these monitors will operate in temperatures down to -22°F (-30°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 185°F (85°C). The rugged powder coated steel enclosure assures these 8.4″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
1000 NIT MONITORS DEPLOYED WORLDWIDE
Our 8.4″ LCD Sunlight Readable 1000 nit monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, Aviation and entertainment benefit. They are also found in inspection, surveying, cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
In conclusion, see our full line-up of industrial-grade Sunlight Readable and Daylight Readable options and models. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available. See our full line of 24VDC displays, or shop by size of 7 to 12″ industrial monitors. View all monitors and touch screens on sale.
Scroll left & right to view full table.
|LCD Panel||8.4” Color LCD;LED Backlights|
|Resolution||800 x 600 (SVGA)|
|Viewable Area||6.71” (W) x 5.03” (H) (170.4 x 127.8 mm)|
|Pixel Pitch||0.213 mm|
|Brightness||1,500 nits||1,000 nits|
|Viewing Angle||160° (H) x 160° (V)|
|Response Time||30 msec|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, Composite BNC Loop Thru, NTSC/PAL Auto-Recognition||VGA, HDMI, Composite BNC Loop-Thru||VGA, S-Video, Composite BNC NTSC/PAL|
|Power Requirement||12 - 24 VDC (Locking Power Connector)||12 VDC (2.1 mm Barrel Plug); 90-240 VAC via Included Power Brick|
|Mounting||75 x 75 mm Rear VESA Hole Pattern|
|Operating Temperature||-22˚ to + 185˚F (-30˚|
|-22˚ to +140˚F (-30˚ to +60˚C)|
|Shock||50G, 20ms, Half-sine wave|
|Vibration||1.5G (10-200 Hz, P-P) 30 mins./axis (X,Y,Z)|
|Dimensions||8.74” (W) x 6.30” (H) x 1.66” (D) (222 x 160 x 42.20 mm)|
|Weight||2.5 lbs. (1.17 kg)|
Specifications subject to change without notice.
- 90-240 VAC Power Brick (SRM-8.4B, SRM-8.4U and SRM-8.4S Only)
- Automated Ambient Light Sensor
- Open-Frame Configuration
- Panel Mount
- 1024 x 768 Resolution
- Optical Bonding
- Protective/Anti-Reflective Glass
- Private Label
- Move OSD Control Buttons onto Front Bezel
