32" sunlight readable LCD
Fill out the form below to request a quote.
- 1,000 or 1,500 nits Brightness
- Full HD Resolution 1920 x 1080
- TRU-Tuff Treatment for Maximum Shock/Vibration Resistance
- Auto Re-Start After Power Loss
- Picture-In-Picture and Split-Screen
- Lockable On-Screen Display (OSD) Controls
- Can Be Customized to Meet Your Needs
- 3-Year Warranty
High Brightness Monitors
The SRM-32 Series are 32″ sunlight readable LCDs. They feature at least 1000 nits brightness. The SRMH-32E-24 produces 1,500 nits brightness! It is a 16:9 aspect ratio with full HD resolution. We design the SRM-32 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness, and up to 1,500 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen. For longer transmission distances, the SRM-32Z features an HD-SDI input.
RUGGED INDUSTRIAL DISPLAYs
The SRM-32 Series Sunlight Readable LCD are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged powder coated steel enclosure option will ensure maximum shock and vibration resistance for this rugged high bright monitor. It is also available in an aluminum enclosure.
EXTREME OPERATING TEMPERATURES
We design the 32″ sunlight readable LCD to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, some of these monitors will operate in temperatures down to 32°F (0°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 158°F (70°C). The rugged powder coated steel enclosure option assures these 32″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
Our 32″ high bright displays have been deployed in a wide range of demanding industries. For example, military, law enforcement, manufacturing plants benefit from high bright screens. They are also found in Amusement parks, sports stadiums, mass transit, and construction & heavy equipment. Additionally, see how digital signage and museums also enjoy TRU-Vu displays. Additionally, You may also see 27′” high brightness displays in popular kiosk displays prominently.
TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
In conclusion, see our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available.
Scroll left & right to view full table.
|LCD Panel||32" Color MVA Panel|
|Display||1920 x 1080 (Full HD)|
|Viewing Area||27.50” (W) x 15.47”(H) (698.4 x 392.85mm)|
|Pixel Pitch||0.364mm x 0.364mm|
|Display Colors||16.7 Million|
|Brightness||1,000 nits||1,500 nits|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||8 msec (gray to gray)|
|Control||OSD (On-Screen Display) via Rear Panel Push Buttons or Remote Control||OSD (On-Screen Display) via Front Panel Push Buttons or Remote Control|
|Video Inputs||VGA, HDMI, HD-SDI|
Loop-Thru, BNC Loop- Thru
|VGA, HDMI, DisplayPort||HDMI (x2),|
|Ambient Light Sensor||Optional||Standard||Optional|
|Power Requirement||24 VDC or 90-240 VAC||90 -240 VAC||24VDC|
|Power Consumption||100 Watts|
|Enclosure||Black Powder-Coated Steel||Aluminum||Black Powder-Coated Steel|
|Mounting||Rear VESA Mounting 100x100mm/200x200mm|
|Operating Temperature||32° to 122°F ( 0° to 50°C)||32° to 158°F ( 0° to 70°C)||32° to 140°F ( 0° to 60°C)|
|Shock||50 G (11 msec 1/2 sine)|
|Vibration||1.5 G RMS 10-300Hz|

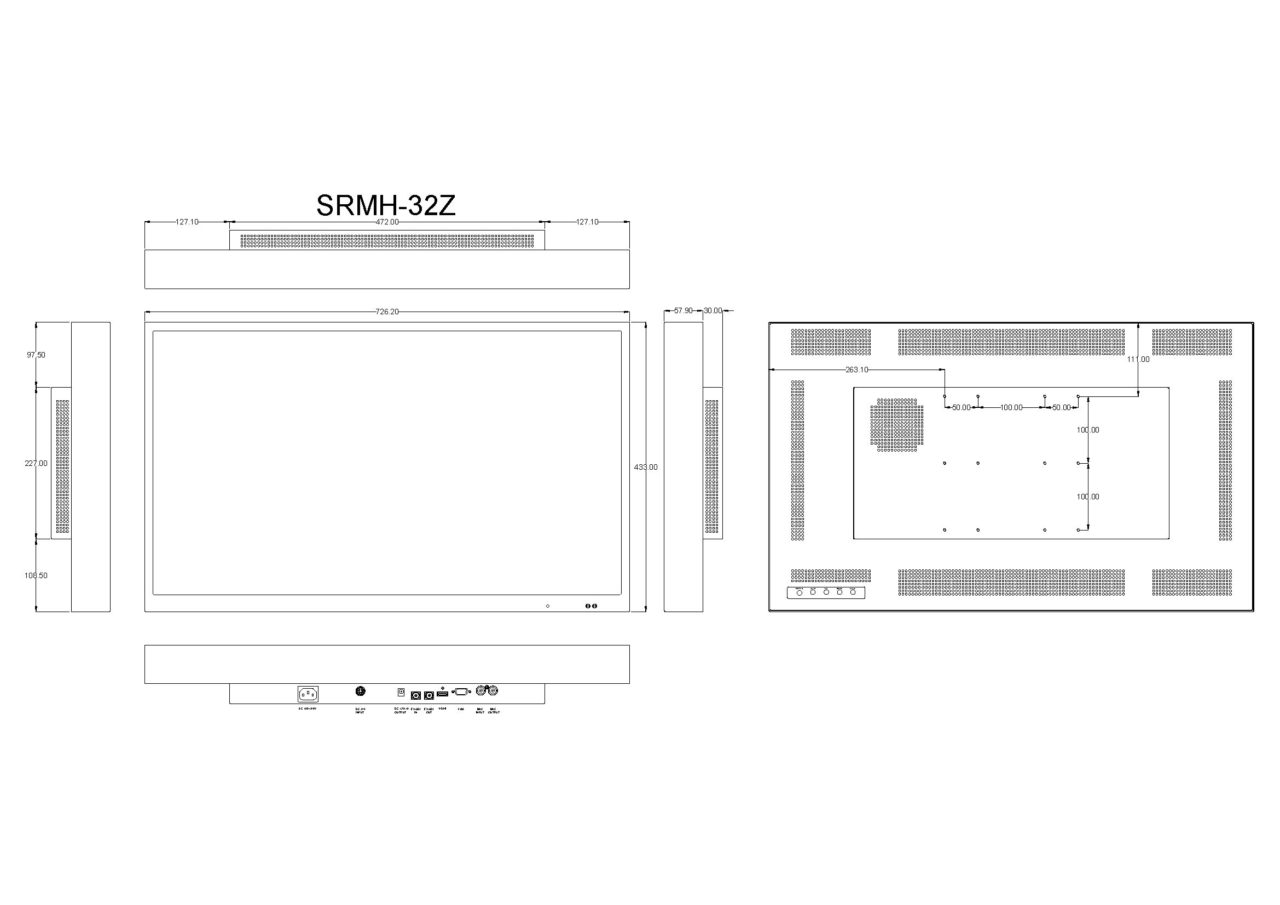

|Dimensions||28.70” (W) x 17.04” (H) x 2.39” (D) (729 x 433 x 60.90 mm)|
|Weight||32 lbs. (14.5 kg)||TBD||32 lbs. (14.5 kg)|
Specifications subject to change without notice.
- AC Power Cord (Except SRMH-32E-24)
- Tabletop Stand (SRM-32D Only)
- VGA Cable (SRM-32D Only)
- 4-Pin Power Pigtail Cable (Except SRM-32E)
- Remote Control
- Internal Speakers
- Protective/Anti-Reflective Glass
- Open-Frame Configuration
- Waterproof Enclosure
- Ambient Light Sensor
- Dim-to-Black Hotkeys
- Private Label
- Other Customer – Specific Modifications
