24" sunlight readable monitor
Fill out the form below to request a quote.
- High Brightness Sunlight Readable Display
- 1,000 nits or 1,500 Nits Brightness
- Full HD Resolution: 1920 x 1080 (1080p/60)
- Dual Speakers
- Auto Re-Start After Power Loss
- Optional Automatic Ambient Light Sensor
- Lockable On-Screen Display (OSD) Controls
- Can Be Customized To Meet Your Needs
- 3 Year Warranty
High Brightness Displays

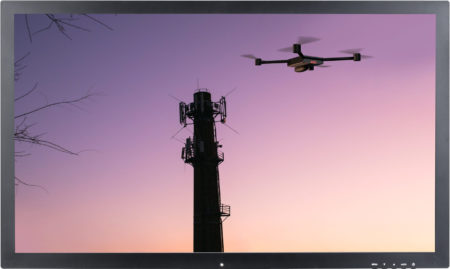

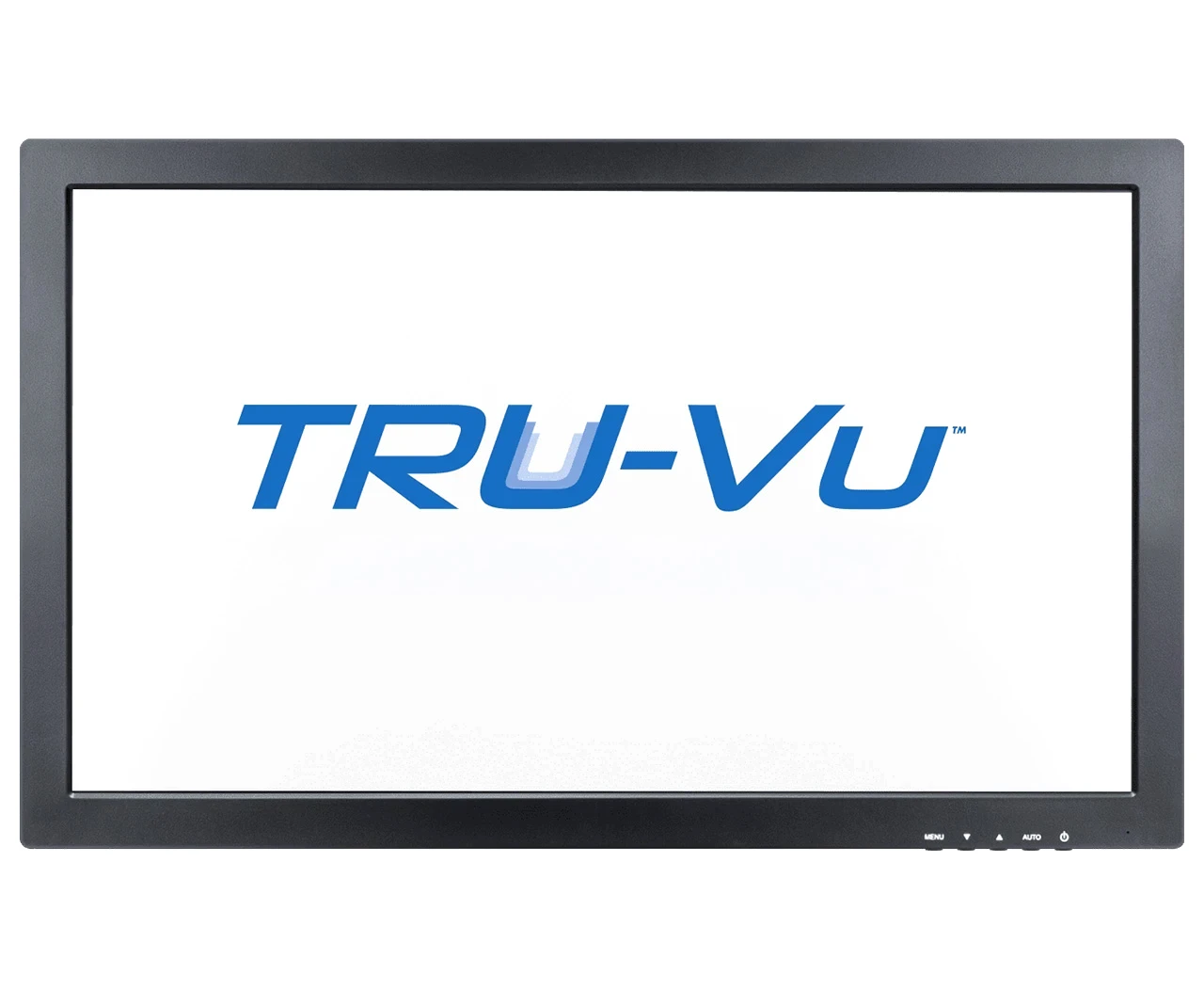

The SRM-24 Series are 24″ sunlight readable monitors. They feature at least 1000 nits brightness and up to 1500 nits brightness. It is a 16:9 aspect ratio with full HD resolution. We design the SRM-24 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. The SRMH-24R model produces 1,500 nits brightness! In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
RUGGED INDUSTRIAL MONITORS
The SRM-24 Series Sunlight Readable monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The rugged ABS or powder coated steel enclosure option will ensure maximum shock and vibration resistance for this rugged high bright monitor.
EXTREME OPERATING TEMPERATURES
We design the 24″ sunlight readable monitor to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to -4°F (-20°C). They will also withstand brutal heat. Moreover, operating temperatures go up to 158°F (70°C). The ABS or rugged powder coated steel enclosure option assures these 24″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
Our 24″ sunlight readable monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, and entertainment benefit. They are also found in inspection, oil and gas, and transportation. Additionally, see how pipeline, manufacturing and drone industries also enjoy TRU-Vu displays. Additionally, You may also see 24′” high brightness displays in popular kiosk displays prominently.
TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
In conclusion, see our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available.
Scroll left & right to view full table.
|LCD Panel||24” MVA Panel; LED Backlights|
|Resolution||1920 x 1080 (1080p/60 Full HD)|
|Viewable Area||20.91” x 11.47”(H) (531.36 x 298.9 mm)|
|Display Colors||16.7 M|
|Brightness||1,000 nits||1,500 nits|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||25 ms Trf|
|Control||OSD (On-Screen Display) via Pushbuttons|
|Video Inputs||DVI-I, Composite BNC Loop-Thru||VGA, HDMI, DisplayPort|
|Audio||Dual Rear Speakers||Optional|
|Power Requirement||12 VDC (2.5 mm Barrel Plug); 90-240 VAC via Included Power Brick|
|Power Consumption||45 Watts|
|Enclosure||ABS||Powder Coated Steel||ABS|
|Mounting||100 x 100 mm / 200 x 100 Rear VESA Holes||Rear 100x100 VESA Holes||Rear VESA Holes or Included Tabletop Base|
|Operating Temperature||-4°F to +158°F (-20° to +70°C)|
|Humidity||5 - 90% RH|
|Shock||50G (20 msec, 1/2 sine) +/-X, +/-Y, +/-Z|
|Vibration||1.5G RMS, 10-200 Hz, 30 mins each Axis (X, Y, Z)|

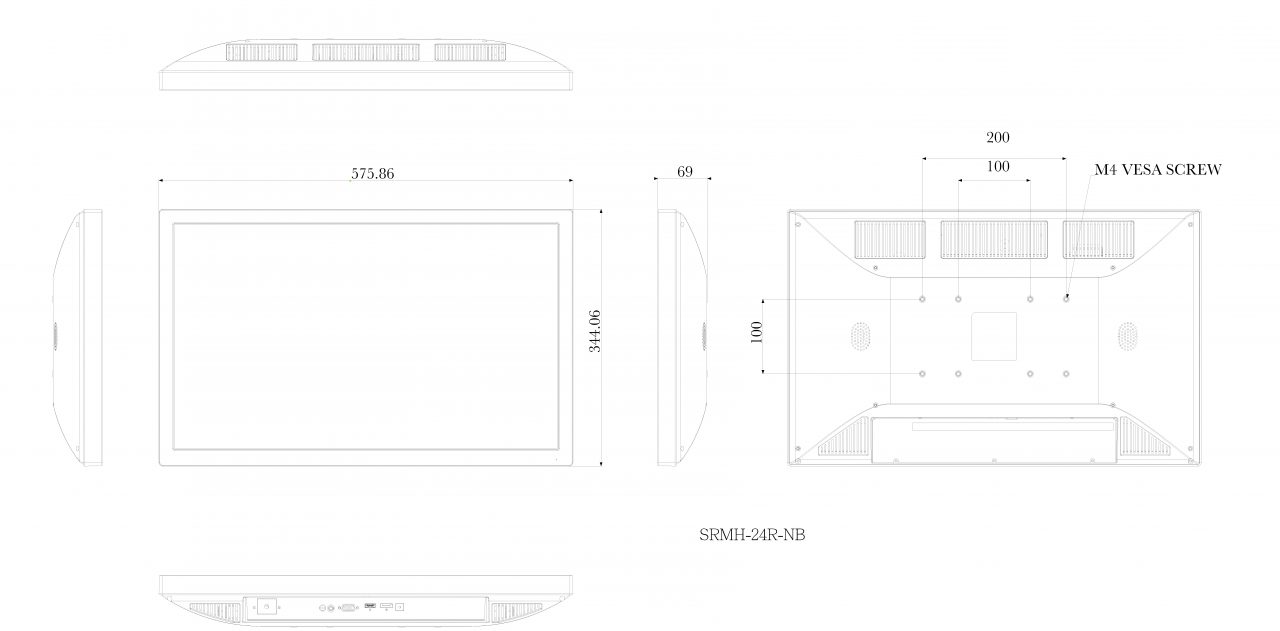

|Dimensions||22.68”(W) x 13.55”(H) x 2.44”(D) (576.1 x 344.3 x 62.10 mm)||TBD||22.68”(W) x 13.55”(H) x 2.44”(D) (576.1 x 344.3 x 62.10 mm)|
|Weight||12.75 lbs. (5.78 kg)||TBD||12.75 lbs. (5.78 kg)|
|Included Accessories||VGA, DVI, & Audio Cables; VGA/DVI Adapter, Tabletop Base, AC Power Supply||Audio Cable, VGA & HDMI Cables, AC Power Supply||VGA & HDMI Cables; Tabletop Base, AC Power Supply|
Specifications subject to change without notice.
- 90-240 VAC Power Brick
- VGA Cable
- Audio Cable
- DVI Cable
- Tabletop Base (SRMH-24R only)
- Tabletop Base
- Remote Control
- Optical Bonding & Anti-Reflective Glass
- 24 VDC Operation
- Open-Frame Configuration
- Touch Screen
- Waterproof Enclosure
- Ambient Light Sensor
- Wall Mount Bracket
- Other Customer – Specific Modifications
