10" sunlight readable monitor
Fill out the form below to request a quote.
- 10.1” Widescreen 16:9 LCD Monitor
- Display Resolution: up to 1024 x 600
- Brightness: 1,000 Nits
- TRU-Tuff Ensures Maximum Shock/Vibration Resistance
- Video Inputs: VGA, DVI, HDMI, DisplayPort, HD-SDI, and Composite (BNC)
- Rugged Steel Enclosure
- Can Be Customized To Meet Your Needs
- Auto Re-Start After Power Loss
High Brightness Displays

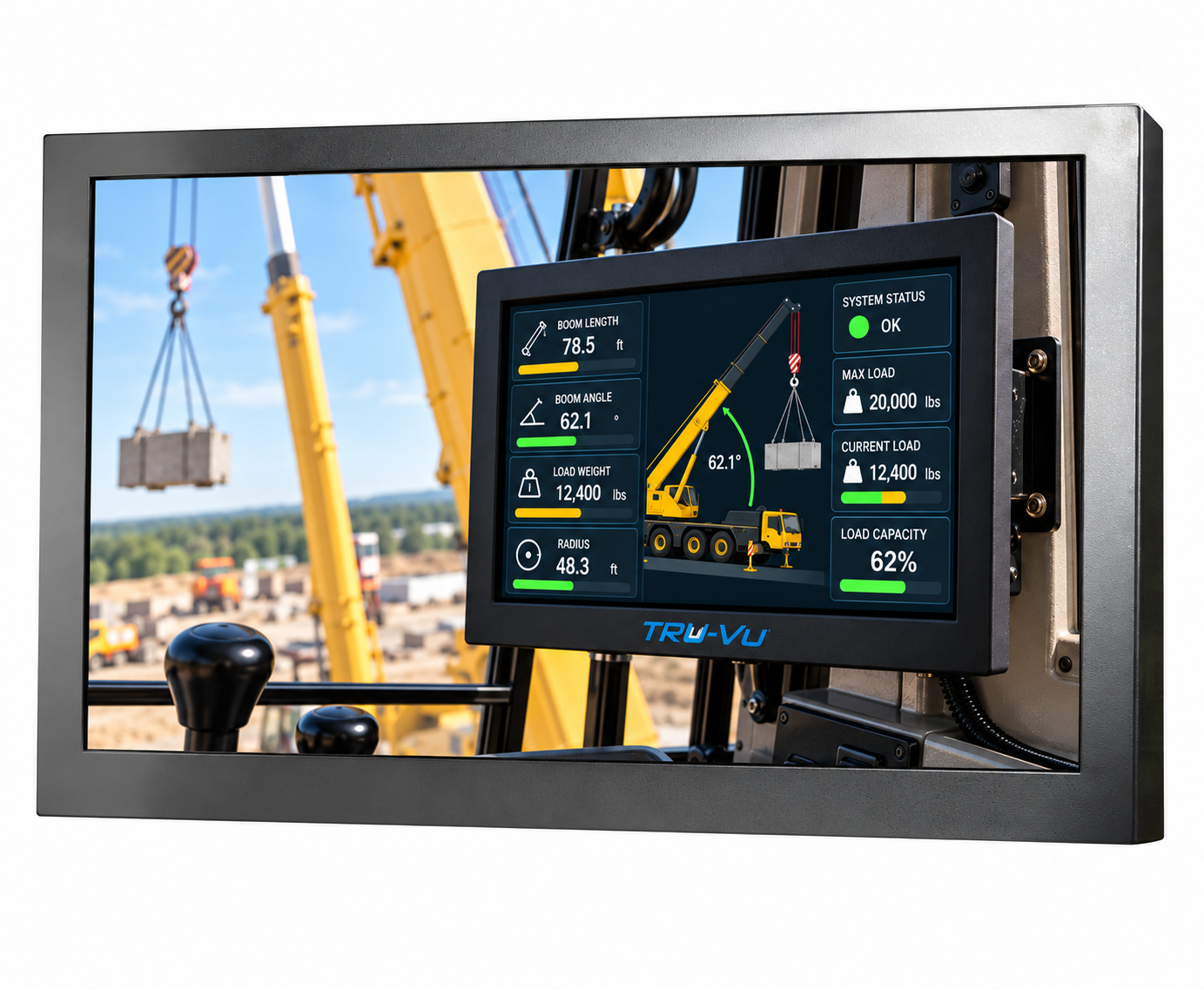

The SRM-10.1 Series are 10″ sunlight readable monitor. They feature at least 1000 nits brightness and a 16:10 aspect ratio. We design the SRM-10.1 Series monitors for use in direct sunlight. Consequently, they are also perfect for other high ambient-light conditions. They utilize state-of-the-art LED backlights. The models in this series produce at least 1,000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard monitors. For example, standard monitors are only 200-300 nits brightness. Therefore, the result is amazingly bright screen. This will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen. For longer transmission distances, the SRMOB-10.1Z features a HD-SDI input.
RUGGED INDUSTRIAL MONITORS
The SRM-10.1 Series Sunlight Readable monitors are extremely rugged. For instance, we build them with true industrial-grade components. Furthermore, they receive our exclusive TRU-Tuff treatment. The TRU-Tuff process includes RTV silicone on all connections and critical components. Additionally, all wires are dressed, tie-wrapped and secured. Lastly, we apply ThreadLock to all screws. The powder-coated steel enclosure will ensure maximum shock and vibration resistance for this rugged 1000 nit monitor.
EXTREME OPERATING TEMPERATURES
We design the SRM-10.1″ High Brightness Display Series to operate in nearly any environmental conditions. Whether in frigid conditions or blazing heat, these sunlight displays will survive and thrive. To clarify, these monitors will operate in temperatures down to 14°F (-10°C) . They will also withstand brutal heat. Moreover, operating temperatures go up to 140°F (60°C). The rugged powder coated steel enclosure assures these 8.4″high brightness displays will provide years of reliable imaging performance. Specifically, typical MTBF for these monitors is 50,000 hours.
Our 10.1″ Sunlight Readable LCD 1000 nit monitors have been deployed in a wide range of demanding industries. For example, military, law enforcement, Aviation and entertainment benefit. They are also found in inspection, surveying, cranes, and transportation. TRU-Vu monitors are backed by our full 3-Year Warranty. This ensures you of many years of reliable service.
In conclusion, see our full line-up of industrial-grade Sunlight Readable and Daylight Readable. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available.
Scroll left & right to view full table.
|LCD Panel||10.1” Color TN Panel; LED Backlight|
|Resolution||1024 x 600||1280 x 800|
|Viewable Area||8.77”W x 4.93”H (222.75 x 125.28 mm)|
|Pixel Pitch||0.2088 mm||0.1695mm|
|Display Colors||16.2 M|
|Viewing Angle||140° (H) x 120° (V)||170°(H) x 170° (V)|
|Response Time||16 msec Trf|
|Control||OSD (On-Screen Display) via Rear Panel Pushbuttons|
|Video Inputs||VGA, DVI||VGA, HDMI, DisplayPort||VGA, HDMI,|
Composite (BNC Loop-Thru)
|VGA, HDMI, HD-SDI
Loop-Thru, Composite BNC Loop-Thru
|Power Requirement||12 VDC (2.1 mm|
Barrel Plug) ; 90-240 VAC via Included Power Adapter
VAC/ Li-On Battery
|12 VDC (2.1 mm Barrel Plug) ;
90-240 VAC via Included Power Adapter
|Mounting||75 x 75 mm Rear VESA Mount Holes|
|+14° to +140° F (-10° to +60° C)|
|Shock||100G, 6ms, Half-sine wave|
|Vibration||10-55 Hz, l.5mm Stroke 2 hrs/axis (X,Y,Z)|

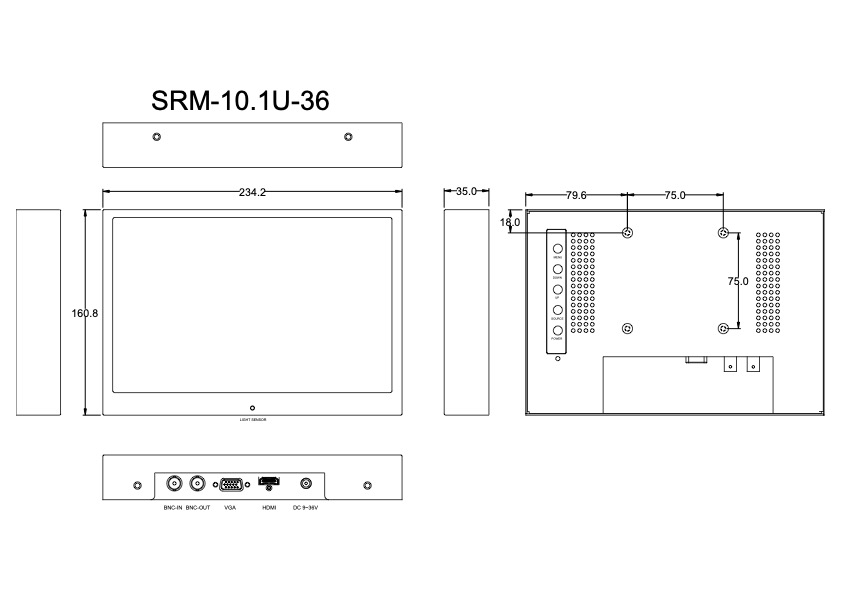

|Dimensions||9.37” (W) x 6.21” (H) x 1.18” (D) (238.1 x 157.7 x 30mm)|
|Weight||2.31 lbs. (1.05 kg)|
Specifications subject to change without notice.
- VGA Cable
- DVI Cable (C Model only)
- HDMI Cable (R and U Models)
- 90-240 VAC Power Adapter
- Resistive or P-Cap Touch Screen
- Optical Bonding
- Protective/Anti-Glare Glass
- 11-36 VDC Operation
- NEMA 4X Waterproof Enclosure
- Open-Frame Configuration
- Wall Mount Brackets
- Other Custom-Specific Modifications
