Low Profile Wall Mount Bracket for Monitor

  • Two Piece Design for Quick and Easy Installation
  • Mounts monitor only .0625″ (5/8″) away from the surface
  • VESA 75mm and 100mm Compliant
  • Includes Wall Quick-Mount Plate, Monitor Plate and M4x10 Screws
  • UL Listed
  • Recommended for use with TRU-Vu Monitors up to 44 lbs.

Low Profile Monitor Wall Mount Bracket for monitors and touchscreens is a popular model. It is VESA 75mm and 100mm compliant and can mount the monitor only 5/8″ away from the surface. We recommend  our TRU-Vu slim mount monitor bracket for use with monitors up to 44lbs.  Learn more about VESA. View our associated products to choose the monitor or touchscreen for your application.

Material: Steel

Dimensions:  (Overall) 6.25″ x 5″ x 5″ (15.87 x 127 x 127 mm)                          UL Listed

Weight: 12 Lbs  (.544kg)

How Do I Mount My TRU-Vu Monitor?
  • Many of our monitors are supplied with a tabletop base.  (See the respective data sheet)
  • We offer optional tabletop bases and wall mount brackets for all monitors.  See our Mounting Brackets and Bases for more details and available styles.
  • All TRU-Vu monitors 8.4″ and larger have 4 industry-standard VESA screw holes for mounting.  These are arranged in a square pattern, 75 x 75 mm, 100 x 100 mm or 200 x 200 mm center-to-center.  Monitors from 8.4″ to 32″ use M4 screws.  They should sink into the monitor no more than 6-7 mm.  Monitors 42″ and larger use M6 screws.  They should sink into the monitor no more than 7 mm.  VESA mount hole patterns range from 100 x 100 mm to 200 x 200 mm.
  • CE-172 Installation Guide
Low Profile Monitor Wall Mount

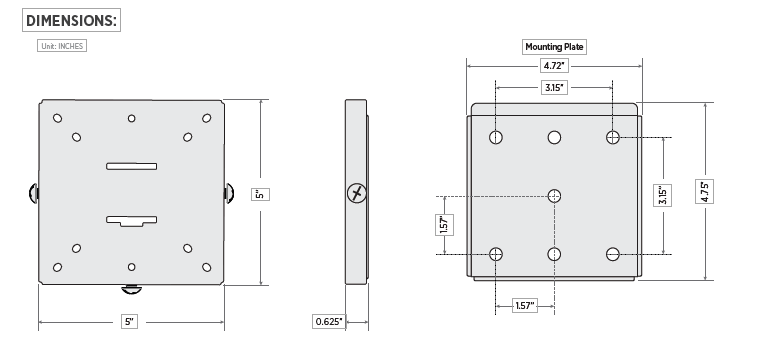

Dimensions (mm):

Technical Drawing of CE-172
