24" Medical Touch Screen Monitor
Fill out the form below to request a quote.
- 24” Medical-Grade HD Touch Screen LCD Monitors
- Projected Capacitive Touch Screen
- Zero-Bezel Design; All-Glass Front Simplifies Cleaning
- Meets UL 60601-1 Ver. 3
- Full HD Resolution: 1920 x 1080
- VGA, HDMI, DVI and DisplayPort Video Inputs
- Built-In Speakers and Auto Re-Start After Power Loss
- 3 Year Warranty
DISCOUNT AVAILABLE: Entire series on sale

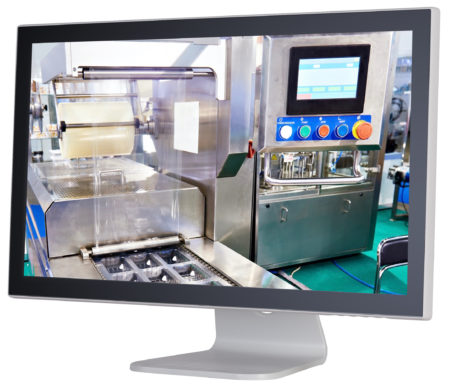

The TRU-Vu MMZBTP-24 Series is a 24” medical touch screen monitor. It conforms to UL 60601-1 Edition 3.1, and IEC 60601-1-2 4th Edition. Our 24″ medical touch screen display is ideal for hospital operating rooms, medical carts, medical imaging systems, fluoroscopy, endoscopy, OEM medical systems, PACS and other medical applications.
Optimal Image Quality
Our widescreen 24″ medical touch screen monitor provides 1080p, 1920 x 1080 Full HD resolution. The super-wide 178 x 178 viewing angles ensures clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 24″ medical-grade touch screen provides razor-sharp, flicker free images. This enables doctors and surgeons to make accurate, and timely, critical decisions. Fast response time and lag-free transmission of images ensure the most detailed images in the OR today.
Medical-Grade P-Cap Touch Screen
The projected capacitive touch technology enables multi-touch, with up to 10 simultaneous touch points. The P-Cap touch screen can be activated via exposed fingers, or with a surgical glove. The screen is unaffected by dirt, grease or moisture on the glass surface.
Bezel-Less Monitor, Fully flat Design
Our zero-bezel ABS enclosure features a single pane of glass across the entire front face of its 24″ medical-grade touch screen. Due to the absence of any raised-edge bezel (frame) around the front edges, this touch screen is extremely easy to clean (see Cleaning Instructions Guide) and improves overall hygiene. The bezel-less monitor enclosure eliminates the build-up of germs and contamination, as there is no bezel for them to reside beneath, as with standard enclosures. The rounded corners of the housing add a measure of comfort and safety, as well as improved aesthetics.
This lightweight surgical display features rear VESA mount holes which enables easy mounting via spring arms, surgical booms or tabletop stands. Rear speakers are standard and can provide useful tones or alarms.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE RIGHT MEDICAL DISPLAY
With over 540 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs. TRU-Vu medical displays will help provide crystal-clear images for your medical projects. Call (847) 259-2344 today to speak with one of our medical monitor specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be everything you had hoped it would for your medical imaging system.
If you prefer, fill out a quick form with your requirements, and our specialists will guide you to the proper models that will work best.
All TRU-Vu Medical Grade monitors utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. Therefore, this ensures superior image quality, improved performance and greater durability.
Scroll left & right to view full table.
|LCD Panel||24” Color LCD; LED Backlights|
|Touch Screen||Projected Capacitive|
|Resolution||1920 x 1080 (Full HD)|
|Viewable Area||20.92” x 11.77”||(531.4 x 298.9 mm)|
|Display Colors||16.7 Million|
|Viewing Angle||178° (H) x 178° (V)|
|Response||12 msec||25 msec Trf|
|Control||OSD (On-Screen Display) Buttons|
|Video Inputs||VGA, HDMI, DisplayPort||VGA & DVI-D|
|Audio||Dual Rear Speakers|
|Power Requirement||12 VDC / 90-240 VAC with|
External Medical-Grade Power Supply
|100-240 VAC, 50/60 Hz with
Internal Medical-Grade Power Supply and Green-Dot Power Cord
|Plug & Play||DDC 1/2B|
|Enclosure||ABS: Zero-Bezel Design|
|Mounting||Included Tabletop Base or 100x100mm/ 200x100 Rear VESA Mount Holes|
|32° to 122° F (0° to 50° C)|
|Shock/||50G (20 msec, 1/2 sine); 1.5G RMS 10-200HZ, 30 minutes each (X,Y,Z)|
|Certifications||UL 60601-1 Ver. 3, CAN/CSA-22.2 No 601.1-M90: 2005; IEC 60950-1, EN 60601-1, IEC 60601-1; CE: EN 60601-1; FCC-B; roHs Compliant|
|Dimensions||22.6” (W) x 13.5” (H) x 2.4” (D)||(576.14 x 344.34 x 62.10 mm)|
|Weight||13.2 lbs.||(5.98 kg)|
Specifications subject to change without notice.
- Hospital-Grade Green-Dot Power Cord
- VGA Cable
- Audio Cable
- USB Cable
- HDMI Cable (“R” Version only)
- DisplayPort (“R” Version only)
- DVI Cable (“C” Version only)
- Tabletop Base
- External Medical-Grade AC Power Supply
- DICOM Part 14 GSDF Calibration
- Other Customer-Specific Modifications
