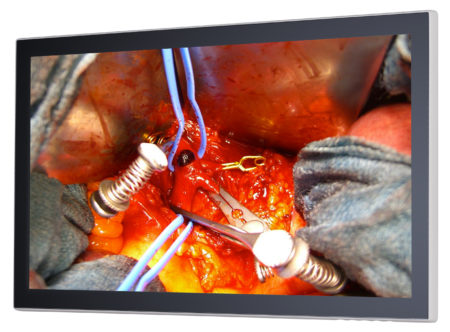

27” Medical Grade Monitors
Fill out the form below to request a quote.
- 27” Medical Monitor
- White ABS Enclosure; Bezel-Less Front Simplifies Cleaning
- Models meet UL 60601-1 Ver. 3.1 and/or IEC 60601-1 4th Edition
- Built-In Speakers
- Auto Re-Start After Power Loss
- 3-Year Warranty

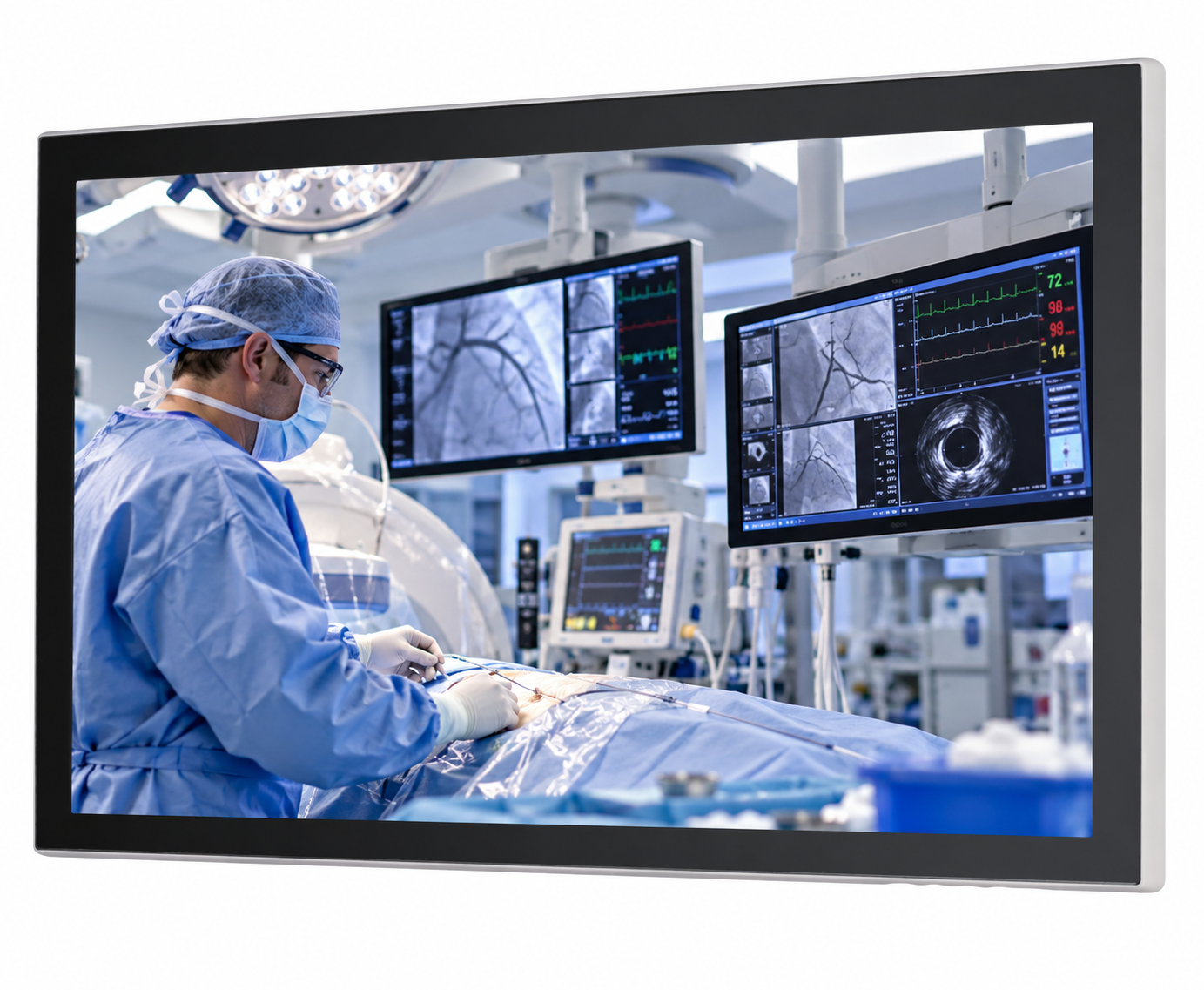

The TRU-Vu MMZB-27 Series are 27” medical monitors. The MMZB-27G-X conforms to UL 60601-1 Edition 3.1, and IEC 60601-1-2 4th Edition. The model MMZB-27G (with internal Medical-Grade power supply) was not submitted for UL approval, but meets CB, IEC and the other agencies shown on the spec sheet. Our 27″ medical display is ideal for hospital operating rooms, medical carts, medical imaging systems, fluoroscopy, endoscopy, OEM medical systems, PACS and other medical applications.
Optimal Image Quality
Our widescreen 27″ medical monitors provide 1080p, 1920 x 1080 Full HD resolution. The super-wide 178 x 178 viewing angles ensures clear, sharp images when viewed from nearly any angle. Thanks to its high resolution, brightness and high contrast ratio, our 27″ medical-grade display provides razor-sharp, flicker free images. This enables doctors and surgeons to make accurate, and timely, critical decisions. Fast response time and lag-free transmission of images ensure the most detailed images in the OR today.
Bezel-Less Monitor, Fully flat Design
Our zero-bezel ABS enclosure features a single pane of glass across the entire front face of its 27″ medical-grade display. Due to the absence of any raised-edge bezel (frame) around the front edges, this screen is extremely easy to clean (see Cleaning Instructions Guide) and improves overall hygiene. The bezel-less monitor enclosure eliminates the build-up of germs and contamination, as there is no bezel for them to reside beneath, as with standard enclosures. The rounded corners of the housing add a measure of comfort and safety, as well as improved aesthetics.
This lightweight surgical display features rear VESA mount holes which enables easy mounting via spring arms, surgical booms or tabletop stands. Rear speakers are standard and can provide useful tones or alarms.
OUR TECHNICAL EXPERTS ARE READY TO HELP YOU FIND THE RIGHT MEDICAL DISPLAY
With over 540 LCD monitors and touch screens on our site, selecting the ideal monitor solution may be a bit overwhelming. To help narrow-down the choices, check out our Advanced Search Tool. For example, this enables you to filter by your own specific requirements.
Remember, our team members are ready to help! We can determine the exact solution that will meet your specific needs. TRU-Vu medical displays will help provide crystal-clear images for your medical projects. Call (847) 259-2344 today to speak with one of our medical monitor specialists. Above all, we will listen. It’s one of the things we do best. Our professional advisors will ensure the monitor or touch screen you receive will be everything you had hoped it would for your medical imaging system.
If you prefer, fill out a quick form with your requirements, and our specialists will guide you to the proper models that will work best.
All TRU-Vu Medical Grade monitors utilizes industrial-grade components and high-end LCD panels not found in retail/consumer-grade monitors. Therefore, this ensures superior image quality, improved performance and greater durability.
Scroll left & right to view full table.
|LCD Panel||27” Color AMVA; LED Backlights|
|Resolution||1920 x 1080 (1080p/60)|
|Viewable Area||23.53” (W) x 13.23” (H) (597.6 x 336.15 mm)|
|Pixel Pitch||0.311 mm|
|Display Colors||16.7 M|
|Viewing Angle||178° (H) x 178° (V)|
|Response Time||12 msec Trf|
|Control||OSD (On-Screen Display) via Capacitive Buttons Under Front Edge|
|Video Inputs||DVI, HDMI, DisplayPort|
|Audio||Dual Rear Speakers|
|Power Requirement||100-240 VAC via Medical-Grade External Power Supply and Green Dot Power Cord||100-240 VAC via Medical-Grade Internal Power Supply and Green Dot Power Cord|
|Enclosure||White ABS; Zero-Bezel Design; IP52 Front; IP30 Rear|
|Mounting||100mm x 100mm Rear VESA Holes; Optional Tabletop Base|
|Operating Temperature||32˚ to 122˚F (-0 to 50˚C)|
|Shock / Vibration||50G Half-sine 20 msec ; 1.5G 10-200 Hz|
|Certifications||UL: ANSI/AAMI ES60601-1 (2005/(R)2012 + A1:2012, C1:2009/(R)2012 + A2:2010/(R)2012) |
Amendment 1; CAN/CSAC22.2 No. 60601-1:14 - Edition 3; CB: IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-6:2010, IEC 60601-1:2005/ AMD1:2012, IEC 60601-1:2005; FCC Part 18, Subpart C; CE: EN60601-1-2:2015; RoHS; REACH
|CB: IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-6:2010, IEC 60601-1:2005/ AMD1:2012, IEC 60601-1:2005; FCC Part 18, Subpart C; CE: EN60601-1-2:2015; RoHS; REACH|
|Dimensions||25.51” (W) x 15.23” (H) x 2.48” (D) (648 x 389 x 63mm)|
|Weight||14.7 lbs. (6.66kg)||TBD|
Specifications subject to change without notice.
- External Medical-Grade Power Supply with Green Dot Power Cord (MMZB-27G-X model)
- DICOM Part 14 GSDF Calibration
- Tabletop Base
- Other Customer-Specific Modifications
